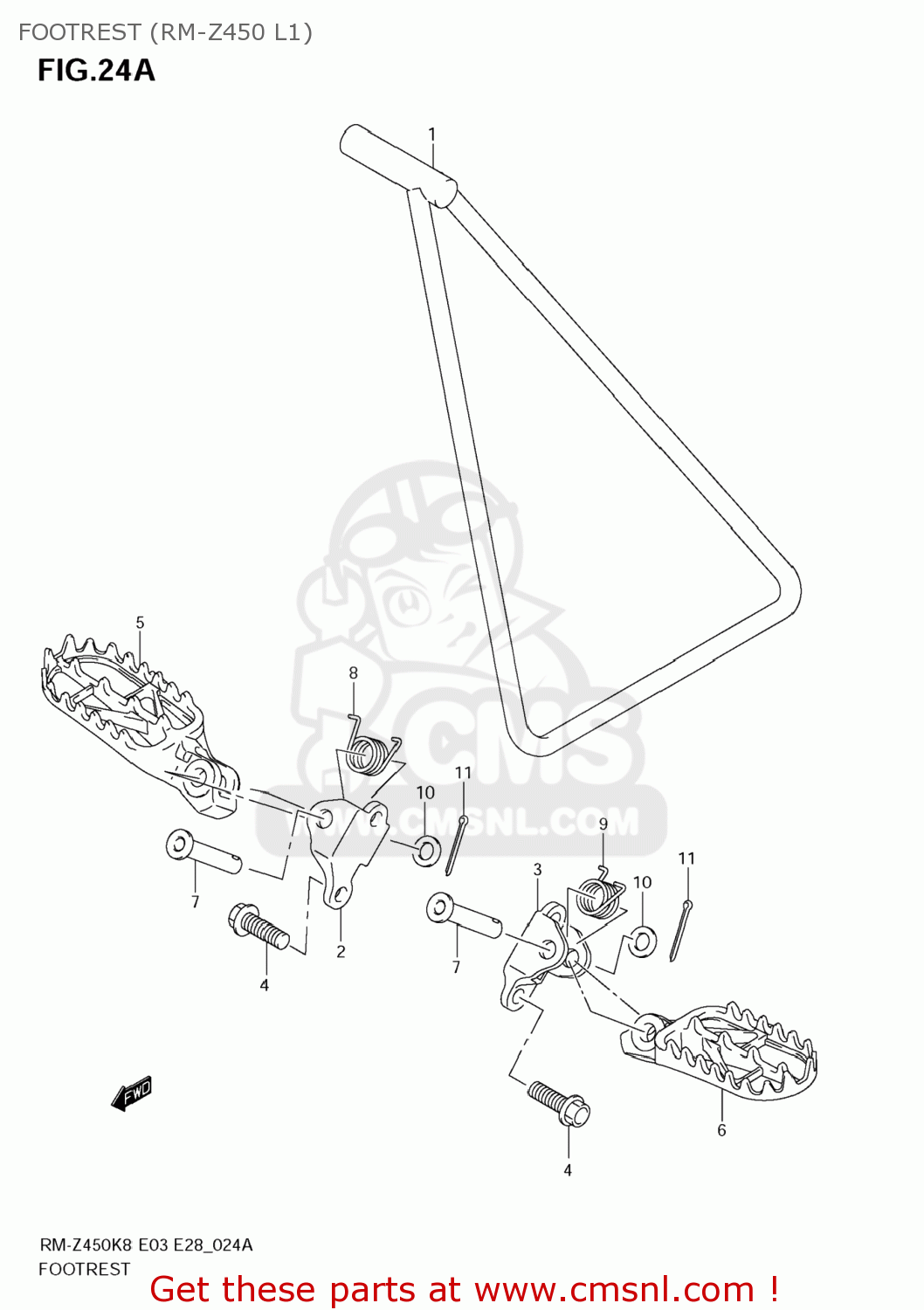

FOOTREST (RM-Z450 L1)

RM-Z450 2010 (L0) USA (E03) RMZ450 RM Z450

Footrest (rm-z450 l1) diagram RM-Z450 2010 (L0) USA (E03) RMZ450 RM Z450

FOOTREST (RM-Z450 L1) RM-Z450 2010 (L0) USA (E03) RMZ450 RM Z450

FOOTREST (RM-Z450 L1) RM-Z450 2010 (L0) USA (E03) RMZ450 RM Z450

prices are in EUR

ref

part #

description

quantity

1

4231028H00
ref: 1

STAND

€ 79.00

2

4185528H20
ref: 2

BRACKET,FOOTREST,R

€ 62.50

3

4186528H20
ref: 3

BRACKET,FOOTREST,L

€ 90.50

4

0910310415
ref: 4

BOLT(10X25)

€ 2.50

5

4355128H20
ref: 5

FOOTREST,R

€ 247.50

6

4356128H20
ref: 6

FOOTREST,L

€ 247.50

7

0920010022
ref: 7

PIN

€ 8.50

8

0944821009
ref: 8

SPRING

€ 6.50

9

0944821010
ref: 9

SPRING

€ 6.50

10

083220110B
ref: 10

WASHER

€ 2.50

11

041112520A
ref: 11

PIN

€ 2.00
