FOOTREST

RM-Z450 2012 (L2) USA (E03) RMZ450 RM Z450

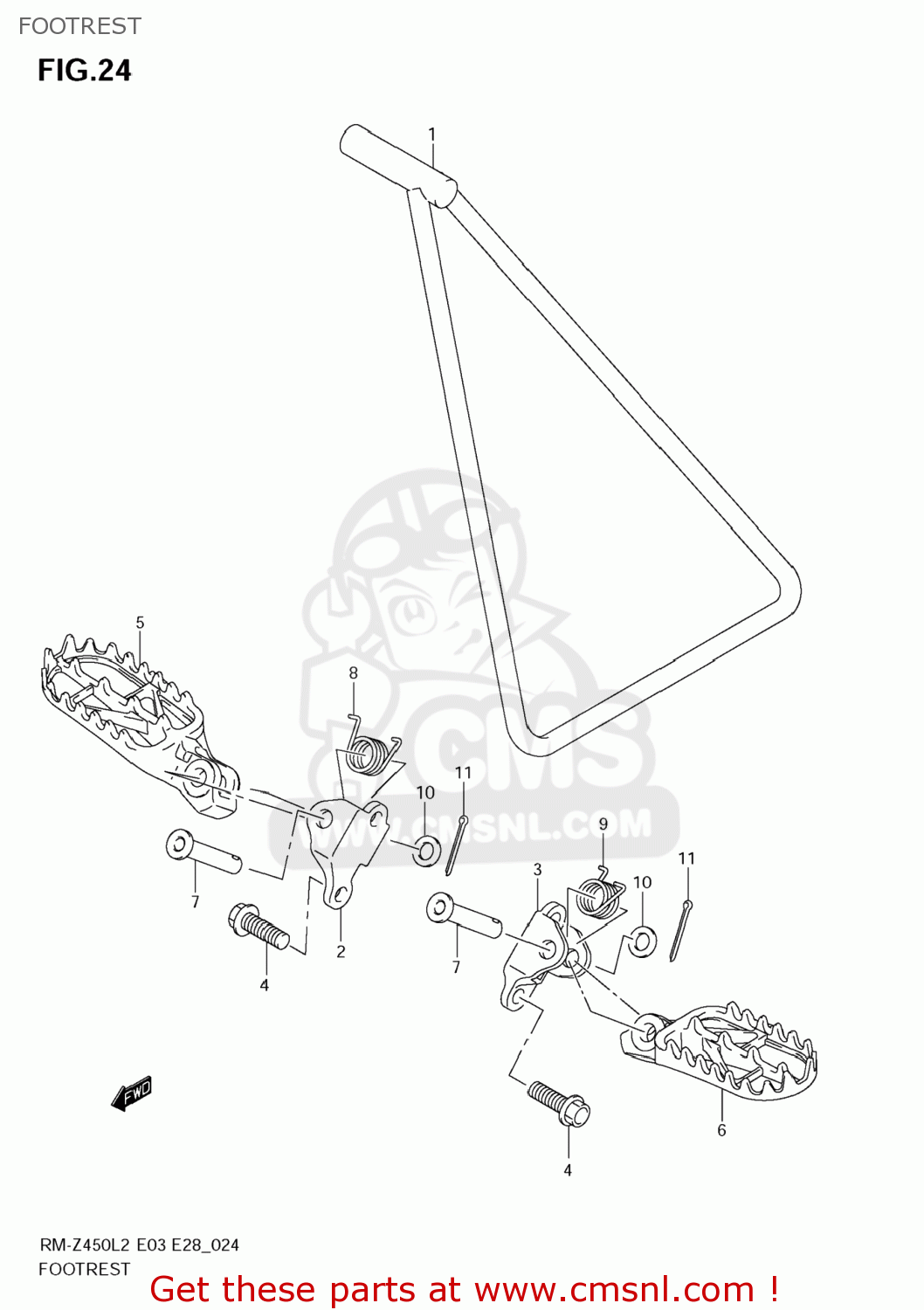

Footrest diagram RM-Z450 2012 (L2) USA (E03) RMZ450 RM Z450

FOOTREST RM-Z450 2012 (L2) USA (E03) RMZ450 RM Z450

FOOTREST RM-Z450 2012 (L2) USA (E03) RMZ450 RM Z450

prices are in EUR

ref

part #

description

quantity

1

4231028H00
ref: 1

STAND

€ 79.00

2

4185528H10
ref: 2

BRACKET,FOOTREST,R

€ 62.50

3

4186528H10
ref: 3

BRACKET,FOOTREST,L

€ 62.50

4

0910310415
ref: 4

BOLT(10X25)

€ 2.50

5

4355128H10
ref: 5

FOOTREST,R

€ 157.00

6

4356128H10
ref: 6

FOOTREST,L

€ 75.50

7

0920010019
ref: 7

PIN(10X41.5)

€ 6.00

8

0944821012
ref: 8

SPRING

€ 12.50

9

0944821013
ref: 9

SPRING

€ 4.50

10

0916010121
ref: 10

WASHER(10.5X18X1)

€ 2.00

11

041112520A
ref: 11

PIN

€ 2.00
