THROTTLE BODY (DL650 L1 E28)

DL650 VSTROM 2011 (L1) USA (E03)

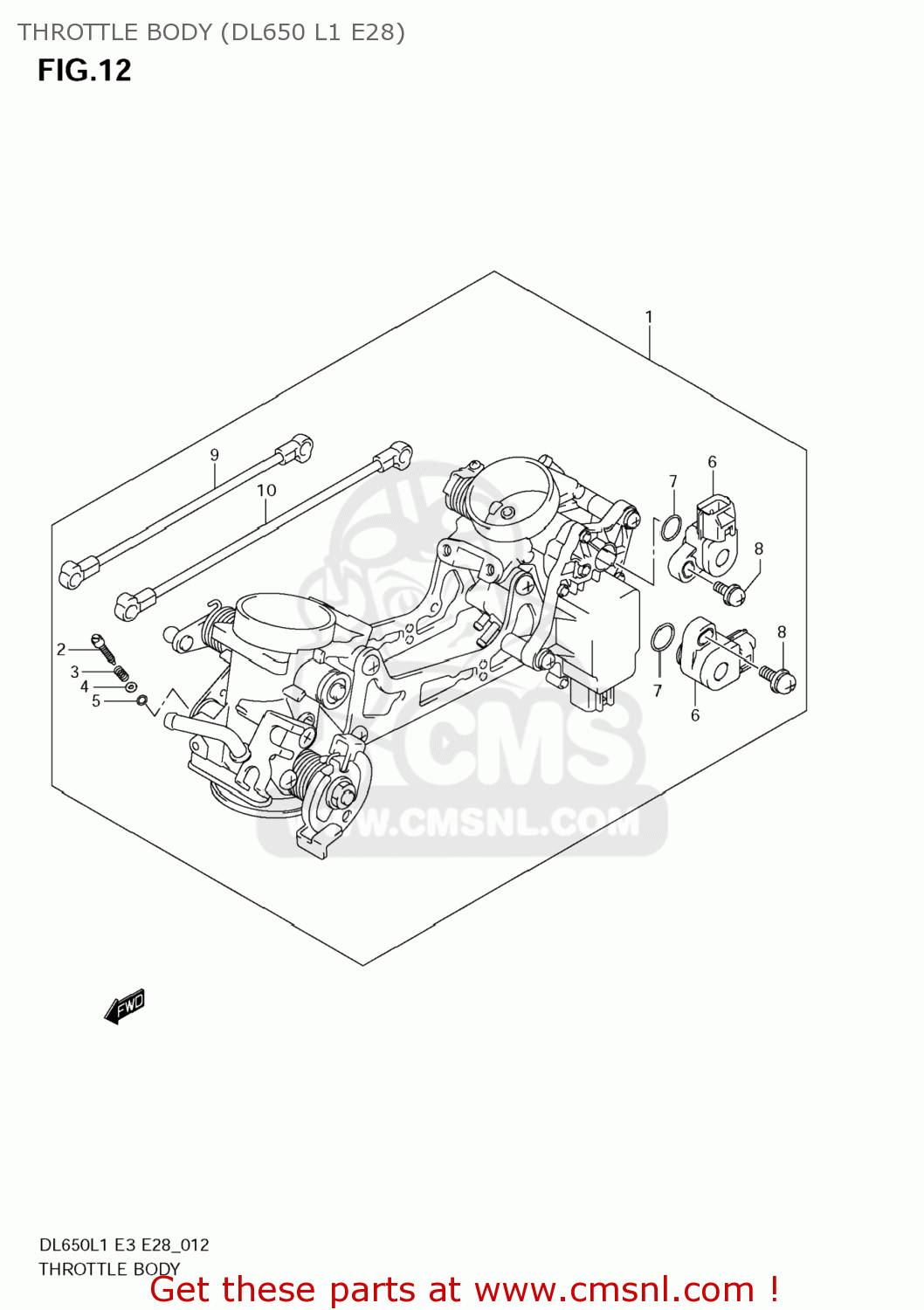

Throttle body (dl650 l1 e28) diagram DL650 VSTROM 2011 (L1) USA (E03)

THROTTLE BODY (DL650 L1 E28) DL650 VSTROM 2011 (L1) USA (E03)

THROTTLE BODY (DL650 L1 E28) DL650 VSTROM 2011 (L1) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1340527G20
ref: 1

BODY ASSY,THROTTLE

€ 1,413.00

2

1326933E00
ref: 2

SCREW

€ 8.50

3

1326848700
ref: 3

SPRING,THROTTLE SCREW

€ 3.50

4

1360647A00
ref: 4

WASHER

€ 2.00

5

1329529900
ref: 5

O RING,PILOT AIR SCREW

€ 4.00

6

1358027G21
ref: 6

SENSOR

€ 101.50

7

1357529G00
ref: 7

O RING

€ 3.00

8

1360502F00
ref: 8

SCREW

€ 3.00

9

1355217G00
ref: 9

ROD ASSY

€ 24.00

10

1355216G00
ref: 10

ROD ASSY

€ 24.50
