WIRING HARNESS (DL650 L1 E33)

DL650 VSTROM 2011 (L1) USA (E03)

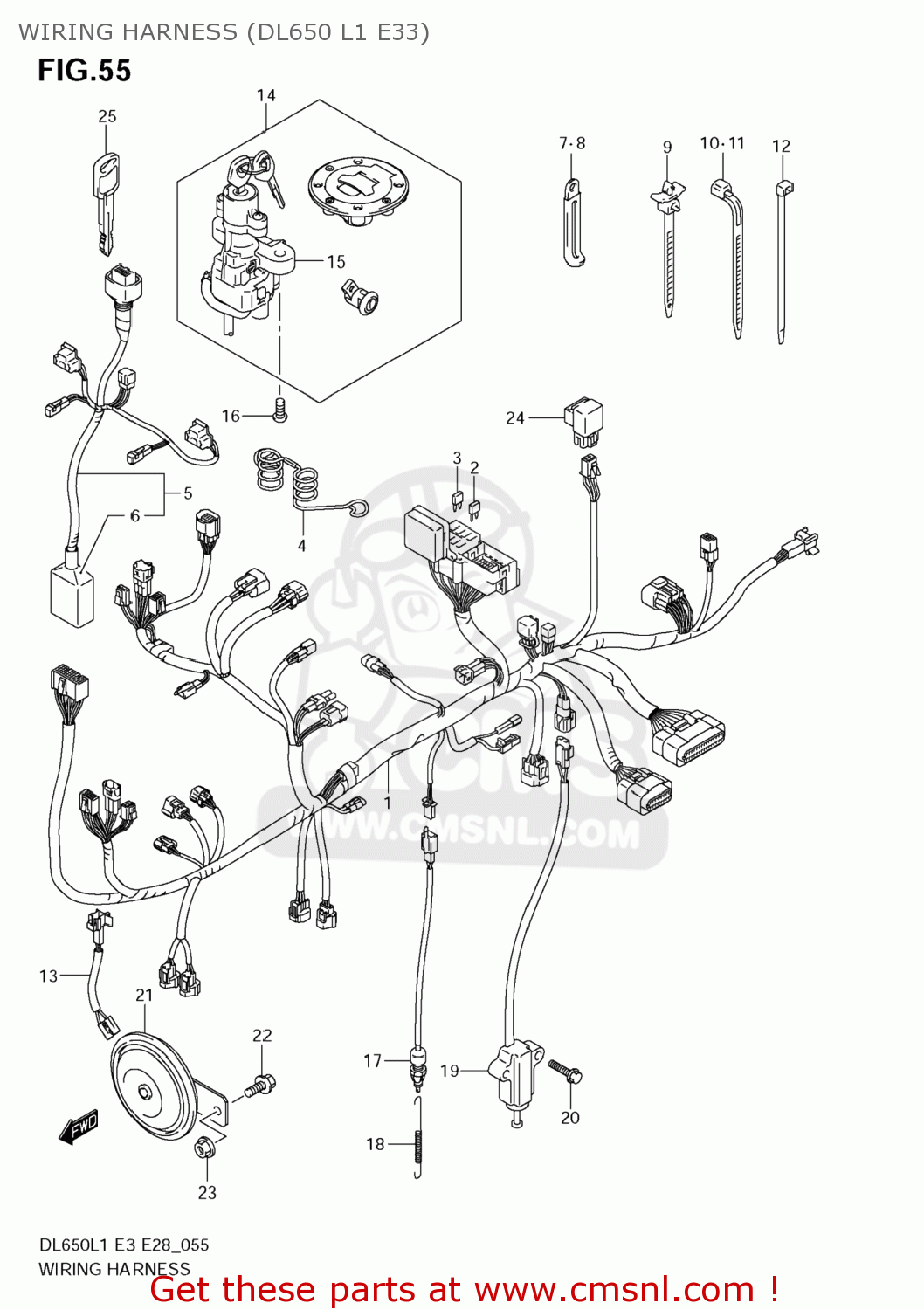

Wiring harness (dl650 l1 e33) diagram DL650 VSTROM 2011 (L1) USA (E03)

WIRING HARNESS (DL650 L1 E33) DL650 VSTROM 2011 (L1) USA (E03)

WIRING HARNESS (DL650 L1 E33) DL650 VSTROM 2011 (L1) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3661027GF0
ref: 1

HARNESS,WIRING NO.1

€ 568.50

2

0948110501
ref: 2

FUSE(10A)

€ 3.00

3

0948115501
ref: 3

FUSE(15A)

€ 1.00

4

3661906G01
ref: 4

GUIDE,WIRING HARNESS

€ 17.50

5

3662027G80
ref: 5

HARNESS,WIRING NO.2

€ 281.50

6

3661818G10
ref: 6

COVER,CONNECTOR

€ 8.00

7

0940406429
ref: 7

CLAMP(L:45)

€ 2.50

8

0940406433
ref: 8

CLAMP(L:80)

€ 3.00

9

0940714408
ref: 9
09407-17402

CLAMP(L:120)

€ 5.00

10

0940711401
ref: 10

CLAMP(L:95)

€ 2.50

11

0940714403
ref: 11

CLAMP(L:125)

€ 2.50

12

0940714407
ref: 12

CLAMP(L:145)

€ 4.00

13

3685206G00
ref: 13

WIRE,HORN LEAD

€ 16.00

14

3700027870
ref: 14

LOCK SET

€ 0.00

15

3710027G00
ref: 15

LOCK ASSY,STEERING

€ 211.00

16

0913908016
ref: 16

BOLT(8X20)

€ 3.50

17

3774045D00
ref: 17
37740-31D00

SWITCH ASSY,STOP LAMP

€ 20.50

18

0944306012
ref: 18

SPRING

€ 3.00

19

3784006G00
ref: 19

SWITCH ASSY,SIDE STAND

€ 67.00

20

015500616B
ref: 20

BOLT

€ 2.50

21

3850027G00
ref: 21

HORN ASSY

€ 80.00

22

015500812B
ref: 22

BOLT

€ 3.50

23

083161008B
ref: 23

NUT

€ 3.00

24

3874024X50
ref: 24

RELAY ASSY

€ 37.50

25

3714633E00
ref: 25

KEY,BLANK

€ 13.00
