FUEL TANK (MODEL F/G/H)
DR100 1985 (F) USA (E03)

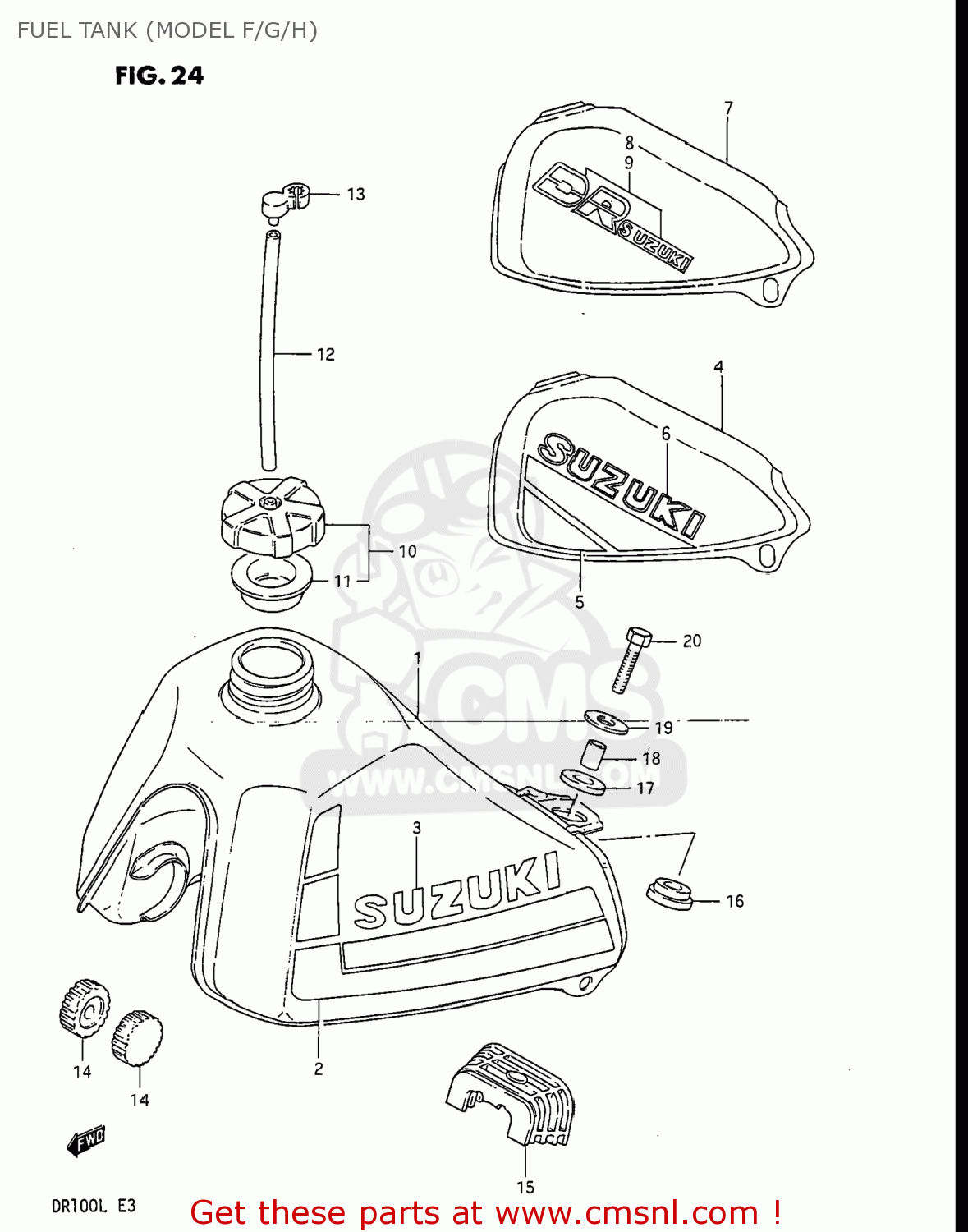

Fuel tank (model f/g/h) diagram DR100 1985 (F) USA (E03)
FUEL TANK (MODEL F/G/H) DR100 1985 (F) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
4910005280163
ref: 1
44110-05250-YD8
TANK ASSEMBLY,FUEL
€ 167.50
2
681100511067H
ref: 2
TAPE SET,FUEL TANK
€ 21.00
3
6811105200019
ref: 3
68111-47C10-019
EMBLEM
€ 13.00
4
4910005290163
ref: 4
44110-05250-YD8
TANK ASSEMBLY,FUEL
€ 167.50
5
68110051207CL
ref: 5
TAPE SET,FUEL TANK
€ 13.50
6
6811129310019
ref: 6
68131-06C50-33J
EMBLEM
€ 16.50
7
441000590025Y
ref: 7
TANK ASSEMBLY,FUEL
€ 152.00
8
68111052109BZ
ref: 8
EMBLEM
€ 8.50
9
68121052009BZ
ref: 9
EMBLEM,FUEL TANK
€ 10.50
10-1
4420005812
ref: 10-1
CAP SET,FUEL TANK
€ 19.50
10-2
4420001890
ref: 10-2
CAP SET,FUEL TANK
€ 12.50
11
4424805210
ref: 11
GASKET (NAS)
€ 4.50
12
0934305129
ref: 12
44420-44AR0
HOSE
€ 13.00
13
4448632101
ref: 13
CLAMP,FUEL TANK BREATHER HOSE
€ 3.50
14
0932910016
ref: 14
CUSHION
€ 3.00
15
4454205250
ref: 15
CUSHION,FUEL TANK
€ 4.50
16
0932012010
ref: 16
09320-12013
CUSHION
€ 3.00
17
0932012023
ref: 17
09320-12017
CUSHION
€ 2.50
18
0918008067
ref: 18
SPACER(8.5X12X19)
€ 2.50
19
0916008002
ref: 19
09160-08135
WASHER (8.5X29X1.6)
€ 2.00
20
0110708307
ref: 20
01500-08307
BOLT
€ 2.50
20
0110708307
ref: 20
01500-08307
BOLT
€ 2.50
20
0110708307
ref: 20
01500-08307
BOLT
€ 2.50
