CARBURETOR
DR125 1982 (Z) USA (E03)

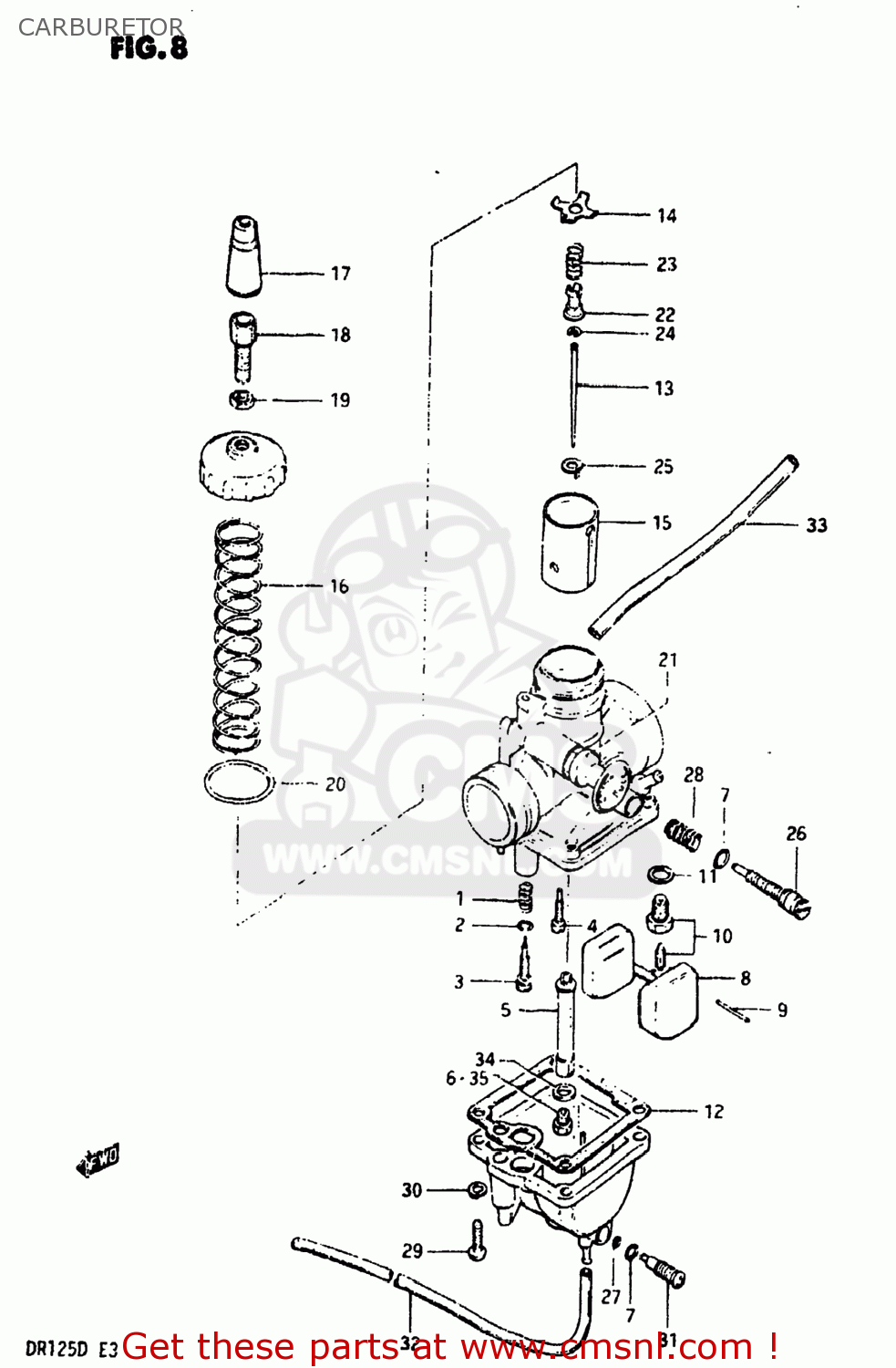

Carburetor diagram DR125 1982 (Z) USA (E03)
CARBURETOR DR125 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
0-1
1320005210
ref: 0-1
CARBURETOR ASSEMBLY
€ 0.00
0-2
1320005260
ref: 0-2
CARBURETOR ASSY
€ 293.00
1
1327105200
ref: 1
SPRING,THROTTLE ADJUST
€ 2.00
2
1327805200
ref: 2
13278-45010
O-RING
€ 5.00
3
1327905200
ref: 3
SCREW,PILOT AIR
€ 9.00
4-1
0949238002
ref: 4-1
JET,PILOT
€ 26.00
4-2
0949240013
ref: 4-2
JET,PILOT
€ 14.00
5
0949400366
ref: 5
JET,NEEDLE
€ 24.50
6-1
0949120014
ref: 6-1
JET,MAIN
€ 11.50
6-2
0949198002
ref: 6-2
JET,MAIN (98)
€ 10.00
7
1324605200
ref: 7
09280-05004
O-RING
€ 2.00
8
1325205200
ref: 8
FLOAT
€ 17.00
9
1325405200
ref: 9
PIN,FLOAT
€ 1.50
10
1337005200
ref: 10
VALVE ASSY,NEEDLE(ID:2.0)
€ 46.50
11
1339205200
ref: 11
GASKET,NEEDLE VALVE SE
€ 2.00
12
1325105200
ref: 12
GASKET,FLOAT CHAMBER (NAS)
€ 4.50
13-1
1338305210
ref: 13-1
NEEDLE JET
€ 11.50
13-2
1338305260
ref: 13-2
NEEDLE JET
€ 0.00
14
1358105200
ref: 14
PLATE,THROTTLE VALVE
€ 0.00
15
1355105200
ref: 15
VALVE,THROTTLE
€ 52.00
16
1357305200
ref: 16
SPRING,THROTTLE VALVE
€ 3.00
17
1368105200
ref: 17
CAP
€ 0.00
18
1357705200
ref: 18
ADJUSTER,CABLE
€ 0.00
19
1366105200
ref: 19
NUT,CABLE ADJUSTER LOCK
€ 0.00
20
1326605200
ref: 20
O-RING,MIXING CHAMBER
€ 2.00
21
1340005200
ref: 21
VALVE ASSEMBLY,STARTER
€ 60.50
22
1338905200
ref: 22
HOLDER,NEEDLE
€ 1.50
23
1338805200
ref: 23
SPRING,NEEDLE JET
€ 0.00
24
1338405200
ref: 24
E-RING
€ 1.50
25
1338205200
ref: 25
RECEIVER,NEEDLE
€ 0.00
26
1326705200
ref: 26
SCREW,THROTTLE STOP
€ 6.00
27
1329405200
ref: 27
O-RING,DRAIN PLUG
€ 2.00
28
1326805200
ref: 28
SPRING,THROTTLE SCREW
€ 3.50
29
0211204168
ref: 29
02112-0416A
SCREW
€ 1.00
30
0832121048
ref: 30
08321-0104A
LOCK WASHER
€ 2.00
31
1324705200
ref: 31
PLUG,DRAIN
€ 4.50
32
1368405200
ref: 32
13684-40A00
HOSE
€ 7.50
33-1
1368405210
ref: 33-1
09351-35653-600
HOSE
€ 5.50
33-2
1368405270
ref: 33-2
44420-44AR0
HOSE
€ 13.00
34
1334305200
ref: 34
WASHER,MAIN JET
€ 3.00
35-1
0949196003
ref: 35-1
JET,MAIN (96)
€ 10.00
35-2
0949198002
ref: 35-2
JET,MAIN (98)
€ 10.00
35-3
0949120014
ref: 35-3
JET,MAIN
€ 11.50
35-4
0949120015
ref: 35-4
JET,MAIN (102)
€ 0.00
35-5
0949121017
ref: 35-5
JET, MAIN (104)
€ 16.00
35-6
0949121018
ref: 35-6
JET, MAIN (106)
€ 0.00
