MAGNETO
DR125 1982 (Z) USA (E03)

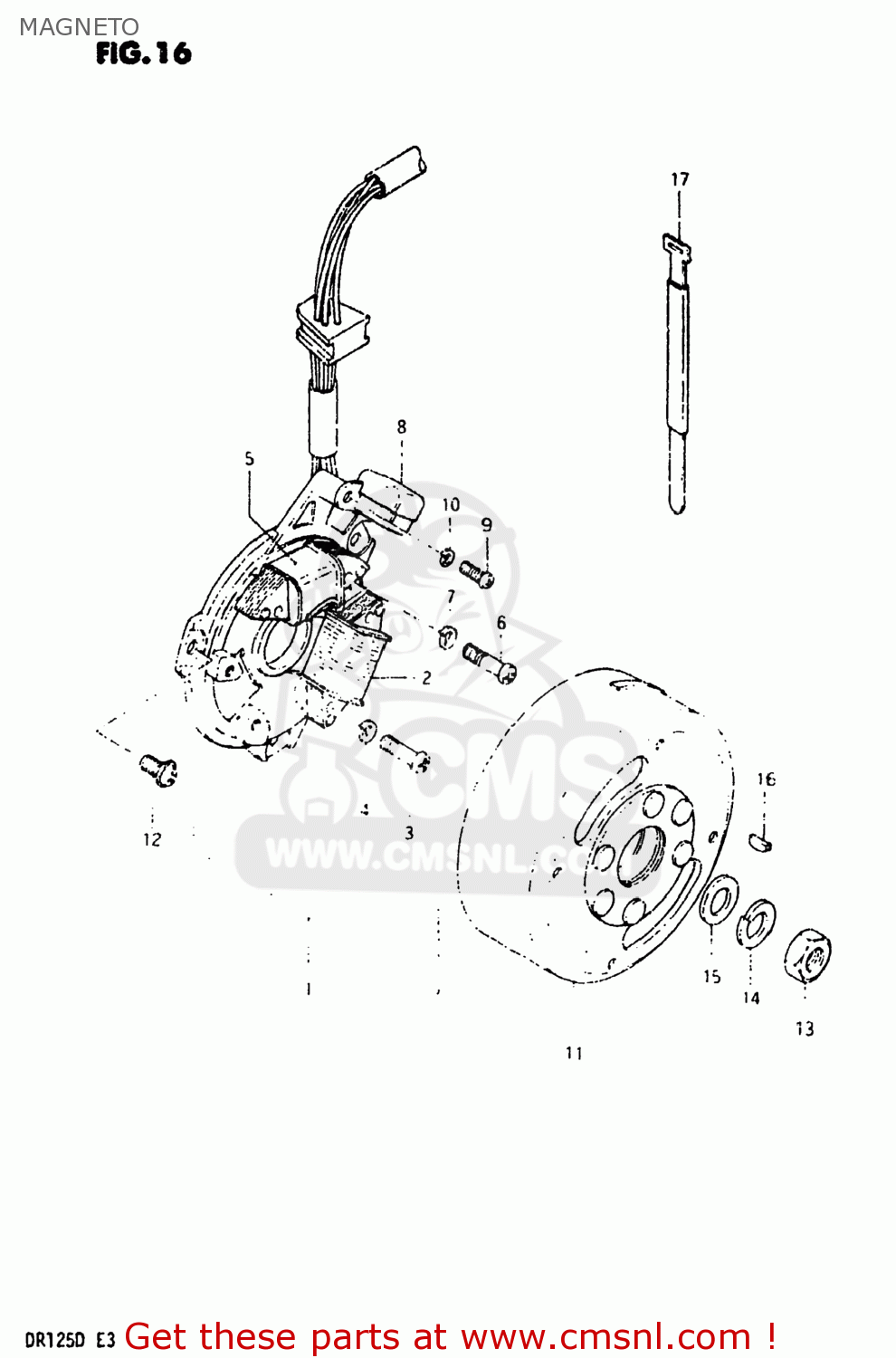

Magneto diagram DR125 1982 (Z) USA (E03)
MAGNETO DR125 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
3210105230
ref: 1-1
32101-05231
STATOR ASSEMBLY
€ 73.50
1-2
3210105231
ref: 1-2
STARTER ASSY
€ 73.50
2
3212005230
ref: 2
COIL,LIGHTING
€ 34.50
3
0211205258
ref: 3
02112-05257
SCREW
€ 2.00
4
0832121058
ref: 4
08321-0105A
LOCK WASHER
€ 2.00
5
3214005210
ref: 5
COIL,IGNITION PRIMARY
€ 0.00
6
0211205258
ref: 6
02112-05257
SCREW
€ 2.00
7
0832121058
ref: 7
08321-0105A
LOCK WASHER
€ 2.00
8
3215005210
ref: 8
32150-22A01
COIL
€ 66.50
9
0211204128
ref: 9
02112-0412A
SCREW
€ 1.50
10
0832121048
ref: 10
08321-0104A
LOCK WASHER
€ 2.00
11
3210205230
ref: 11
32102-05210
ROTOR ASSEMBLY
€ 412.00
12
0913905011
ref: 12
SCREW(5X14)
€ 3.00
13
0914010003
ref: 13
09140-10041
NUT (10MM)
€ 3.50
14
0832121108
ref: 14
08321-01107
LOCK WASHER
€ 2.00
15
0832221108
ref: 15
08322-01107
WASHER
€ 2.50
16
0834131039
ref: 16
KEY
€ 2.00
17
0940711301
ref: 17
09407-18301
CLAMP L:110
€ 6.00
