GEAR SHIFTING

DR125SE 1994 (R) GENERAL FRANCE ITALY (E01 E04 E34)

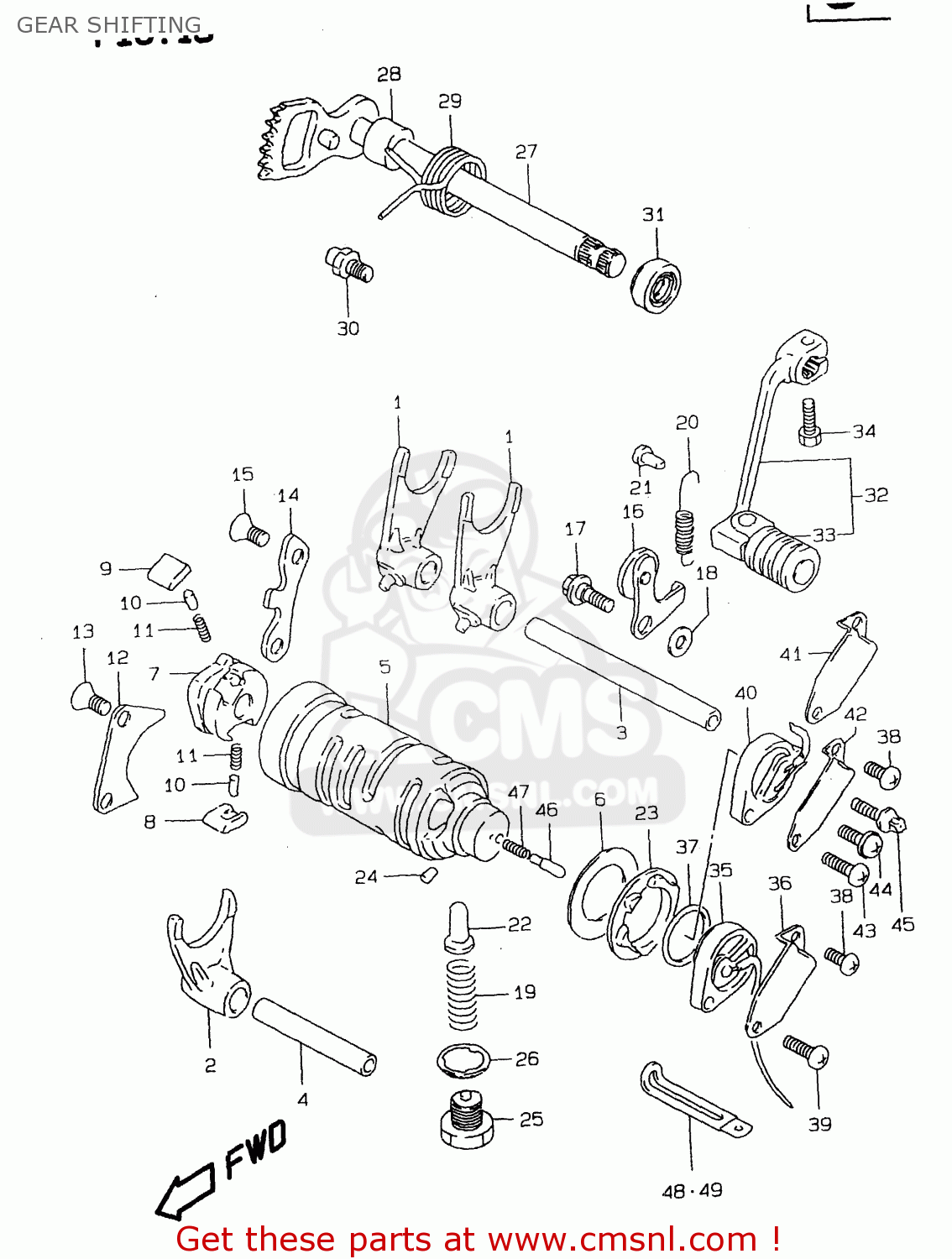

Gear shifting diagram DR125SE 1994 (R) GENERAL FRANCE ITALY (E01 E04 E34)

GEAR SHIFTING DR125SE 1994 (R) GENERAL FRANCE ITALY (E01 E04 E34)
GEAR SHIFTING DR125SE 1994 (R) GENERAL FRANCE ITALY (E01 E04 E34)
GEAR SHIFTING DR125SE 1994 (R) GENERAL FRANCE ITALY (E01 E04 E34)
prices are in EUR
ref
part #
description
quantity
1
2522108300
ref: 1
FORK,GEAR SHIFT NO.2
€ 54.50
2
2523105201
ref: 2
FORK,GEAR SHIFT NO.3
€ 54.50
3
2541116701
ref: 3
<-25411-05201
SHAFT,GEAR SHIFT FORK(L:109)
2541116701
€ 11.50
4
2542135402
ref: 4
MODEL R
SHAFT,GEAR SHIFT FORK
€ 19.00
4
2542135403
ref: 4
MODEL S/T/V/W/X
SHAFT,GEAR SHIFT FORK
€ 19.00
5
2531044A00
ref: 5
CAM,GEAR SHIFT
€ 166.50
6
0821125401
ref: 6
MODEL R/S/T
WASHER,THRUST
0821125401
€ 2.50
6
0918125251
ref: 6
MODEL V/W/X
SHIM(25X40X1)
0918125251
€ 2.50
7
2532231302
ref: 7
MODEL R/S/T/V, <-253
GEAR,GEARSHIFT CAM DRIVE
€ 14.50
7
2532231310
ref: 7
MODEL W/X
GEAR,GEAR SHIFT CAM DRIVEN
2532231310
€ 14.50
8
2532334201
ref: 8
PAWL,GEAR SHIFT NO.1
2532334201
€ 6.00
9
2532434201
ref: 9
PAWL,GEAR SHIFT NO.2
2532434201
€ 6.00
10
0926105003
ref: 10
PIN(5X8)
0926105003
€ 1.50
11
0944004003
ref: 11
SPRING
0944004003
€ 1.50
12
2533130001
ref: 12
LIFTER,GEAR SHIFT POLE
2533130001
€ 3.50
13
0212206123
ref: 13
SCREW
0212206123
€ 3.00
14
2534105200
ref: 14
GUIDE,GEAR SHIFT CAM
€ 6.50
15
0212206123
ref: 15
SCREW
0212206123
€ 3.00
16
2535044A00
ref: 16
STOPPER,GEAR SHIFT CAM
2535044A00
€ 8.00
17
0911106019
ref: 17
MODEL R
BOLT
€ 1.50
17
0911106054
ref: 17
MODEL S/T/V/W/X
BOLT(6X14.6)
0911106054
€ 1.50
18
0821106141
ref: 18
WASHER
0821106141
€ 2.50
19
0944011014
ref: 19
SPRING
0944011014
€ 1.50
20
0944308044
ref: 20
SPRING
0944308044
€ 1.50
21
0922304001
ref: 21
RIVET
0922304001
€ 1.50
22
2535130010
ref: 22
STOPPER,GEAR SHIFT CAM NO.2
2535130010
€ 6.50
23
2538145400
ref: 23
PLATE,GEAR SHIFT CAM STOPPER
2538145400
€ 10.50
24
0621104063
ref: 24
MODEL R/S
PIN 4X6
0621104063
€ 2.00
24
0422104069
ref: 24
MODEL T/V/W/X
PIN
0422104069
€ 2.00
25
0924714026
ref: 25
PLUG(14X12)
0924714026
€ 3.50
26
0916814004
ref: 26
MODEL R
GASKET(14X19.2X2) (NAS)
0916814004
€ 2.50
26
0916814002
ref: 26
MODEL S/T/V/W/X
GASKET(13.8X18.8X4.8) (NAS)
0916814002
€ 2.50
27
2551005201
ref: 27
SHAFT,GEAR SHIFT
2551005201
€ 42.50
28
0918012068
ref: 28
SPACER(12X20X15.3)
0918012068
€ 3.00
29
0944426001
ref: 29
SPRING
0944426001
€ 4.00
30
2567101000
ref: 30
STOPPER,GEAR SHIFT CAM
2567101000
€ 3.00
31
0928512002
ref: 31
OIL SEAL
0928512002
€ 7.00
32
2560042A00
ref: 32
LEVER ASSY,GEAR SHIFT
2560042A00
€ 26.00
33
2565203D00
ref: 33
RUBBER,GEAR SHIFT PEDAL
2565203D00
€ 3.50
34
0150006203
ref: 34
BOLT
0150006203
€ 2.00
35
3772042A30
ref: 35
MODEL R/S/T
BASE ASSY,NEUTRAL SW TERMINAL
3772042A30
€ 26.00
36
3772142A00
ref: 36
MODEL R/S/T
PROTECTOR,GEAR SHIFT SW
3772142A00
€ 3.00
37
0928022001
ref: 37
O RING(D:2.4,ID:21.8)
0928022001
€ 2.00
38
0211205083
ref: 38
SCREW
0211205083
€ 2.00
39
0211205163
ref: 39
SCREW
0211205163
€ 2.00
40
3772044A00
ref: 40
MODEL V/W/X, DR125SE
BASE ASSY,GEAR SHIFT TERMINAL
3772044A00
€ 30.50
40
3773044A10
ref: 40
MODEL V/W/X, DR125SE
BASE ASSY,GEAR SHIFT TERMINAL
€ 93.50
40
3773044A00
ref: 40
MODEL V/W/X, DR125SE
BASE ASSY,GEAR SHIFT TERMINAL
3773044A00
€ 79.50
41
3772142A00
ref: 41
MODEL V/W/X, DR125SE
PROTECTOR,GEAR SHIFT SW
3772142A00
€ 3.00
42
3772144A00
ref: 42
MODEL V/W/X E22
PROTECTOR,NEUTRAL SW
€ 3.00
43
0211205163
ref: 43
MODEL V/W/X, DR125SE
SCREW
0211205163
€ 2.00
44
0214205203
ref: 44
MODEL V/W/X, DR125SE
SCREW 5X20
0214205203
€ 2.00
45
0911905022
ref: 45
MODEL V/W/X, DR125SE
BOLT
0911905022
€ 2.00
46
0920905011
ref: 46
PIN(5X15.5)
0920905011
€ 2.00
47
0944004010
ref: 47
SPRING
0944004010
€ 1.50
48
0940406432
ref: 48
<-09404-06422
CLAMP(L:65)
0940406432
€ 2.50
49
0940406432
ref: 49
<-09404-06402, <-094
CLAMP(L:65)
0940406432
€ 2.50
