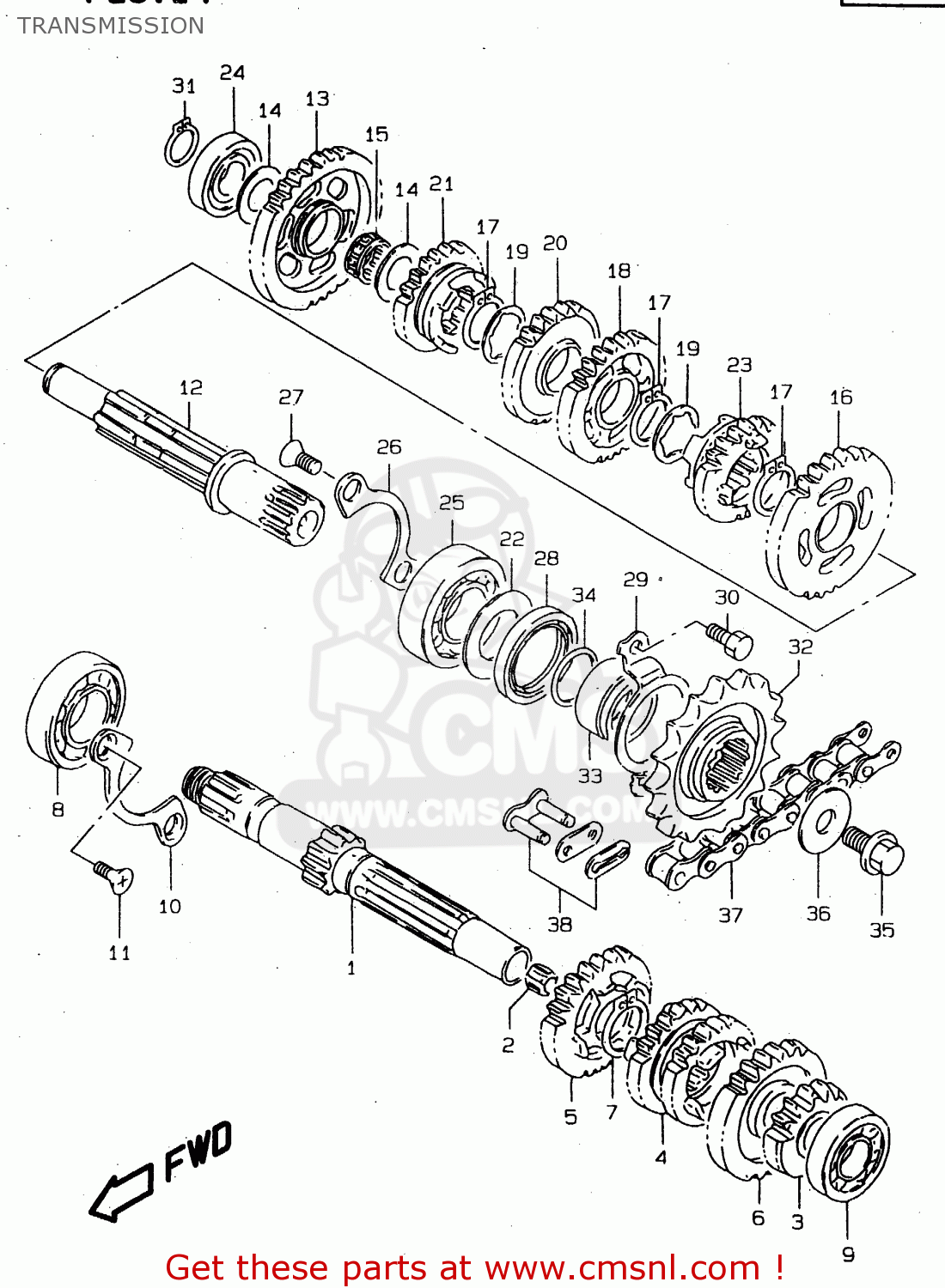

TRANSMISSION

ref

part #

description

quantity

1

2412005810
ref: 1
<-24121-05201

SHAFT,COUNTER (NT:11)

€ 97.00

2

2412538201
ref: 2

BUSH

€ 3.50

3

2422105201
ref: 3
MODEL R/S/T/V

GEAR,SECOND DRIVE

€ 46.00

3

2422105202
ref: 3
MODEL W/X

GEAR,2ND DRIVE(NT:14)

€ 46.00

4

2423105203
ref: 4
<-24231-05202

GEAR,3RD & 4TH DRIVEN(NT:19/21

€ 61.50

5

2425105211
ref: 5
MODEL R/S/T/V

GEAR,FIFTH DRIVE

€ 50.00

5

2425105212
ref: 5
MODEL W/X

GEAR,5TH DRIVE(NT:26)

€ 50.00

6

2426044A00
ref: 6
MODEL R/S/T/V

GEAR,SIXTH DRIVE

€ 66.50

6

2426044A01
ref: 6
MODEL W/X

GEAR 6TH DRIVE(NT:24)

€ 66.50

7

0938020009
ref: 7

CIRCLIP

€ 2.00

8

0926220069
ref: 8

BEARING(20X47X14)

€ 28.00

9

0812360027
ref: 9

BEARING

€ 16.00

10

2474105200
ref: 10

RETAINER,DRIVE SHAFT BEARING

€ 3.50

11

0212206123
ref: 11

SCREW

€ 3.00

12

2413044A20
ref: 12

SHAFT,DRIVE

€ 102.00

13

2431105201
ref: 13
<-24311-05200

GEAR,FIRST DRIVEN (NT:33)

€ 53.00

14

0821115251
ref: 14

WASHER

€ 2.00

15

0926315023
ref: 15

BEARING(15X19X7.8)

€ 10.50

16

2432005202
ref: 16
<-24320-05201

GEAR,2ND DRIVEN(NT:26)

€ 40.50

17

0938020009
ref: 17

CIRCLIP

€ 2.00

18

2433105201
ref: 18
MODEL R/S/T/V

GEAR,THIRD DRIVEN

€ 50.00

18

2433105203
ref: 18
MODEL W/X

GEAR,3RD DRIVEN(NT:26)

€ 50.00

19

0916720011
ref: 19

WASHER,LOCK

€ 2.50

20

2434105202
ref: 20
MODEL R/S/T/V, <-243

GEAR,FOURTH DRIVEN

€ 50.00

20

2434105203
ref: 20
MODEL W/X

GEAR,4TH DRIVEN(NT:23)

€ 50.00

21

2435105210
ref: 21
MODEL R/S/T/V

GEAR,FIFTH DRIVEN

€ 50.50

21

2435105211
ref: 21
MODEL W/X

GEAR,5TH DRIVEN(NT:24)

€ 50.50

22

2435942A00
ref: 22

WASHER,OIL SEALING

€ 3.00

23

2436105210
ref: 23
MODEL R/S/T/V

GEAR,SIXTH DRIVEN

€ 66.50

23

2436105211
ref: 23
MODEL W/X

GEAR,6TH DRIVEN(NT:20)

€ 66.50

24

0926415001
ref: 24

BEARING(15X36X12)

€ 39.00

25

0926222018
ref: 25

BEARING(22X50X14)

€ 17.50

26

2474105200
ref: 26

RETAINER,DRIVE SHAFT BEARING

€ 3.50

27

0150006103
ref: 27

BOLT

€ 2.00

28

0928330053
ref: 28

SEAL,OIL(30X40X6)

€ 8.00

29

2475142A01
ref: 29

RETAINER,DRIVESHAFT O

€ 2.50

30

0212206123
ref: 30

SCREW

€ 3.00

31

0833131156
ref: 31

CIRCLIP

€ 2.00

32

2751044A10
ref: 32

SPROCKET,ENGINE(NT:16)

€ 35.50

33

2753142A00
ref: 33

SPACER,ENGINE SPROCKET

€ 12.00

34

0928021008
ref: 34

O RING(D:2.5,ID:21)

€ 2.00

35

0155008123
ref: 35

BOLT

€ 3.50

36

0821108283
ref: 36

WASHER

€ 2.50

37

2760020511
ref: 37
MODEL R

CHAIN ASSEMBLY,DRIVE

€ 46.50

37

2760046911134
ref: 37
MODEL S/T/V/W/X

CHAIN,DRIVE(DID428HG,134L)

€ 46.50

38

2762046911
ref: 38

JOINT SET,CHAIN

€ 4.50

38

2762040220
ref: 38
<-27620-05220

JOINT(RK)

€ 7.00
