KNUCKLE COVER (OPTION)
DR125SE 1996 (T) USA (E03)

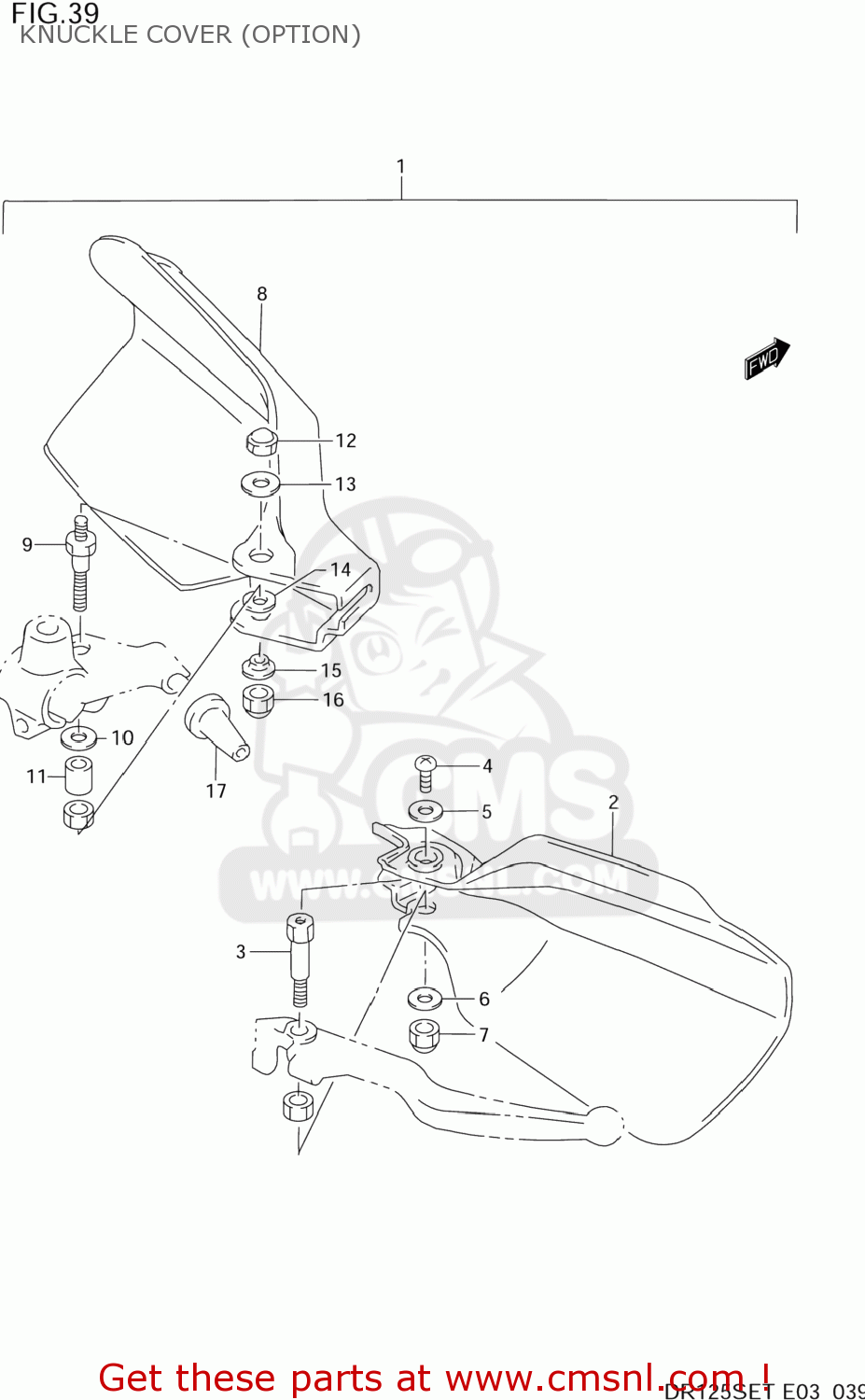

Knuckle cover (option) diagram DR125SE 1996 (T) USA (E03)
KNUCKLE COVER (OPTION) DR125SE 1996 (T) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
57300058100NF
ref: 1-1
COVER SET,KNUCKLE
€ 40.00
1-2
5730005810Z16
ref: 1-2
COVER SET,KNUCKLE(PURPLE)
€ 0.00
2-1
5734105D000NF
ref: 2-1
COVER,KNUCKLE,R
€ 28.00
2-2
5734105D00Z16
ref: 2-2
COVER,KNUCKLE,R
€ 31.50
3
5743105D00
ref: 3
BOLT,BRAKE LEVER PIVOT
€ 9.00
4
0214205107
ref: 4
SCREW
€ 2.50
5
0916005017
ref: 5
09160-05043
WASHER (5.5X16X1.2)
€ 2.50
6
0916006042
ref: 6
09160-06130
WASHER (6.5X17X1.6)
€ 2.00
7
0831921068
ref: 7
08319-2106A
NUT 6MM
€ 2.00
8-1
5754131D000NF
ref: 8-1
57541-31D30-0NF
COVER,KNUCKLE,LEFT
€ 25.50
8-2
5754131D00Z16
ref: 8-2
57541-31D30-Z16
COVER,KNUCKLE,LEFT
€ 26.00
9
5753144B00
ref: 9
57531-44B01
BOLT,LEVER SET
€ 6.50
10
5753344B00
ref: 10
WASHER,LEVER SET
€ 2.50
11
5753244B00
ref: 11
SPACER,LEVER SET
€ 3.50
12
0831310067
ref: 12
NUT
€ 2.00
13
0916006066
ref: 13
WASHER(6.5X20X1.6)
€ 2.00
14
0916006019
ref: 14
WASHER(6.5X16X1.2)
€ 1.50
15
0916906055
ref: 15
WASHER
€ 2.00
16
0831921068
ref: 16
08319-2106A
NUT 6MM
€ 2.00
17
5827331000
ref: 17
BOOT,CLUTCH CABLE
€ 2.50
