prices are in EUR

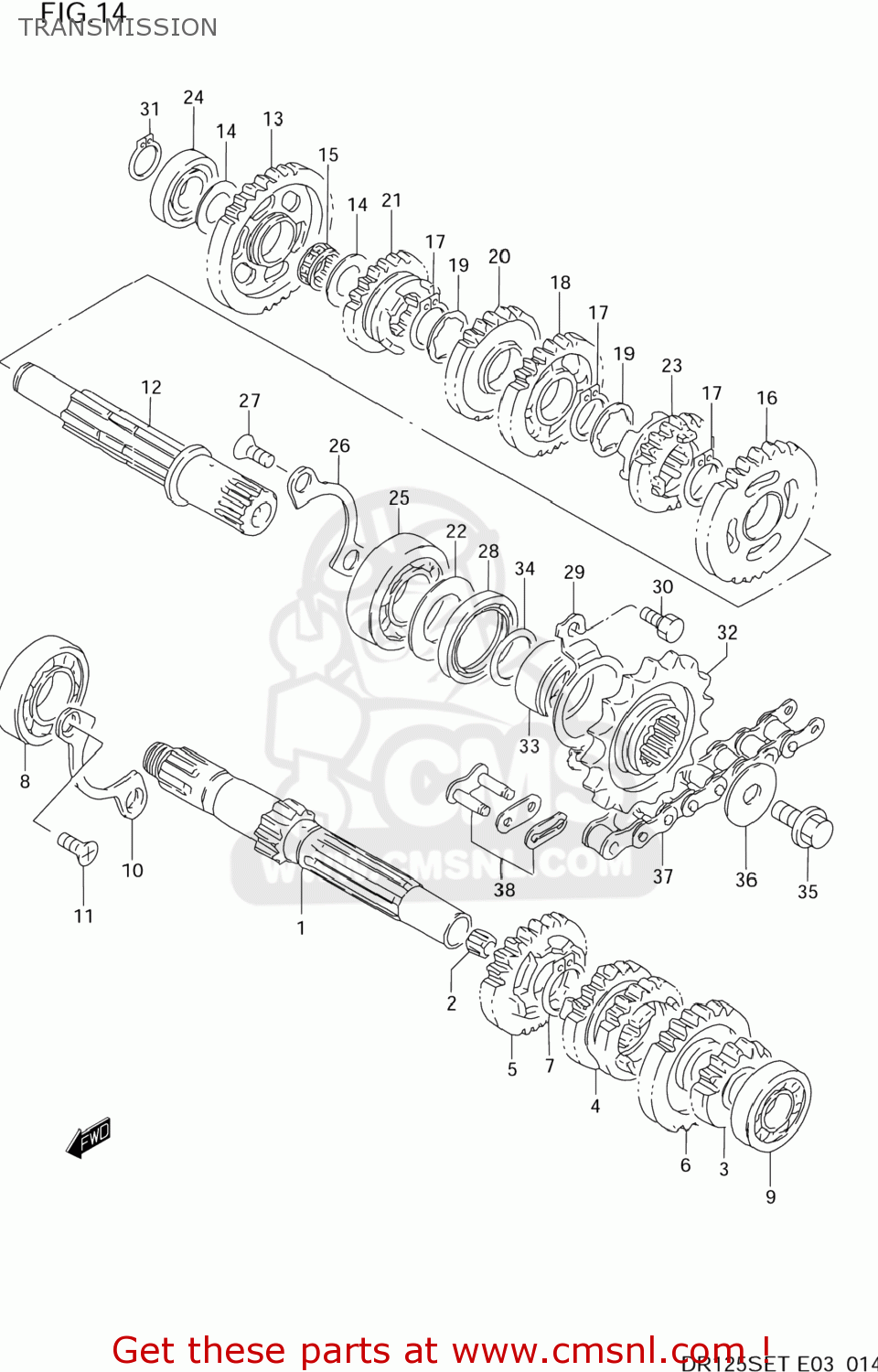

ref
part #
description
quantity
2
BUSH
4
GEAR,THIRD & FOURTH DRIVE,N
4
GEAR,THIRD & FOURTH DRIVE,N
5
GEAR,FIFTH DRIVE
7
CIRCLIP
8
BEARING(20X47X14)
9
BEARING
10
RETAINER,DRIVE SHAFT BEARING
11
SCREW
13
GEAR,FIRST DRIVEN
14
WASHER
15
BEARING(15X19X7.8)
16
GEAR,SECOND DRIVEN
17
CIRCLIP
19
WASHER,LOCK
22
WASHER,OIL SEALING
23
GEAR,SIXTH DRIVEN
25
BEARING(22X50X14)
26
RETAINER,DRIVE SHAFT BEARING
28
SEAL,OIL(30X40X6)
30
SCREW
31
CIRCLIP
32
SPROCKET,ENGINE(NT:16)
33
SPACER,ENGINE SPROCKET
34
O RING(D:2.5,ID:21)
35
BOLT
36
WASHER
37-1
CHAIN ASSEMBLY,DRIVE
37-1
CHAIN ASSEMBLY,DRIVE
37-2
CHAIN,DRIVE(DID428HG,134L)
38-1
JOINT SET,CHAIN
38-2
JOINT ASSEMBLY,CHAIN
