CARBURETOR (MODEL R/S/T)
DR125SEU 1998 (W) GERMANY (E22)

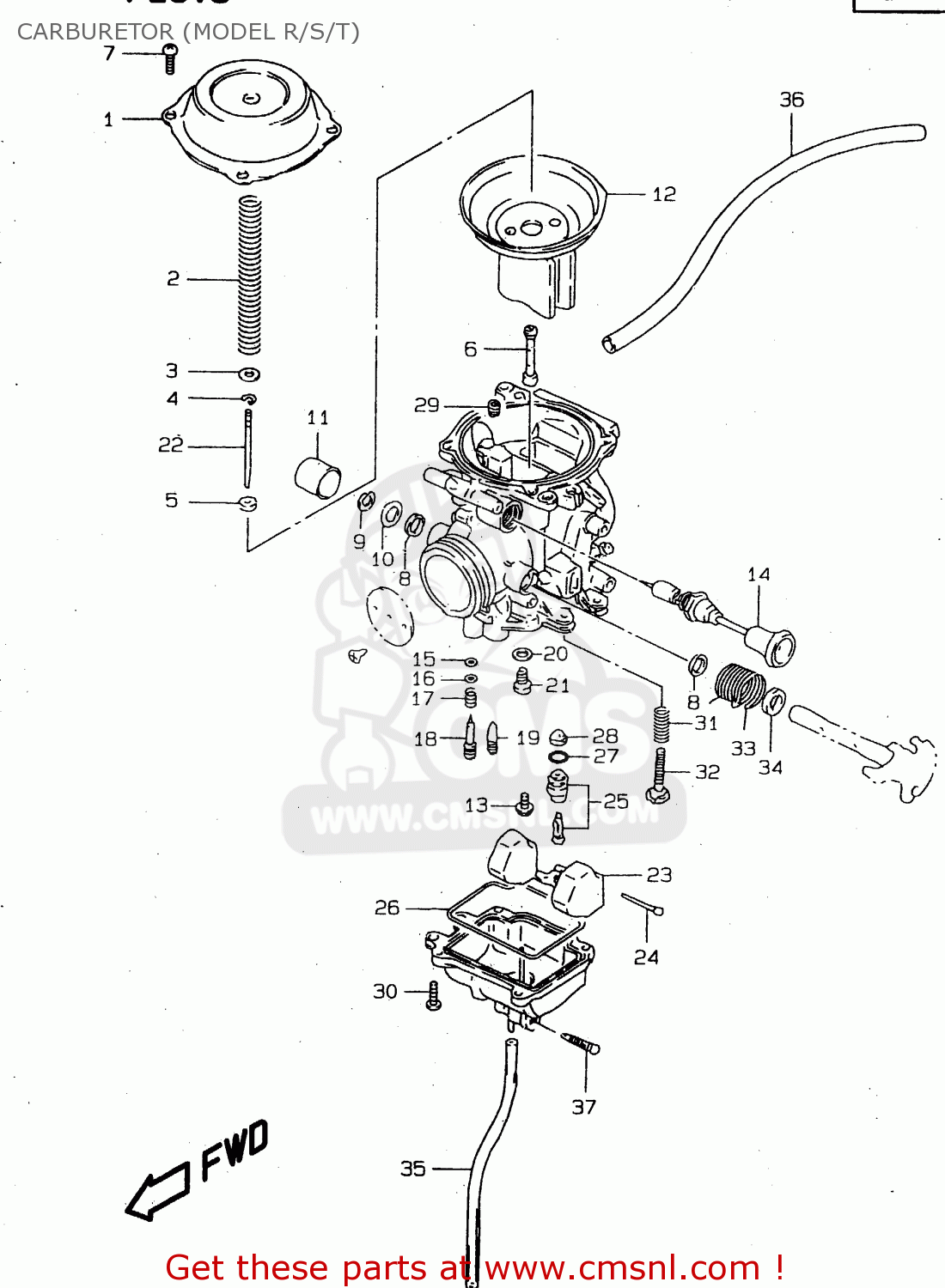

Carburetor (model r/s/t) diagram DR125SEU 1998 (W) GERMANY (E22)
CARBURETOR (MODEL R/S/T) DR125SEU 1998 (W) GERMANY (E22)
×
prices are in EUR
ref
part #
description
quantity
0
1320044AA0
ref: 0
MODEL R/S
CARBURETOR ASSY
€ 0.00
0
1320044AA1
ref: 0
MODEL T
CARBURETOR ASSY
€ 0.00
0
1320044AE0
ref: 0
MODEL S E22
CARBURETOR ASSY
€ 0.00
0
1320044AE1
ref: 0
MODEL T E22
CARBURETOR ASSY
€ 0.00
1
1350242A00
ref: 1
COVER,DIAPHRAGM
€ 25.00
2
1341742A00
ref: 2
SPRING
€ 6.00
3
1338242A00
ref: 3
RING
€ 3.50
4
1339410010
ref: 4
CLIP
€ 4.50
5
1338747010
ref: 5
RING
€ 7.50
6
0949400606
ref: 6
JET, NEEDLE (P-5)
€ 28.50
6
0949400825
ref: 6
E22
JET,NEEDLE(P-5)
€ 28.50
7
0211204083
ref: 7
SCREW
€ 2.00
8
1355605A10
ref: 8
SEAL,THROTTLE SHAFT
€ 3.50
9
1361744080
ref: 9
E RING
€ 3.50
10
1355747070
ref: 10
GASKET,THROTTLE SHAFT (NAS)
€ 4.00
11
1357847070
ref: 11
CAP
€ 5.50
12
1350042A00
ref: 12
DIAPHRAGM ASSY
€ 123.00
13
1360243410
ref: 13
SCREW
€ 2.50
14
1341142A20
ref: 14
PLUNGER ASSY
€ 26.50
15
1329529900
ref: 15
O RING,PILOT AIR SCREW
€ 4.00
16
1329129900
ref: 16
WASHER
€ 2.00
17
1326847070
ref: 17
SPRING
€ 5.00
18
1327947070
ref: 18
1-7/8
SCREW,PILOT
€ 11.50
18
1327947070
ref: 18
E22, 1-3/4
SCREW,PILOT
€ 11.50
19
0949240014
ref: 19
JET(40)
€ 8.50
20
1333244080
ref: 20
WASHER,NEEDLE NOZZLE
€ 2.50
21
0949122016
ref: 21
JET,MAIN(110)
€ 7.00
22
1338342A00
ref: 22
5D26-3
NEEDLE,JET
€ 10.00
23
1325042A00
ref: 23
FLOAT
€ 27.00
24
1325492311
ref: 24
PIN,FLOAT
€ 2.00
25
1337042A10
ref: 25
MODEL R
VALVE ASSEMBLY,NEEDLE
€ 40.50
25
1337044500
ref: 25
MODEL S/T
VALVE ASSY,NEEDLE
€ 40.50
26
1325142A00
ref: 26
O RING,FLOAT CHAMBER
€ 7.50
27
1337444080
ref: 27
O-RING,NEEDLE VALVE
€ 6.00
28
1337684110
ref: 28
FILTER
€ 6.50
29
0949328005
ref: 29
JET,AIR(140)
€ 10.00
30
0211204123
ref: 30
SCREW
€ 1.50
31
1326837420
ref: 31
SPRING,THROTTLE SCREW
€ 3.50
32
1326737100
ref: 32
SCREW,THROTTLE STOP
€ 9.00
33
1357342A10
ref: 33
SPRING
€ 0.00
34
1357445120
ref: 34
RING
€ 2.50
35
1368440A00
ref: 35
L:650->400
HOSE(3X5X650)
€ 7.50
36
0935250823600
ref: 36
L:600->250
HOSE(5X8.2X600)
€ 13.00
37
1324713A00
ref: 37
SCREW,DRAIN
€ 5.50
