FRAME (MODEL R/S/T)
DR125SEU 1998 (W) GERMANY (E22)

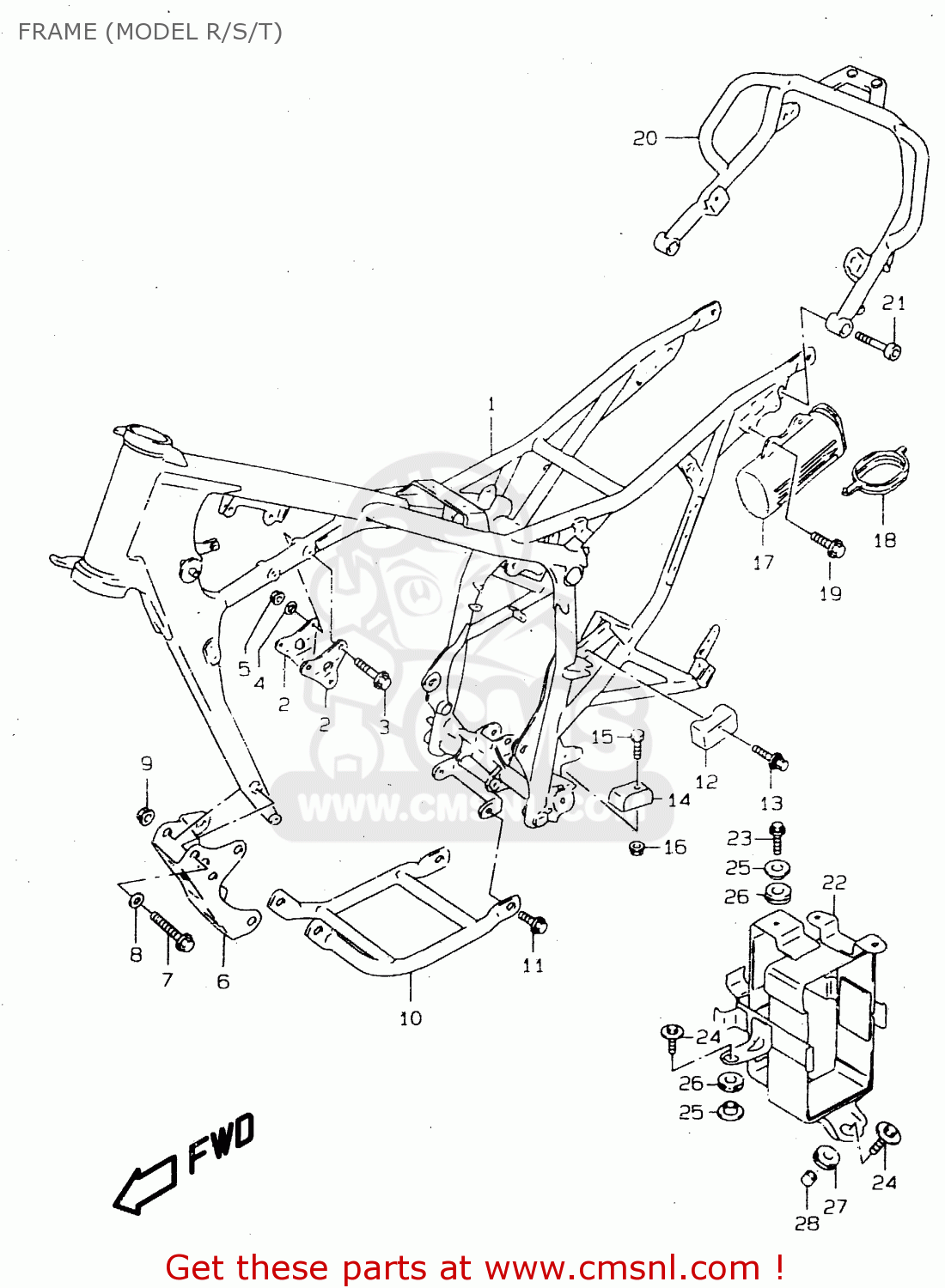

Frame (model r/s/t) diagram DR125SEU 1998 (W) GERMANY (E22)
FRAME (MODEL R/S/T) DR125SEU 1998 (W) GERMANY (E22)
×
prices are in EUR
ref
part #
description
quantity
1
4110044AA00NF
ref: 1
MODEL R/S
FRAME (BLUE)
€ 0.00
1
4110044AA0Z16
ref: 1
MODEL T
FRAME (PURPLE)
€ 0.00
1
4110044AE00NF
ref: 1
MODEL S E22
FRAME (BLUE)
€ 0.00
1
4110044AE0Z16
ref: 1
MODEL T E22
FRAME (PURPLE)
€ 0.00
2
4199144A00291
ref: 2
PLATE,ENGINE MOUNT UPR
€ 10.00
3
0910308327
ref: 3
MODEL R
BOLT M8X52
€ 3.50
3
0910308332
ref: 3
MODEL S/T
BOLT(8X53)
€ 3.50
4
0832101083
ref: 4
LOCK WASHER
€ 2.50
5
0831931083
ref: 5
NUT
€ 2.50
6
4199244AA00NF
ref: 6
MODEL R/S
PLATE,ENGINE MOUNTING
€ 0.00
6
4199244AA0Z16
ref: 6
MODEL T
PLATE,ENGINE MOUNTING
€ 0.00
7
0910308328
ref: 7
BOLT(8X65)
€ 4.00
8
0832101083
ref: 8
LOCK WASHER
€ 2.50
9
0831931083
ref: 9
NUT
€ 2.50
10
4251044AA00NF
ref: 10
MODEL R/S
PROTECTOR COMP,ENGINE
€ 0.00
10
4251044AA0Z16
ref: 10
MODEL T
PROTECTOR COMP,ENGINE
€ 149.00
11
0155010203
ref: 11
MODEL R/S
BOLT
€ 2.50
11
0155010163
ref: 11
MODEL T
BOLT
€ 2.50
12
4391144A00
ref: 12
GUIDE,CH CONTROL UPR
€ 12.00
13
0158006353
ref: 13
BOLT
€ 3.50
14
4391244A00
ref: 14
GUIDE,CH LENGTH CONTROL LWR
€ 14.50
15
0150006203
ref: 15
BOLT
€ 2.00
16
0831931063
ref: 16
NUT
€ 2.50
17
4155138200
ref: 17
HOLDER,TOOL
€ 17.00
18
4155237210
ref: 18
CAP,HOLDER
€ 5.00
19
0911606085
ref: 19
MODEL R
BOLT M6X16
€ 2.50
19
0911606144
ref: 19
MODEL S/T
BOLT 6X16
€ 2.50
20
4398044AB01TS
ref: 20
MODEL R
GRIP,REAR
€ 187.50
20
4398044AB21TS
ref: 20
MODEL S/T
GRIP,RR
€ 187.50
21
0910608105
ref: 21
BOLT(8X30)
€ 3.00
22
4154044AA0
ref: 22
HOLDER,BATTERY
€ 0.00
23
0155006203
ref: 23
BOLT
€ 2.50
24
0911606047
ref: 24
BOLT(6X25)
€ 2.00
25
4157047D00
ref: 25
SPACER COMP,BATTERY
€ 3.00
26
0932008021
ref: 26
CUSHION
€ 4.00
27
0932010043
ref: 27
CUSHION
€ 5.50
28
0918006210
ref: 28
SPACER (6.8X10X9)
€ 2.50
