CYLINDER

DR125SEU 2000 (Y)

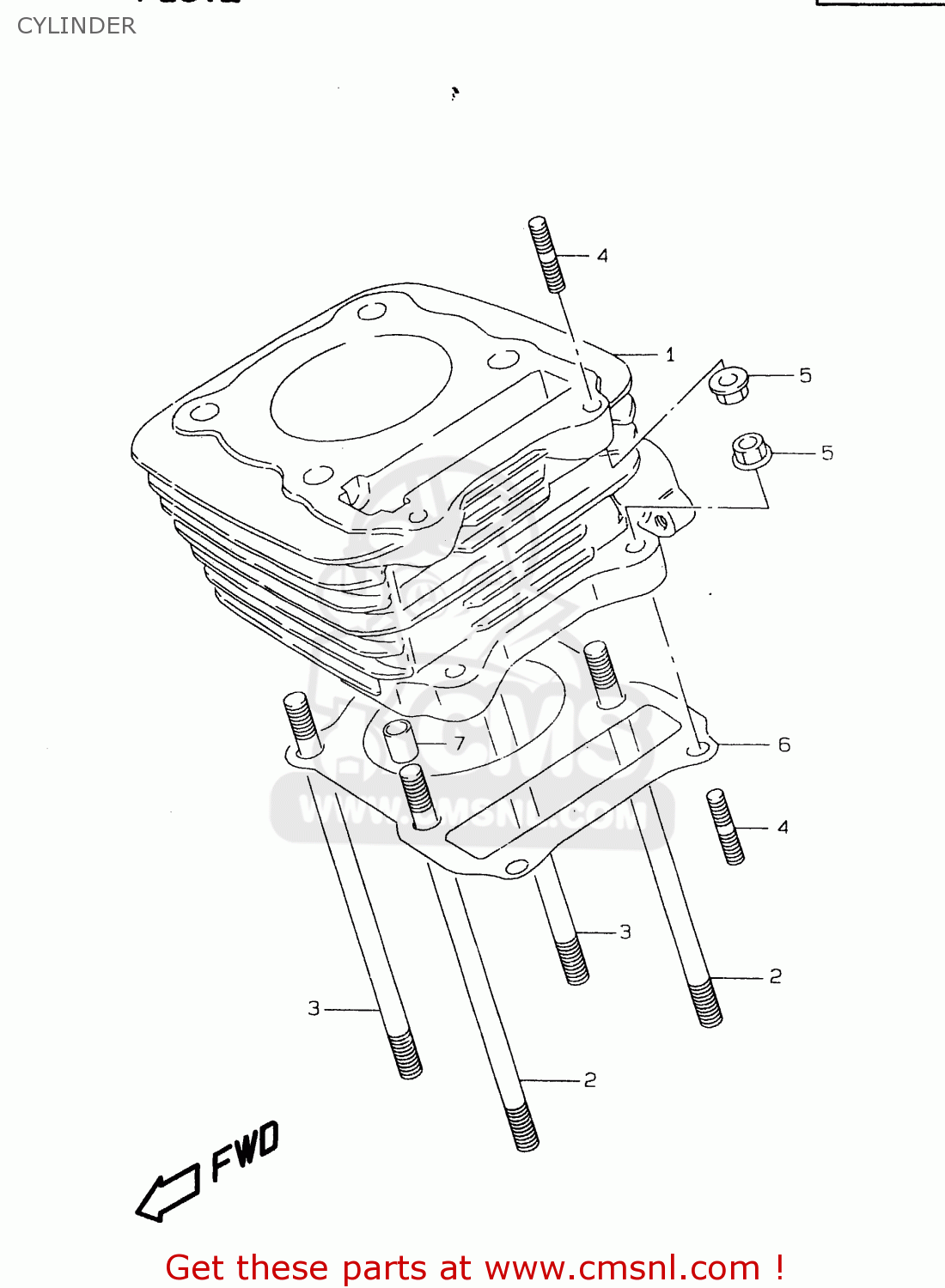

Cylinder diagram DR125SEU 2000 (Y)

CYLINDER DR125SEU 2000 (Y)
CYLINDER DR125SEU 2000 (Y)
CYLINDER DR125SEU 2000 (Y)
prices are in EUR
ref
part #
description
quantity
1
1121044A10
ref: 1
CYLINDER COMP
€ 292.50
2
0910808062
ref: 2
BOLT,STUD
0910808062
€ 4.50
3
0910808089
ref: 3
BOLT,STUD
0910808089
€ 6.00
4
0142106253
ref: 4
STUD BOLT
0142106253
€ 2.00
5
0831610063
ref: 5
NUT
0831610063
€ 2.50
6
1124105311
ref: 6
<-11241-05310
GASKET,CYLINDER (NAS)
1124105311
€ 4.50
7
0421111149
ref: 7
PIN
0421111149
€ 2.00
