CARBURETOR

DR200 1986 (G)

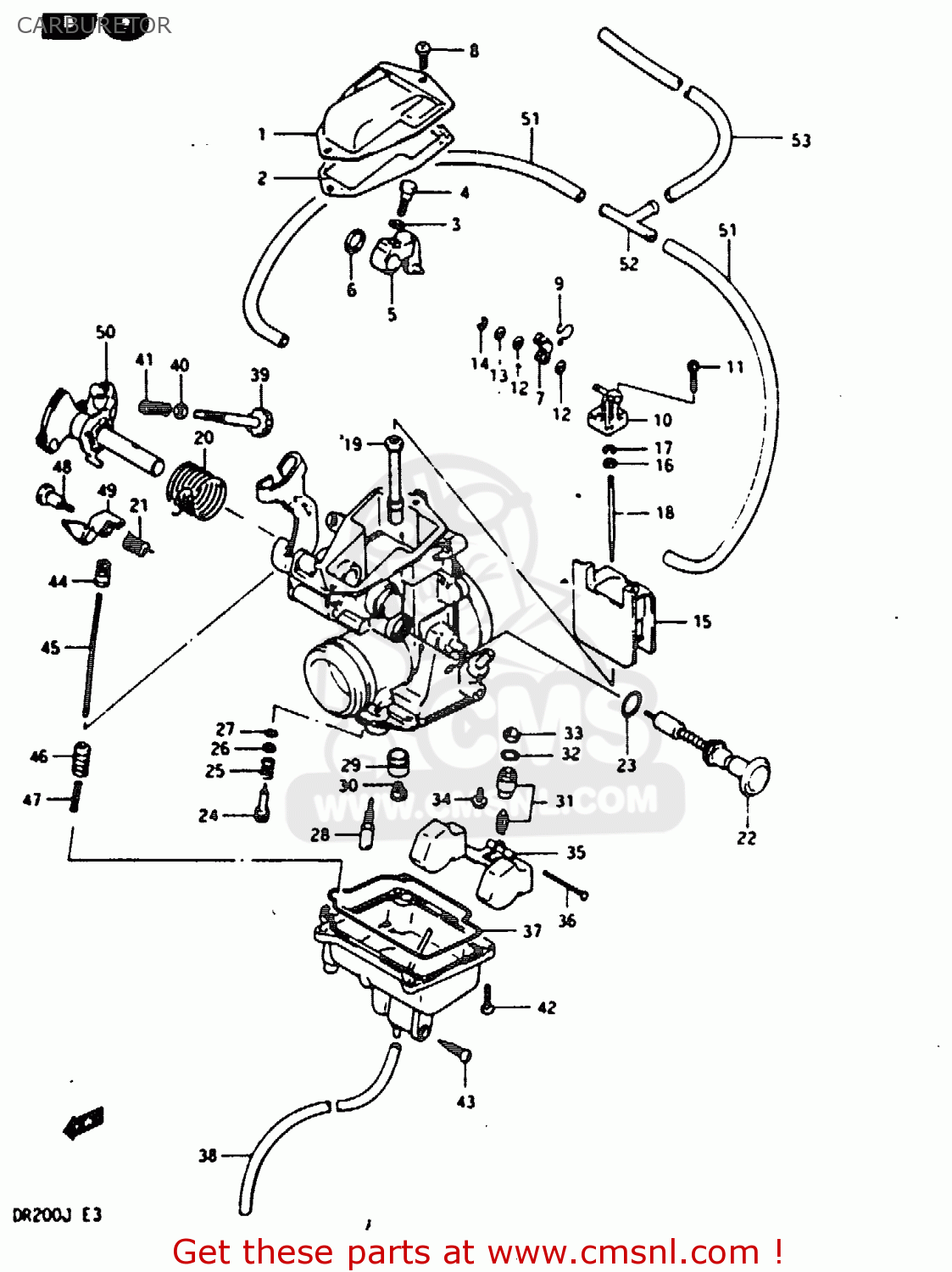

Carburetor diagram DR200 1986 (G)

CARBURETOR DR200 1986 (G)
CARBURETOR DR200 1986 (G)
CARBURETOR DR200 1986 (G)
prices are in EUR
ref
part #
description
quantity
0
1320042A20
ref: 0
MODEL G
CARBURETOR ASSEMBLY
€ 450.50
0
1320042A21
ref: 0
MODEL H/J
CARBURETOR ASSEMBLY (TM28)
€ 450.50
1
1326127A00
ref: 1
COVER,CARBURETOR,TOP
€ 14.50
2
1326627A00
ref: 2
GASKET,CARBURETOR TOP (NAS)
1326627A00
€ 6.00
3
1361445010
ref: 3
WASHER
€ 2.50
4
1361343010
ref: 4
BOLT
€ 1.50
5
1354114A00
ref: 5
ARM,THROTTLE
1354114A00
€ 34.50
6
1357438200
ref: 6
RING,THROTTLE SHAFT
1357438200
€ 4.00
7
1344714A00
ref: 7
PLATE
1344714A00
€ 16.50
8
1360127A00
ref: 8
SCREW
€ 2.00
9
1326827A00
ref: 9
SPRING
€ 4.00
10-1
1339842A20
ref: 10-1
MODEL G
CONNECTOR
€ 0.00
10-2
1339827A02
ref: 10-2
MODEL H/J
CONNECTOR
1339827A02
€ 18.00
11
1356614A00
ref: 11
SCREW
€ 2.50
12
1344514A00
ref: 12
GASKET (NAS)
1344514A00
€ 3.00
13
1344914A00
ref: 13
WASHER
€ 2.00
14
1329849000
ref: 14
E-RING
€ 2.00
15-1
1355142A20
ref: 15-1
MODEL G
VALVE,THROTTLE
€ 126.00
15-2
1355142A21
ref: 15-2
MODEL H/J
VALVE,THROTTLE
€ 126.00
16
1338247010
ref: 16
WASHER,JET NEEDLE
1338247010
€ 3.00
17
1339410010
ref: 17
CLIP
1339410010
€ 4.50
18
1338342A20
ref: 18
NEEDLE,JET
€ 10.50
19
0949400513
ref: 19
JET,NEEDLE (P-6)
€ 26.50
20
1357342A20
ref: 20
SPRING
€ 9.00
21
1349427A00
ref: 21
SPRING,PLUNGER
1349427A00
€ 6.00
22
1341142A20
ref: 22
PLUNGER ASSY
1341142A20
€ 26.50
23
1327847090
ref: 23
O RING
1327847090
€ 2.00
24
1327947070
ref: 24
SCREW,PILOT
1327947070
€ 11.50
25
1326847070
ref: 25
SPRING
1326847070
€ 5.00
26
1327744080
ref: 26
GASKET
€ 2.00
27
1327844080
ref: 27
O-RING
€ 4.00
28
0949225008
ref: 28
JET
€ 8.50
29
1333113A00
ref: 29
RING,MAIN JET FIXING
1333113A00
€ 5.50
30
0949123011
ref: 30
JET,MAIN(115)
0949123011
€ 10.50
31
1337037100
ref: 31
VALVE ASSEMBLY,NEEDLE
1337037100
€ 63.00
32
6626399050
ref: 32
O RING
6626399050
€ 6.00
33
1337665010
ref: 33
FILTER
€ 6.50
34
1360243410
ref: 34
SCREW
1360243410
€ 2.50
35
1325227A00
ref: 35
FLOAT
€ 27.00
36
1325492311
ref: 36
PIN,FLOAT
1325492311
€ 2.00
37
1325127A00
ref: 37
O RING,FLOAT CHAMBER
1325127A00
€ 9.00
38
1368418900
ref: 38
L:500@r375
HOSE
€ 13.50
39
1326701400
ref: 39
SCREW,THROTTLE STOP
1326701400
€ 10.00
40
1342738300
ref: 40
WASHER
1342738300
€ 1.50
41
1326849310
ref: 41
SPRING
€ 4.50
42
1360104148
ref: 42
SCREW
1360104148
€ 2.50
43
1324713A00
ref: 43
SCREW,DRAIN
1324713A00
€ 5.50
44
1349944500
ref: 44
BOOT, ACCELE PUMP ROD
1349944500
€ 11.00
45
1348714A00
ref: 45
ROD,PLUNGER
1348714A00
€ 7.00
46
1349327A00
ref: 46
PLUNGER
1349327A00
€ 9.00
47
1327109400
ref: 47
SPRING
1327109400
€ 4.50
48
1361314A00
ref: 48
BOLT
1361314A00
€ 8.00
49
1349014A00
ref: 49
LEVER
1349014A00
€ 9.50
50
1355342A20
ref: 50
SHAFT ASSEMBLY
€ 0.00
51
1368342A30
ref: 51
HOSE
€ 13.00
52
0936706002
ref: 52
JOINT,3 WAY
0936706002
€ 3.00
53
1368342A20
ref: 53
HOSE
€ 13.00
