STAND - REAR BRAKE
DR200 1986 (G)

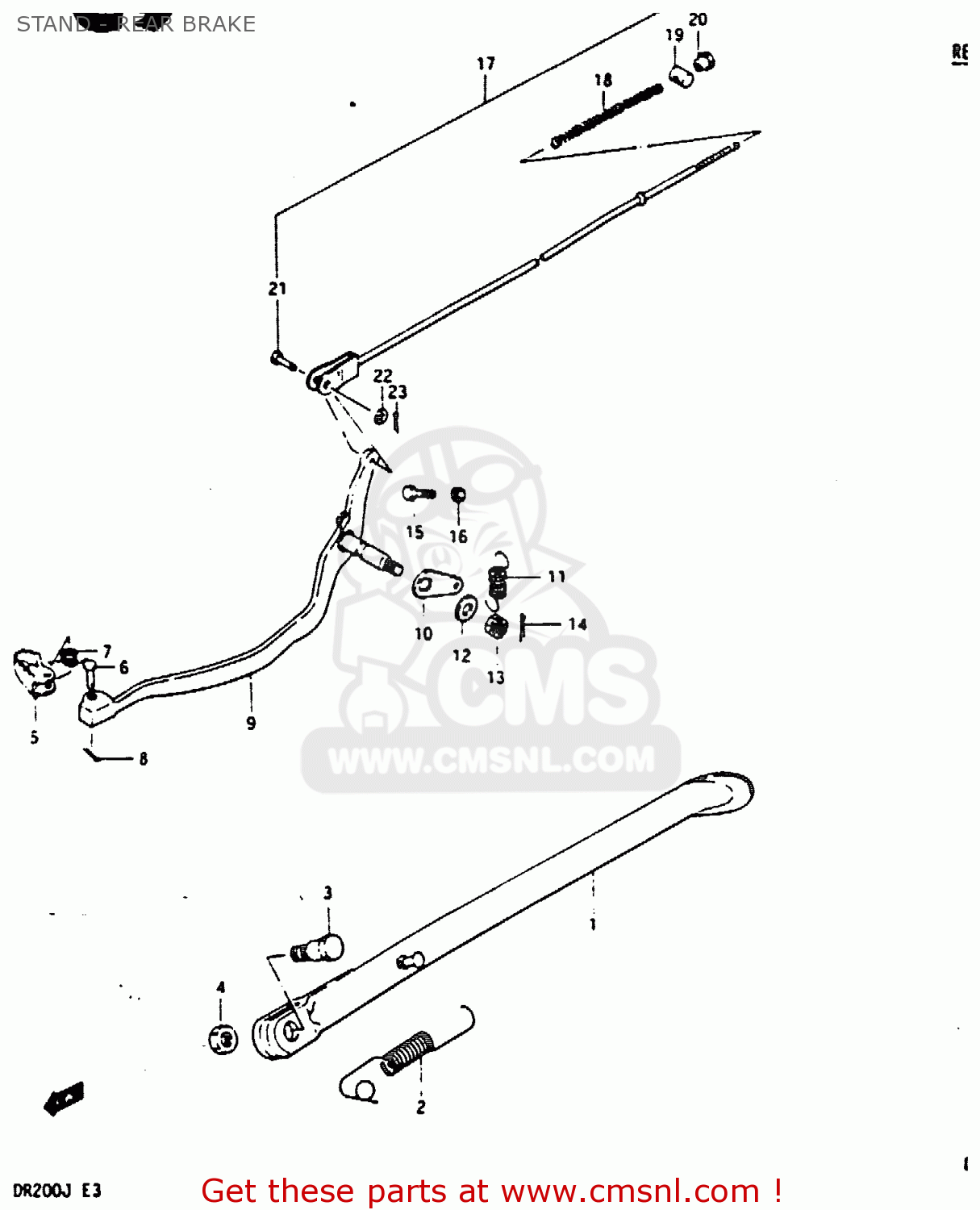

Stand - rear brake diagram DR200 1986 (G)
STAND - REAR BRAKE DR200 1986 (G)
×
prices are in EUR
ref
part #
description
quantity
1-1
4231042A0019F
ref: 1-1
MODEL G
STAND,SIDE
€ 26.00
1-2
4231042A0013L
ref: 1-2
MODEL H
STAND COMP,PROP
€ 26.00
1-3
4231042A0034S
ref: 1-3
MODEL J
STAND,SIDE
€ 26.00
2
0944317007
ref: 2
SPRING
€ 4.50
3-1
0911110019
ref: 3-1
MODEL G
BOLT L:30
€ 4.50
3-2
0911110038
ref: 3-2
MODEL H/J
BOLT L:30
€ 4.50
4
0831022107
ref: 4
NUT
€ 2.50
5
4311014130
ref: 5
PEDAL,BRAKE
€ 6.00
6
0920006038
ref: 6
PIN
€ 2.00
7
0944411004
ref: 7
SPRING
€ 3.00
8
0411120158
ref: 8
PIN
€ 1.50
9
4312044A01
ref: 9
ARM,BRAKE PEDAL
€ 27.00
10
4312838200
ref: 10
ARM,BRAKE RETURN SPRING
€ 3.50
11
0944314002
ref: 11
SPRING
€ 2.50
12
0821108202
ref: 12
WASHER
€ 1.50
13
0831441088
ref: 13
NUT 8MM
€ 2.50
14
0411120208
ref: 14
PIN 20X20
€ 1.50
15
0910006009
ref: 15
BOLT(6X23)
€ 1.50
16
0831011067
ref: 16
NUT 6MM
€ 2.50
17
4330042A01
ref: 17
ROD ASSEMBLY,REAR BRAKE
€ 12.50
18
0944009004
ref: 18
SPRING
€ 2.00
19
0920913005
ref: 19
PIN
€ 3.50
20
0915006009
ref: 20
NUT (6MM)
€ 3.50
21
0920006013
ref: 21
PIN(L:13.5)
€ 2.00
22
0832221067
ref: 22
WASHER
€ 2.00
23
0411120208
ref: 23
PIN 20X20
€ 1.50
