FRAME COVER (MODEL K9)

DR200SE 2008 (K8) USA (E03)

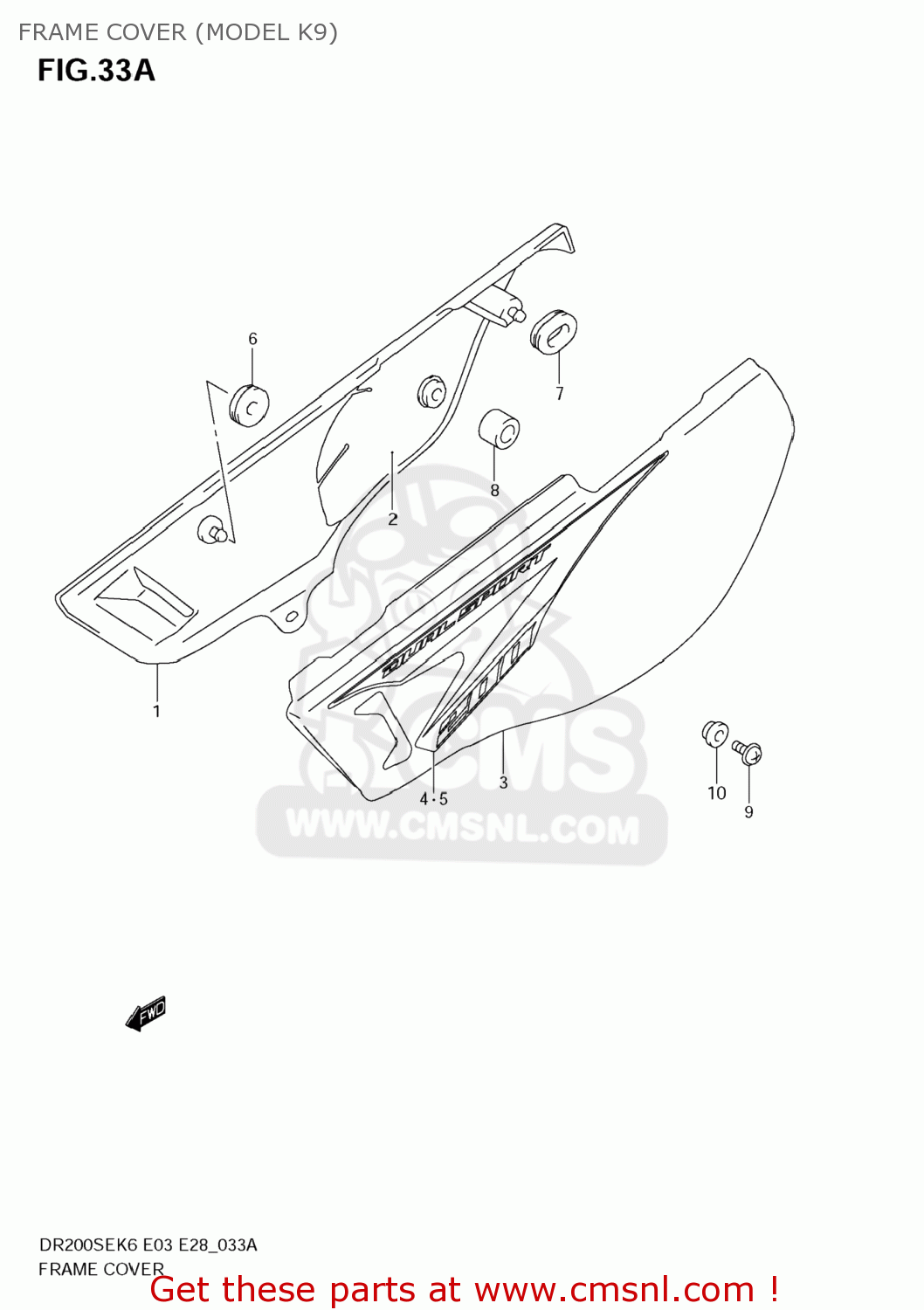

Frame cover (model k9) diagram DR200SE 2008 (K8) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

4711144AC0019
ref: 1-1

COVER,FRAME,R(BLACK)

€ 59.50

1-2

4711144AC030H
ref: 1-2

COVER,FRAME,R(WHITE)

€ 61.50

4716644AA0
ref: 2

SHIELD,FRAME COVER,R

€ 14.50

3-1

4721144AB0019
ref: 3-1

COVER,FRAME,L(BLACK)

€ 40.50

3-2

4721144AB030H
ref: 3-2

COVER,FRAME,L(WHITE)

€ 42.00

4-1

6813542A30GJD
ref: 4-1

TAPE,FRAME COVER,R

€ 18.00

4-2

6813542A30GJE
ref: 4-2

TAPE,FRAME COVER,R

€ 0.00

5-1

6814542A30GJD
ref: 5-1

TAPE,FRAME COVER,L

€ 18.00

5-2

6814542A30GJE
ref: 5-2

TAPE,FRAME COVER,L

€ 0.00

0932008018
ref: 6

CUSHION

€ 4.00

0932008029
ref: 7

CUSHION

€ 2.50

0932110027
ref: 8

CUSHION

€ 5.50

0913606017
ref: 9

SCREW(6X16)

€ 2.50

0916906031
ref: 10
09169-06041

WASHER

€ 2.00
