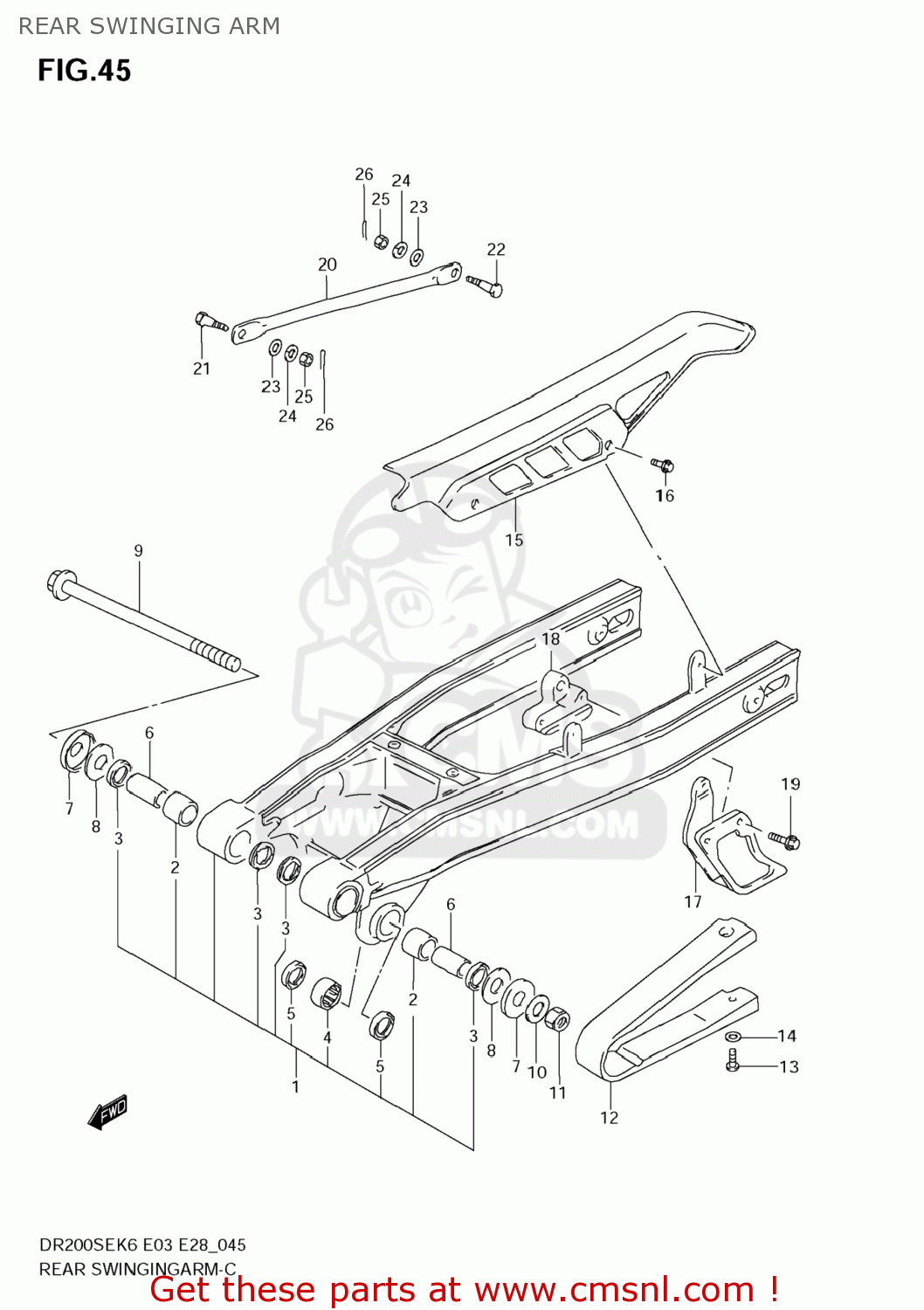

REAR SWINGING ARM

ref

part #

description

quantity

1

6110042840
ref: 1

SWINGINGARM ASSY,RR

€ 333.50

2

6126113700
ref: 2

BUSHING,RR SWGARM PIVOT

€ 8.00

3

0928320031
ref: 3

SEAL,OIL(20X27X5)

€ 5.00

4

0926320053
ref: 4

BEARING(20X27X25)

€ 15.50

5

6264744A00
ref: 5

SEAL,CUSHION LEVER OUT DUST

€ 3.50

6

6125142A00
ref: 6

SPACER,RR SWGARM PVT

€ 9.50

7

6126240400
ref: 7

COVER,RR SWGARM DUST SEAL

€ 4.00

8

0821114322
ref: 8

WASHER

€ 2.50

9

6121126B01
ref: 9

SHAFT,RR SWINGINGARM PIVOT

€ 16.50

10

0916014057
ref: 10

WASHER(14.5X24X2.3)

€ 2.50

11

0915914019
ref: 11

NUT

€ 8.50

12

6127342A01
ref: 12

BUFFER,CHAIN TOUCH DEFENSE

€ 16.50

13

021420620B
ref: 13

SCREW

€ 2.00

14

0916906037
ref: 14

WASHER

€ 6.50

15

6131101A03
ref: 15

CASE,CHAIN

€ 33.50

16

0911606096
ref: 16

BOLT(6X10)

€ 2.00

17

6134113A10
ref: 17

GUIDE,CHAIN

€ 20.00

18

6134542A00
ref: 18

RUBBER,CHAIN GUIDE

€ 7.50

19

015500620B
ref: 19

BOLT

€ 2.50

20

6431142A0013L
ref: 20

TORQUELINK,RR

€ 11.50

21

0911108088
ref: 21

BOLT(8X28)

€ 0.00

22

0911108013
ref: 22

BOLT(8X26.5)

€ 3.00

23

083220108B
ref: 23

WASHER

€ 1.50

24

0916208008
ref: 24

WASHER,LOCK

€ 2.00

25

0914008008
ref: 25

NUT

€ 1.50

26

041112020A
ref: 26

PIN

€ 1.50
