MAGNETO
DR200SE 2009 (K9) USA (E03)

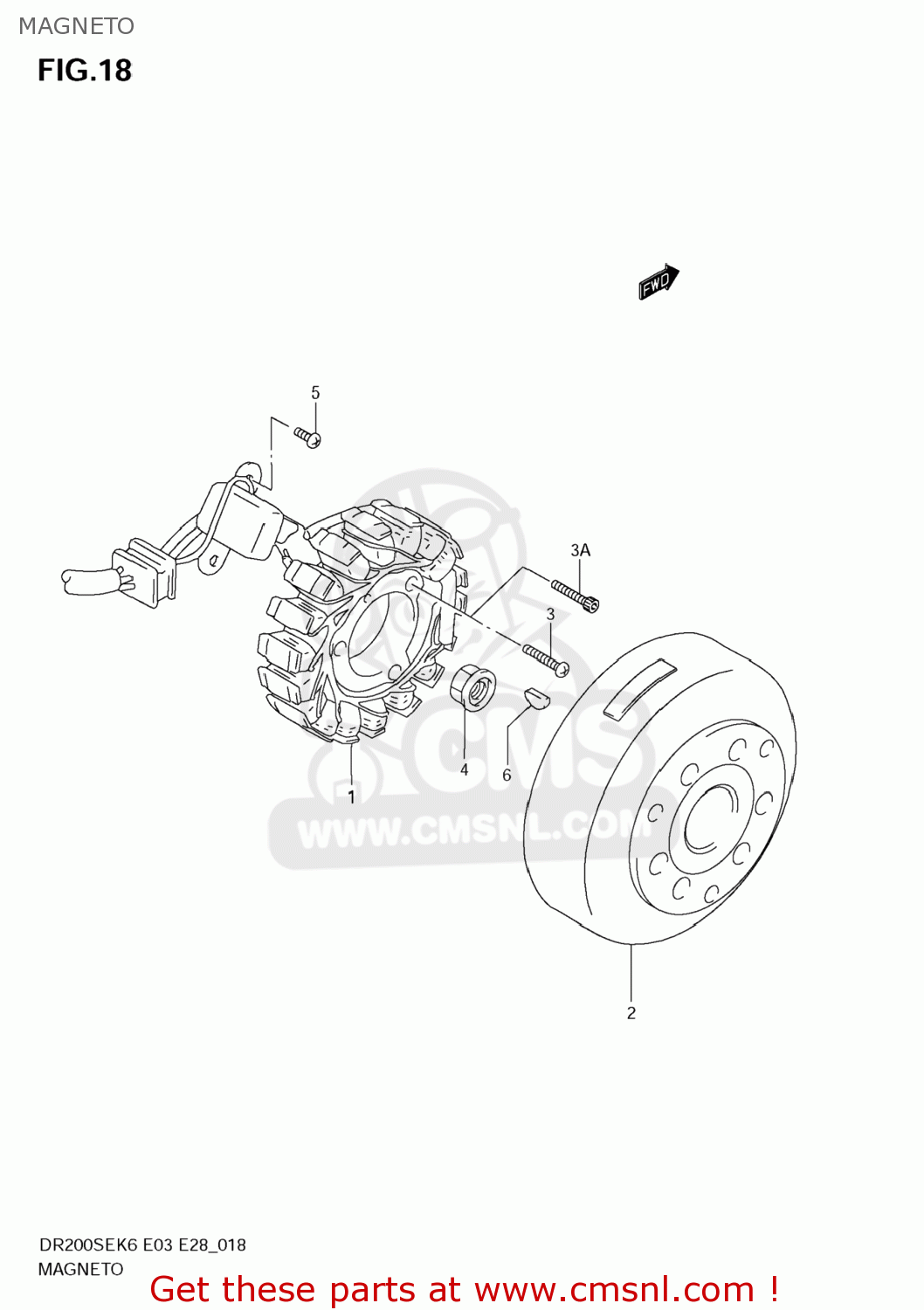

Magneto diagram DR200SE 2009 (K9) USA (E03)
MAGNETO DR200SE 2009 (K9) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
3210142A30
ref: 1-1
32101-42A40
STATOR ASSEMBLY
€ 458.50
1-2
3210142A40
ref: 1-2
STARTER ASSY
€ 458.50
2
3210242A30
ref: 2
ROTOR ASSY
€ 0.00
3
021120525B
ref: 3
SCREW
€ 1.50
3A
071300525B
ref: 3A
BOLT
€ 2.00
4
3179226F10
ref: 4
NUT,MAGNETO ROTOR
€ 2.50
5
021120512B
ref: 5
SCREW
€ 2.00
6
0942003008
ref: 6
KEY
€ 2.50
