DR200SE 2009 (K9) USA (E03)

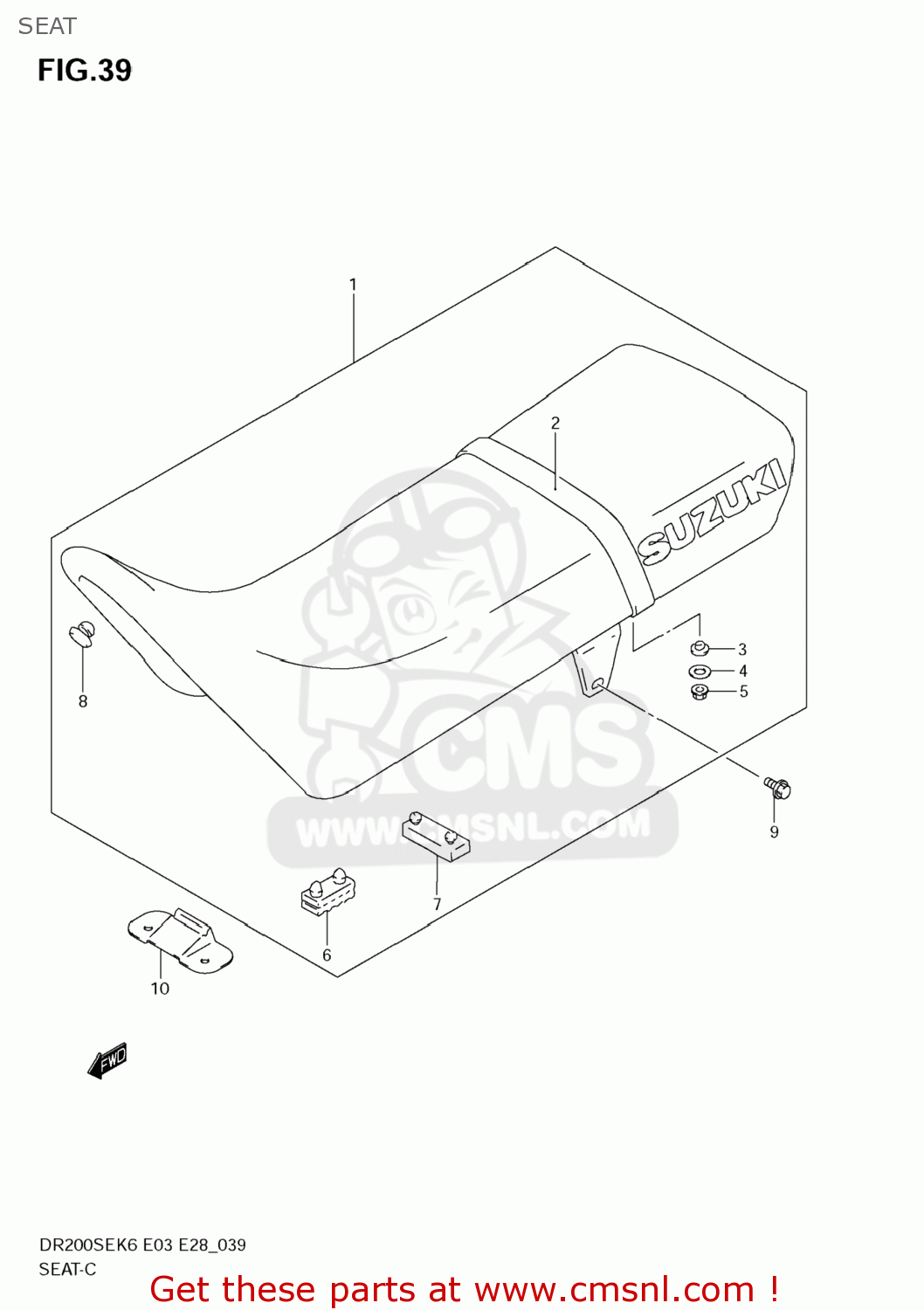

Seat diagram DR200SE 2009 (K9) USA (E03)
SEAT DR200SE 2009 (K9) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
4510042AP0CEP
ref: 1-1
SEAT ASSY
€ 0.00
1-2
4510042AP0BDL
ref: 1-2
SEAT SET
€ 0.00
1-3
4510042AP0DTU
ref: 1-3
SEAT ASSY
€ 0.00
1-4
4510042AP0DUY
ref: 1-4
SEAT ASSY
€ 0.00
1-5
4510042AP0DUZ
ref: 1-5
SEAT ASSY
€ 280.50
1-6
4510042AP0FCB
ref: 1-6
SEAT ASSY
€ 280.50
1-6
4510042AP0FCB
ref: 1-6
SEAT ASSY
€ 280.50
2
4518042AA0P21
ref: 2
BAND,SEAT(BLACK)
€ 0.00
3
0916906071
ref: 3
WASHER
€ 2.50
4
0821206201
ref: 4
WASHER
€ 1.50
5
083162006A
ref: 5
NUT
€ 2.00
6
4514931300
ref: 6
CUSHION,SEAT(40X20X15)
€ 2.00
7
4514943500
ref: 7
CUSHION,SEAT
€ 3.00
8
0932910001
ref: 8
CUSHION
€ 2.50
9
015500812B
ref: 9
BOLT
€ 3.50
10
4511942A00
ref: 10
PLATE,SEAT FR HOOK
€ 5.00
