CRANKCASE
DR250 1991 (M) USA (E03)

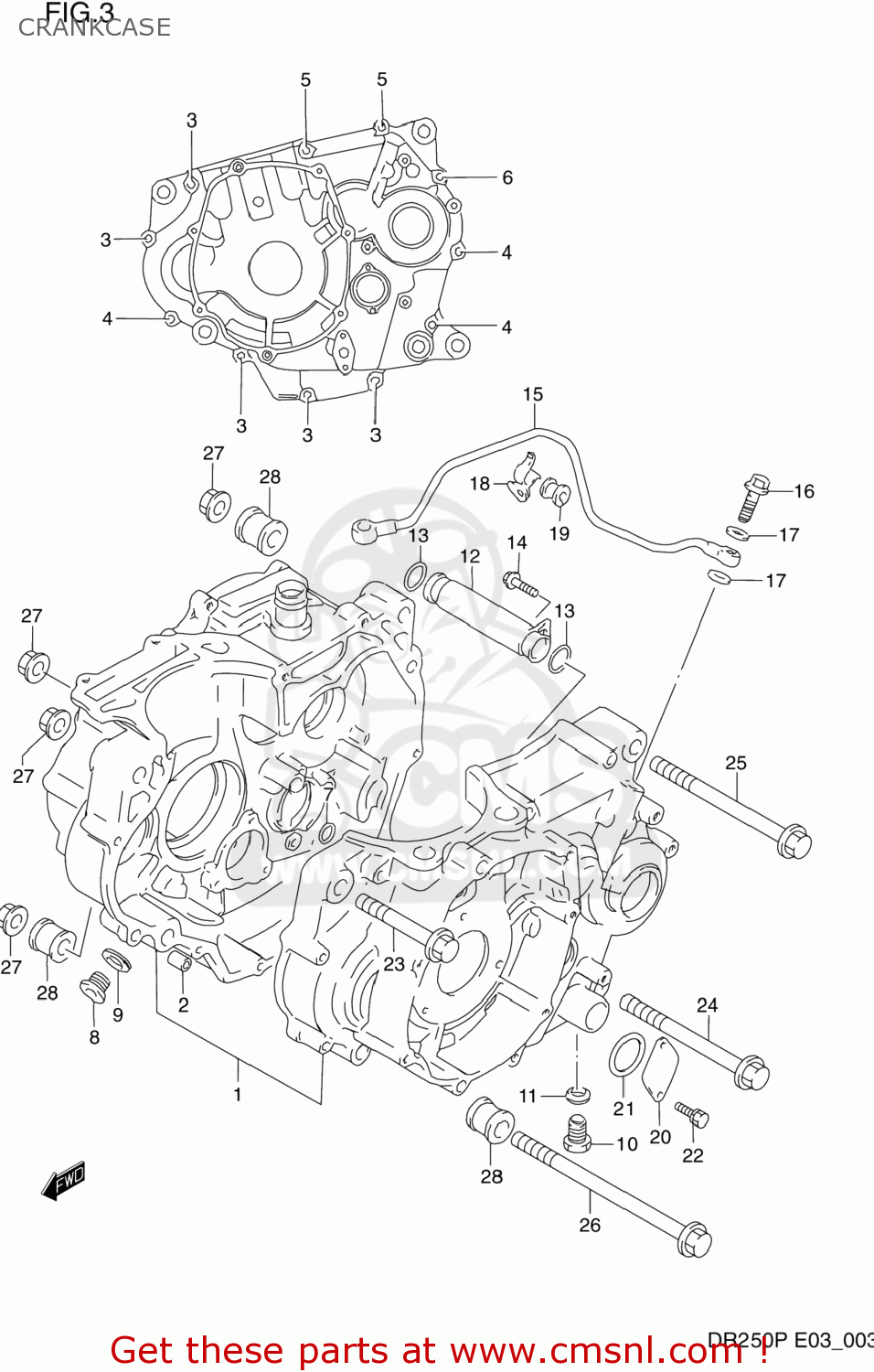

Crankcase diagram DR250 1991 (M) USA (E03)
CRANKCASE DR250 1991 (M) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
1130114870
ref: 1-1
11301-14873
CRANKCASE SET
€ 491.00
1-2
1130114880
ref: 1-2
11301-14883
CRANKCASE SET
€ 798.00
1-3
1130114881
ref: 1-3
11301-14883
CRANKCASE SET
€ 798.00
1-4
1130114882
ref: 1-4
11301-14883
CRANKCASE SET
€ 798.00
2
0421109149
ref: 2
PIN
€ 2.00
3
0154706457
ref: 3
BOLT
€ 2.50
4
0154706507
ref: 4
BOLT
€ 2.50
5
0154706607
ref: 5
BOLT
€ 2.50
6
0154706707
ref: 6
BOLT
€ 2.50
7
0928013007
ref: 7
09280-12009
O-RING
€ 2.50
8
0924814005
ref: 8
PLUG,14X12
€ 5.00
9
0916814004
ref: 9
GASKET(14X19.2X2) (NAS)
€ 2.50
10
0110412205
ref: 10
01500-1220B
PLUG,OIL DRN.
€ 3.00
11
0916812002
ref: 11
GASKET(12.1X16.2X3.7) (NAS)
€ 2.00
12
1145014D01
ref: 12
PIPE,T/M OIL INNER
€ 11.50
13
0928016005
ref: 13
O RING(D:2.4,ID:15.8)
€ 1.50
14
0151706128
ref: 14
01550-06127
BOLT
€ 2.50
15
1128014D02
ref: 15
PIPE,T/M OIL OUTER
€ 55.00
16
0936008011
ref: 16
BOLT UNION
€ 4.00
17
0916808008
ref: 17
09168-08016
GASKET 8.2X14X1 (NAS)
€ 1.00
18
1129014D00
ref: 18
CLAMP,OIL PIPE
€ 6.00
19
0932006019
ref: 19
CUSHION
€ 12.50
20
1138514D00
ref: 20
CAP,NEUTRAL SWITCH HOLE
€ 4.00
21
0928026005
ref: 21
O RING(D:2.4,ID:26.2)
€ 2.50
22
0154705105
ref: 22
01547-0510B
BOLT
€ 2.50
23
0910310230
ref: 23
09103-10083
BOLT 10X85
€ 6.00
24-1
0910310231
ref: 24-1
09103-10242
BOLT
€ 6.50
24-2
0910310242
ref: 24-2
BOLT(10X101.5)
€ 6.50
25
0910310063
ref: 25
BOLT(10X115)
€ 5.00
26-1
0910310187
ref: 26-1
09103-10241
BOLT
€ 6.00
26-2
0910310241
ref: 26-2
BOLT(10X143)
€ 6.00
27
0915910058
ref: 27
09159-10115
NUT
€ 4.00
28-1
1161136A30
ref: 28-1
11611-14D00
SPACER,ENGINE MOUNT
€ 15.50
28-2
1161114D00
ref: 28-2
SPACER,ENGINE MOUNTING
€ 15.50
