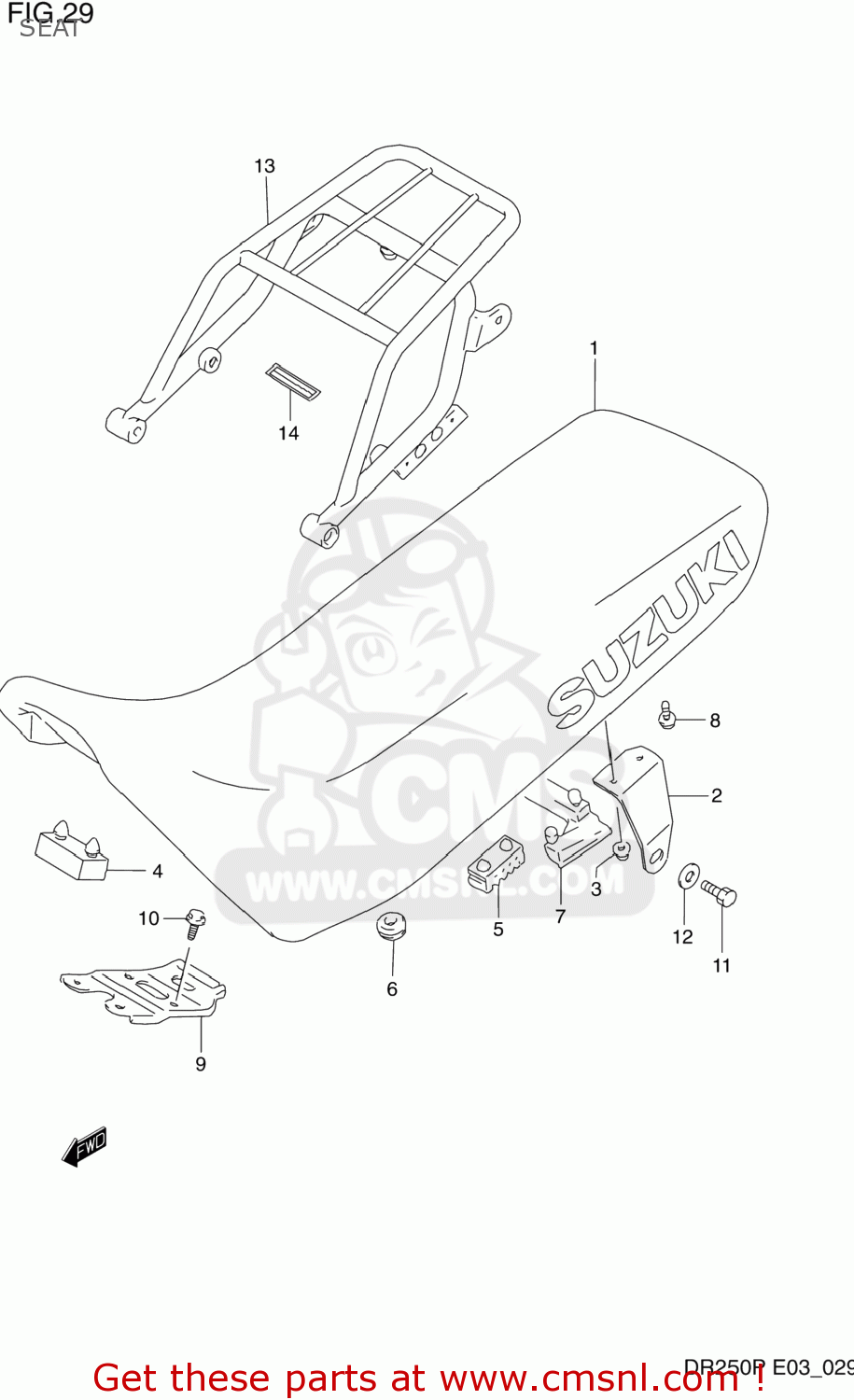

SEAT

ref

part #

description

quantity

1-1

4510014D00A38
ref: 1-1
45100-15D00-G56

SEAT ASSEMBLY

€ 257.00

1-2

4510014D00G56
ref: 1-2

SEAT SET

€ 257.00

1-3

4510014D00N12
ref: 1-3
45100-14D00-G56

SEAT SET

€ 257.00

2-1

4511614D00
ref: 2-1

BRACKET,SEAT,R

€ 8.00

2-2

4511714D00
ref: 2-2

BRACKET,SEAT,L

€ 8.00

3

0831616066
ref: 3
08316-1006B

NUT

€ 2.50

4-1

0932108006
ref: 4-1

CUSHION

€ 3.00

4-2

0932108006
ref: 4-2

CUSHION

€ 3.00

5

4514931300
ref: 5

CUSHION,SEAT(40X20X15)

€ 2.00

6

0932008013
ref: 6

CUSHION

€ 4.00

7

4525514D00
ref: 7

CUSHION

€ 30.00

8

0151706108
ref: 8
01550-06107

BOLT

€ 2.50

9

4512014D00
ref: 9

PLATE,SEAT FR HOOK

€ 12.00

10

0151708126
ref: 10
01550-0812A

BOLT

€ 3.50

11

0110708125
ref: 11
01500-0812A

BOLT

€ 1.50

12

0832211084
ref: 12
08322-0108A

WASHER

€ 1.50

13-1

4631015D020RP
ref: 13-1
46310-15D30-1AZ

CARRIER

€ 618.00

13-2

4631015D031AZ
ref: 13-2
46310-15D30-1AZ

CARRIER,SUPPORT (YELLOW)

€ 618.00

13-3

4631015D031TS
ref: 13-3

CARRIER,SPORT

€ 196.00

14

6839114D00
ref: 14

LABEL,WARNING

€ 0.00

all assemblies
