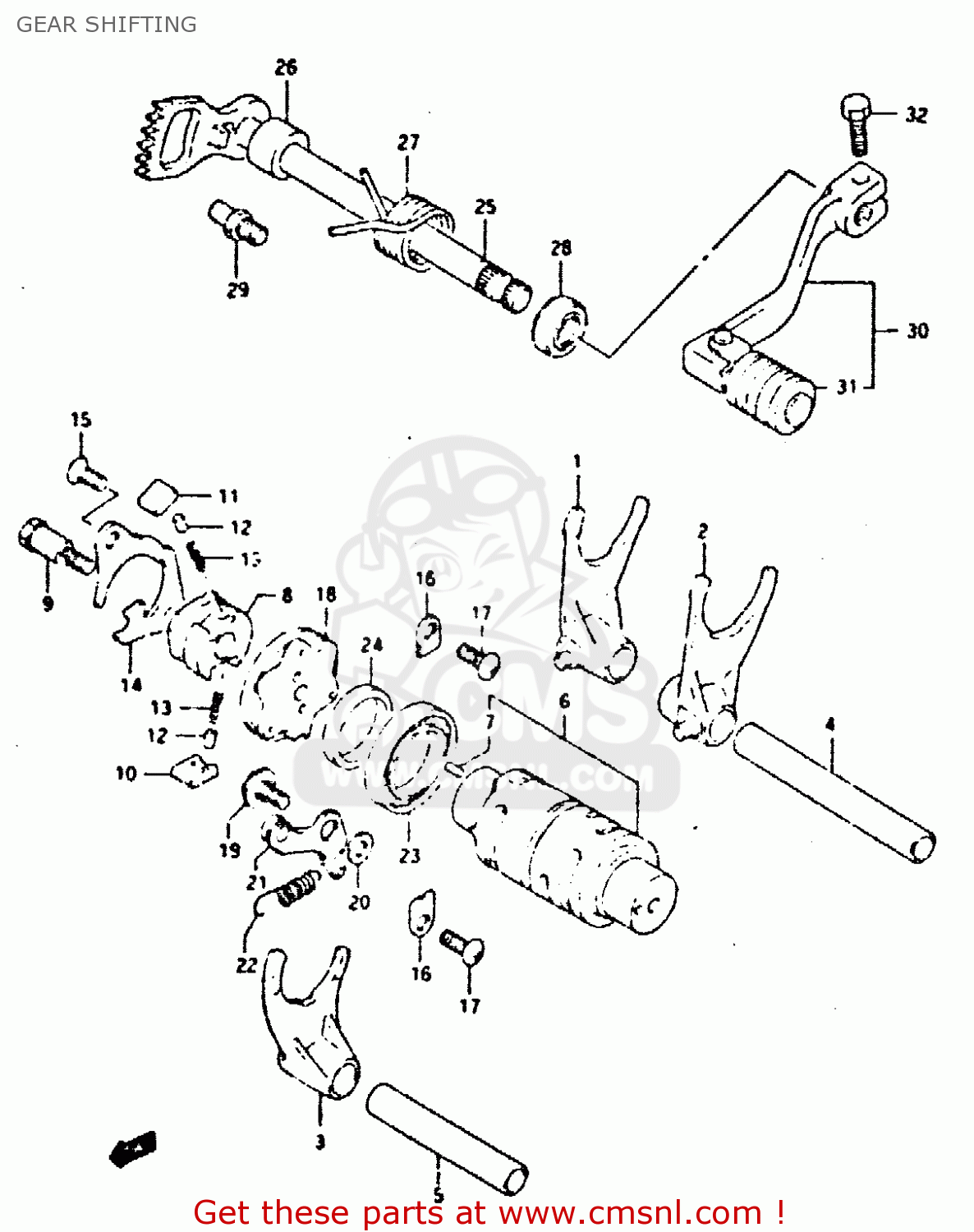

GEAR SHIFTING

ref

part #

description

quantity

1

2521114D01
ref: 1

FORK,GEAR SHIFT NO.1

€ 71.50

2

2522114D02
ref: 2

FORK,GEAR SHIFT NO.2

€ 71.50

3

2523114D01
ref: 3

FORK,GEAR SHIFT NO.3

€ 71.50

4

2541127C00
ref: 4

SHAFT,GEAR SHIFT FORK

€ 11.50

5

2542114D00
ref: 5

SHAFT,GEAR SHIFT FORK(L:70)

€ 18.00

6

2531014D01
ref: 6

CAM,GEAR SHIFT

€ 117.00

7

0422104089
ref: 7

PIN

€ 1.50

8

2532231301
ref: 8

GEAR,GEARSHIFT CAM DRIVE

€ 14.50

9

2531238A00
ref: 9

PIN,SHIFT CAM DRIVEN GEAR

€ 4.00

10

2532334201
ref: 10

PAWL,GEAR SHIFT NO.1

€ 6.00

11

2532434201
ref: 11

PAWL,GEAR SHIFT NO.2

€ 6.00

12

0926105003
ref: 12

PIN(5X8)

€ 1.50

13

0944004003
ref: 13

SPRING

€ 1.50

14

2533114D00
ref: 14

LIFTER,GEAR SHIFT PAWL

€ 16.50

15-1

0212206128
ref: 15-1
MODEL L/M/N/P/R

SCREW

€ 3.00

15-2

0212206123
ref: 15-2
MODEL S/T

SCREW

€ 3.00

16

2474121A00
ref: 16

RETAINER

€ 2.00

17-1

0211206128
ref: 17-1
MODEL L/M/N/P/R

SCREW 6X12

€ 2.00

17-2

0211206123
ref: 17-2
MODEL S/T

SCREW

€ 1.50

18

2538014D01
ref: 18

PLATE,GEAR SHIFT CAM

€ 33.00

19

0911106041
ref: 19

BOLT(6X14.3)

€ 3.00

20

0821106141
ref: 20

WASHER

€ 2.50

21

2535014D01
ref: 21

STOPPER,GEAR SHIFT CAM

€ 10.50

22

0944309026
ref: 22

SPRING

€ 3.00

23

0811369050
ref: 23

BEARING

€ 36.00

24

0916025068
ref: 24

WASHER(25X32X5.3)

€ 5.50

25

2551014D01
ref: 25

SHAFT,GEAR SHIFT

€ 83.50

26

0918012068
ref: 26

SPACER(12X20X15.3)

€ 3.00

27

0944426004
ref: 27

SPRING

€ 4.00

28

0928512002
ref: 28

OIL SEAL

€ 7.00

29

2567136A00
ref: 29

STOPPER,GEAR SHIFT ARM

€ 3.00

30-1

2560014D04
ref: 30-1
MODEL L/M/N

LEVER ASSY,GEAR SHIFT

€ 113.00

30-2

2560015D20
ref: 30-2
MODEL P/R/S/T

LEVER ASSY,GEAR SHIFT

€ 37.50

31

2565203D00
ref: 31

RUBBER,GEAR SHIFT PEDAL

€ 3.50

32-1

0110706205
ref: 32-1
MODEL L/M/N/P <09100

BOLT

€ 2.00

32-2

0150006203
ref: 32-2
MODEL R/S/T

BOLT

€ 2.00
