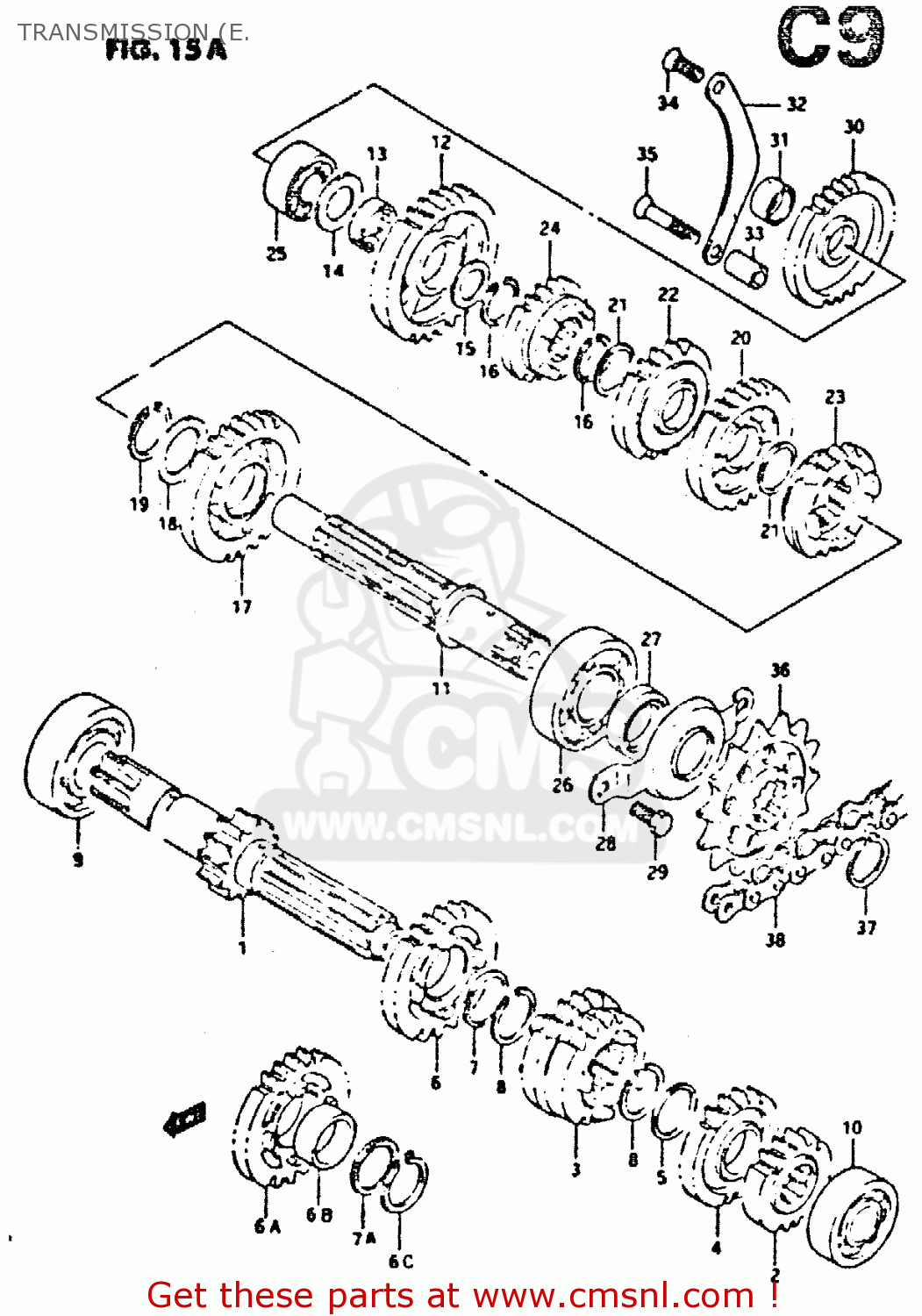

TRANSMISSION (E.

ref

part #

description

quantity

1

2412014D03
ref: 1

SHAFT,COUNTER(NT:12)

€ 117.00

2

2422114D00
ref: 2

GEAR,SECOND DRIVE (NT:15)

€ 88.50

3

2423114D00
ref: 3

GEAR,3RD & 4TH DRIVE(NT:18/18)

€ 108.00

4

2425114D00
ref: 4

GEAR,5TH DRIVE(NT:21)

€ 84.50

5

0821122261
ref: 5

WASHER

€ 3.00

6

2426014D00
ref: 6
MODEL L/M

GEAR COMP,SIXTH DRIVE

€ 72.00

6A

2426114D02
ref: 6A
MODEL N/P/R/S/T

GEAR,6TH DRIVE(NT:23)

€ 83.00

6B

0930022008
ref: 6B
MODEL N/P/R/S/T

BUSH(22X26X9)

€ 10.50

6C

0833131226
ref: 6C
MODEL N/P/R/S/T

CIRCLIP

€ 2.00

7

0821122281
ref: 7
MODEL L/M

SHIM

€ 4.00

7A

0821122301
ref: 7A
MODEL N/P/R/S/T

WASHER,THRUST

€ 3.00

8-1

0938022006
ref: 8-1
MODEL L/M

CIRCLIP

€ 3.00

8-2

0938022006
ref: 8-2
MODEL N/P/R/S/T

CIRCLIP

€ 3.00

9-1

0926220065
ref: 9-1
MODEL L/M/N/P

BEARING

€ 24.00

9-2

0926220116
ref: 9-2
MODEL R/S/T

BEARING 20X52X15

€ 24.00

10-1

0926217027
ref: 10-1
MODEL L/M/N/P

BEARING(17X40X12)

€ 25.00

10-2

0926217018
ref: 10-2
MODEL R/S/T

BEARING

€ 25.00

11

2413014D14
ref: 11
<24130-14D13

SHAFT,DRIVE

€ 179.00

12-1

2431114D00
ref: 12-1
MODEL L/M/N/P/R/S

GEAR,FIRST DRIVEN (NT:29)

€ 61.50

12-2

2431115D00
ref: 12-2
MODEL T

GEAR,1ST DRIVEN(NT:30)

€ 67.50

13

2431214D00
ref: 13

BUSH,1ST DRIVEN GEAR

€ 15.00

14

0821117322
ref: 14

WASHER

€ 2.50

15

0821122301
ref: 15

WASHER,THRUST

€ 3.00

16

0938022006
ref: 16

CIRCLIP

€ 3.00

17

2432014D00
ref: 17

GEAR,2ND DRIVEN(NT:26)

€ 87.50

18

0821125341
ref: 18

WASHER

€ 3.50

19

0938025010
ref: 19

CIRCLIP

€ 3.00

20

2433114D01
ref: 20

GEAR,3RD DRIVEN(NT:24)

€ 87.50

21

0821122281
ref: 21

SHIM

€ 4.00

22

2434114D00
ref: 22

GEAR,4TH DRIVEN(NT:20)

€ 80.50

23

2435114D00
ref: 23

GEAR,FIFTH DRIVEN (NT:20)

€ 95.00

24

2436114D01
ref: 24

GEAR,6TH DRIVEN(NT:19)

€ 95.50

25

0926717003
ref: 25

BEARING(17X40X17.5)

€ 57.00

26

0926222024
ref: 26

BEARING(22X56X16)

€ 40.00

27

0928322025
ref: 27

SEAL,OIL(22X34X7)

€ 12.50

28

2475114D00
ref: 28

RETAINER,DRIVE SHAFT OIL SEAL

€ 8.00

29-1

0110706126
ref: 29-1
MODEL L/M/N/P

BOLT

€ 2.00

29-2

0150006123
ref: 29-2
MODEL R/S/T

BOLT

€ 2.00

30

2626114D10
ref: 30

GEAR,KICK STARTER IDLE(NT:27)

€ 58.50

31

2626214D00
ref: 31

BUSH,KICK STARTER IDLE GEAR

€ 11.00

32

2626414D00
ref: 32

RETAINER,KICK IDLE GEAR

€ 10.00

33

0918006229
ref: 33

SPACER (6.5X12X21)

€ 2.50

34-1

0212206167
ref: 34-1
MODEL L/M/N/P/R

SCREW

€ 2.00

34-2

0212206163
ref: 34-2
MODEL S/T

SCREW ,6X16

€ 2.00

35-1

0212206356
ref: 35-1
MODEL L/M/N/P/R

SCREW

€ 2.00

35-2

0212206353
ref: 35-2
MODEL S/T

SCREW

€ 2.00

36-1

2751147D00
ref: 36-1
MODEL L/M/N/P <27511

SPROCKET(NT:14)

€ 23.00

36-2

2751114320
ref: 36-2
MODEL R/S/T

SPROCKET(NT:15)

€ 20.00

37

0938022012
ref: 37

CIRCLIP

€ 3.50

38-1

2760013A60110
ref: 38-1
MODEL L/M/N/P/R

CHAIN ASSEMBLY,DRIVE

€ 107.50

38-2

2760014A10110
ref: 38-2
MODEL S/T

CHAIN(DID520VC5,110LE)

€ 107.50

all assemblies
