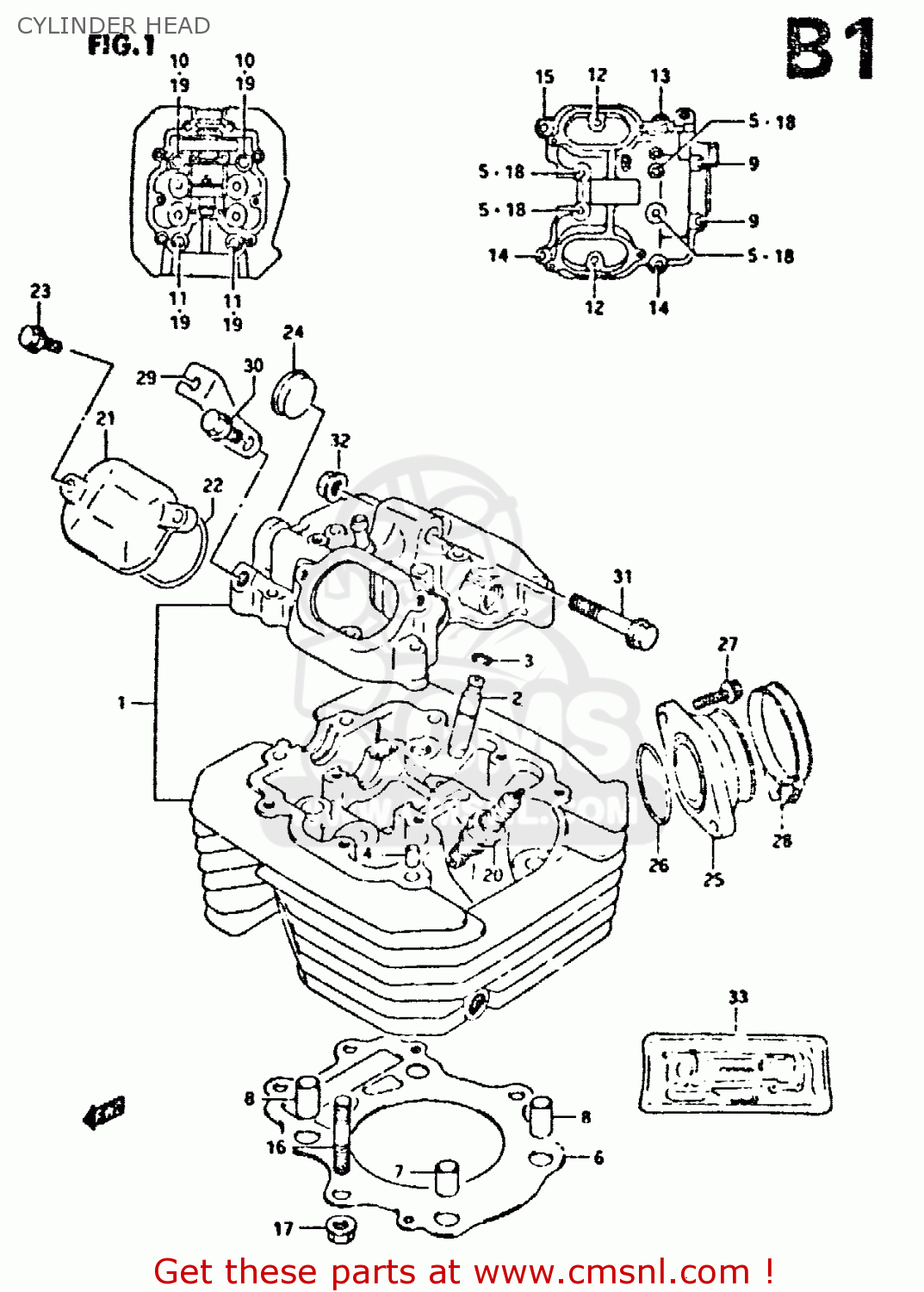

CYLINDER HEAD

ref

part #

description

quantity

1-1

1110014D02
ref: 1-1
MODEL L/M/N

HEAD ASSEMBLY,CYLINDER

€ 1,143.00

1-2

1110014D20
ref: 1-2
MODEL P

HEAD ASSEMBLY,CYLINDER

€ 1,143.00

1-3

1110014D50
ref: 1-3
MODEL R/S/T

HEAD ASSY,CYLINDER

€ 945.00

2

1111514D71
ref: 2
.GUIDE, VALVE

GUIDE,VALVE

€ 19.50

3

0938110004
ref: 3
.RING, VALVE GUIDE

RING,SNAP

€ 1.50

4

0920608001
ref: 4
.PIN

PIN(6.2X8X11)

€ 2.00

5

0910306102
ref: 5

BOLT(6X55)

€ 2.50

6

1114114D01
ref: 6

GASKET,CYLINDER HEAD (NAS)

€ 30.00

7

0421113189
ref: 7
09206-13001

PIN

€ 2.50

8

0920613004
ref: 8

PIN(10.4X13X22)

€ 3.00

9-1

0910306052
ref: 9-1
MODEL L/M/N/P

BOLT(6X115)

€ 5.00

9-2

0910306167
ref: 9-2
MODEL R/S/T

BOLT(6X115)

€ 4.50

10

0910310178
ref: 10

BOLT(10X180)

€ 12.50

11

0910310223
ref: 11

BOLT(10X155)

€ 14.50

12-1

0155006257
ref: 12-1
MODEL L/M/N/P

BOLT

€ 2.50

12-2

0155006253
ref: 12-2
MODEL R/S/T

BOLT

€ 2.50

13-1

0155006307
ref: 13-1
MODEL L/M/N/P

BOLT

€ 2.00

13-2

0155006303
ref: 13-2
MODEL R/S/T

BOLT

€ 2.50

14

0910306108
ref: 14

BOLT(6X35)

€ 2.00

15-1

0910306026
ref: 15-1
MODEL L/M/N/P

BOLT(6X39)

€ 2.00

15-2

0910306504
ref: 15-2
MODEL R/S/T

BOLT(6X39)

€ 3.50

16

0910808142
ref: 16

BOLT,STUD

€ 3.00

17-1

0831610087
ref: 17-1
MODEL L/M/N/P

NUT

€ 2.50

17-2

0831610083
ref: 17-2
MODEL R/S/T

NUT

€ 3.00

18

0916806023
ref: 18

GASKET(5.8X13X1.2) (NAS)

€ 2.00

19

0916010060
ref: 19

WASHER (10.5X22X2.3)

€ 2.50

20-1

0948200330
ref: 20-1
MODEL L/M/N/P

PLUG,SPARK(DPR9EA-9)

€ 4.00

20-2

0948200331111
ref: 20-2
MODEL L/M/N/P

SPARK PLUG X27EPR-U9

€ 4.00

20-3

0948200410
ref: 20-3
MODEL R/S/T

PLUG,SPARK(CR9EK)

€ 10.50

20-4

0948200411
ref: 20-4
MODEL R/S/T

PLUG,SPARK(U27ETR)

€ 8.50

20-5

0948200334
ref: 20-5
OPT, MODEL L/M/N/P/R

PLUG,SPARK(DPR8EA-9)

€ 4.00

20-6

0948200412
ref: 20-6
OPT, MODEL S/T

PLUG,SPARK(CR8EK)

€ 11.00

20-7

0948200462
ref: 20-7
OPT, MODEL S/T

PLUG,SPARK(CR10EK)

€ 10.50

20-8

0948200413
ref: 20-8
MODEL S/T

PLUG,SPARK(U24ETR)

€ 11.00

20-9

0948200463
ref: 20-9
OPT, MODEL S/T

PLUG,SPARK(U31ETR)

€ 10.50

20-10

0948200334
ref: 20-10
OPT, MODEL S/T E94,P

PLUG,SPARK(DPR8EA-9)

€ 4.00

21-1

1117514D00
ref: 21-1
MODEL L/M/N

CAP,INSPECTION

€ 12.00

21-2

1117547D00
ref: 21-2
MODEL P/R/S/T

CAP,INSPECTION

€ 12.00

22

1117714D01
ref: 22

O RING,INSPECTION CAP

€ 4.00

23-1

0155006207
ref: 23-1
MODEL L/M/N/P

BOLT

€ 2.50

23-2

0155006203
ref: 23-2
MODEL R/S/T

BOLT

€ 2.50

24

0924128007
ref: 24

PLUG, HEAD

€ 0.00

25

1310114D00
ref: 25
13110-14D00

PIPE ASSEMBLY,INTAKE

€ 47.50

26

0928040010
ref: 26

O RING(D:2.4,ID:39.7)

€ 3.50

27-1

0712006205
ref: 27-1
MODEL L/M/N/P

PLUG ,6X20

€ 3.50

27-2

0712006203
ref: 27-2
MODEL R/S/T

BOLT

€ 3.50

28

0940252208
ref: 28

CLAMP

€ 5.50

29

1294414A00
ref: 29

LEVER,DECOMP SHAFT RH

€ 6.50

30

0155008163
ref: 30

BOLT

€ 3.00

31

0910308280
ref: 31

BOLT(8X65)

€ 6.00

32

0831931087
ref: 32

NUT

€ 2.50

33-1

1140114839
ref: 33-1
OPT MODEL L/M/N

GASKET SET (NAS)

€ 89.00

33-2

1140114860
ref: 33-2
OPT MODEL P/R/S/T

GASKET SET (NAS)

€ 89.00
