FRONT CALIPER (M
DR350 1994 (R)

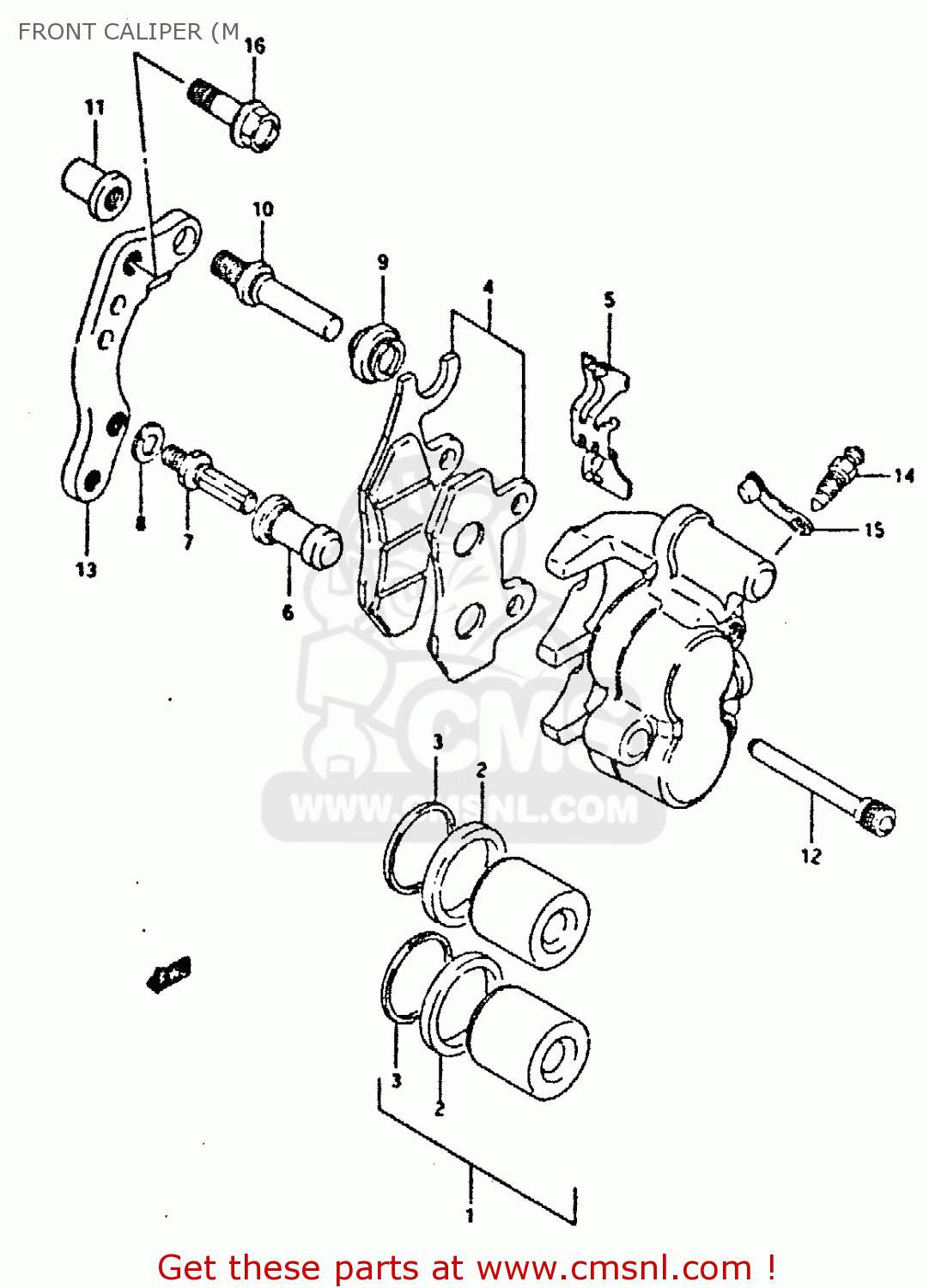

Front caliper (m diagram DR350 1994 (R)
FRONT CALIPER (M DR350 1994 (R)
×
prices are in EUR
ref
part #
description
quantity
0
5930027C10
ref: 0
MODEL N/P/R
CALIPER ASSEMBLY,FRONT,RIGHT
€ 334.00
0
5930027C11
ref: 0
MODEL S/T
CALIPER ASSEMBLY,FRONT,RIGHT
€ 334.00
1
5930027B40
ref: 1
PISTON SET
€ 0.00
2
5910700B20
ref: 2
SEAL,PISTON
€ 13.00
3
5910800B20
ref: 3
SEAL,DUST
€ 10.50
4
5930027850
ref: 4
PAD SET (NAS)
€ 49.50
5-1
5931527C20
ref: 5-1
MODEL N/P/R
SPRING,PAD
€ 8.50
5-2
5931527C30
ref: 5-2
MODEL S/T
SPRING,PAD
€ 8.50
6
5938613A00
ref: 6
BOOT
€ 6.50
7
5938213A00
ref: 7
BOLT,PIN
€ 6.50
8
5931413A00
ref: 8
WASHER,WAVE
€ 2.00
9
5930314500
ref: 9
BOOT
€ 5.50
10
5938700B20
ref: 10
PIN,SLIDE
€ 12.50
11
5938800B20
ref: 11
NUT
€ 10.00
12
5934500B20
ref: 12
PIN,HOLDER
€ 9.50
13
5935100B20
ref: 13
BRACKET
€ 60.50
14
5912101A00
ref: 14
BLEEDER
€ 8.50
15
5912201A00
ref: 15
CAP,BLEEDER
€ 4.50
16
0910308226
ref: 16
BOLT(8X24)
€ 2.00
