AIR CLEANER (MODEL R/S/T)
DR350SE 1992 (N) USA (E03)

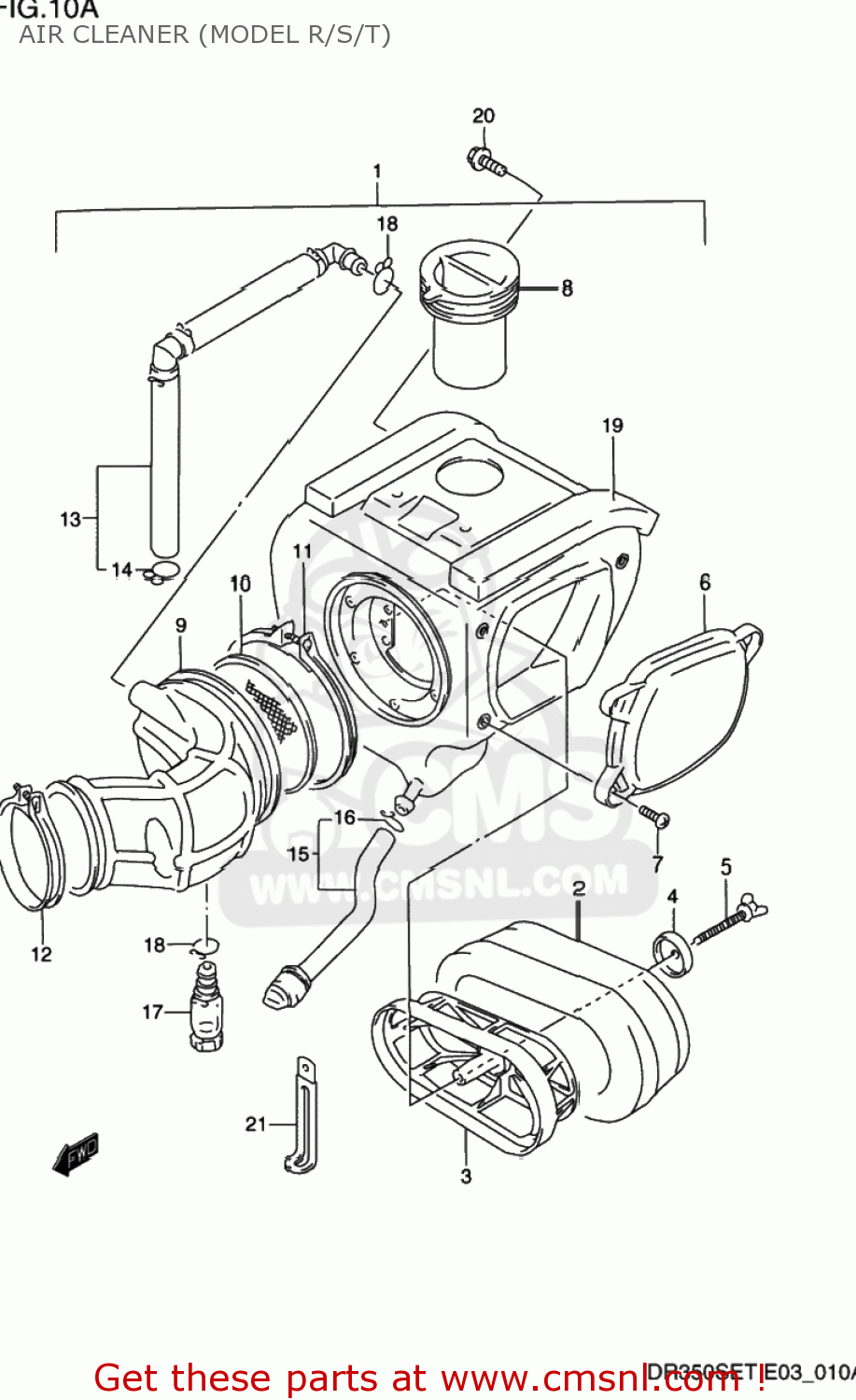

Air cleaner (model r/s/t) diagram DR350SE 1992 (N) USA (E03)
AIR CLEANER (MODEL R/S/T) DR350SE 1992 (N) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1370014D40
ref: 1
CLEANER ASSY,AIR
€ 179.50
2
1378014D02
ref: 2
FILTER
€ 35.50
3
1379114D00
ref: 3
HOLDER,FILTER
€ 25.00
4
1379213A01
ref: 4
WASHER,AIR CLEANER
€ 3.00
5
1383102B00
ref: 5
BOLT,WING
€ 4.00
6
1374014D00
ref: 6
CAP,AIR CLEANER
€ 20.50
7
0214205207
ref: 7
SCREW
€ 2.00
8
1389114D10
ref: 8
TUBE,INLET
€ 20.50
9
1388114D30
ref: 9
TUBE,OUTLET
€ 83.00
10
1381014D02
ref: 10
TRAP,FRAME
€ 6.50
11
1382614D01
ref: 11
CLAMP,OUTLET TUBE
€ 7.50
12
0940266208
ref: 12
CLAMP
€ 6.50
13
1385014D41
ref: 13
TUBE,BREATHER
€ 0.00
14
0940114301
ref: 14
CLIP
€ 2.00
15
1387014D20
ref: 15
TUBE,DRAIN A
€ 15.50
16
0940114301
ref: 16
CLIP
€ 2.00
17-1
1387214D00
ref: 17-1
TUBE,DRAIN B
€ 12.00
17-2
1387011458
ref: 17-2
TUBE,DRAIN
€ 13.50
18
0940114301
ref: 18
CLIP
€ 2.00
19
1373614D20
ref: 19
CUSHION
€ 0.00
20
0155006123
ref: 20
01550-0612A
BOLT
€ 2.50
21-1
0940408405
ref: 21-1
09404-08420
CLAMP
€ 3.50
21-2
0940408404
ref: 21-2
09404-08420
CLAMP
€ 3.00
21-3
0940408419
ref: 21-3
CLAMP(L:80)
€ 2.00
