RIGHT HANDLE LEVER (MODEL L/M)
DR350SE 1992 (N) USA (E03)

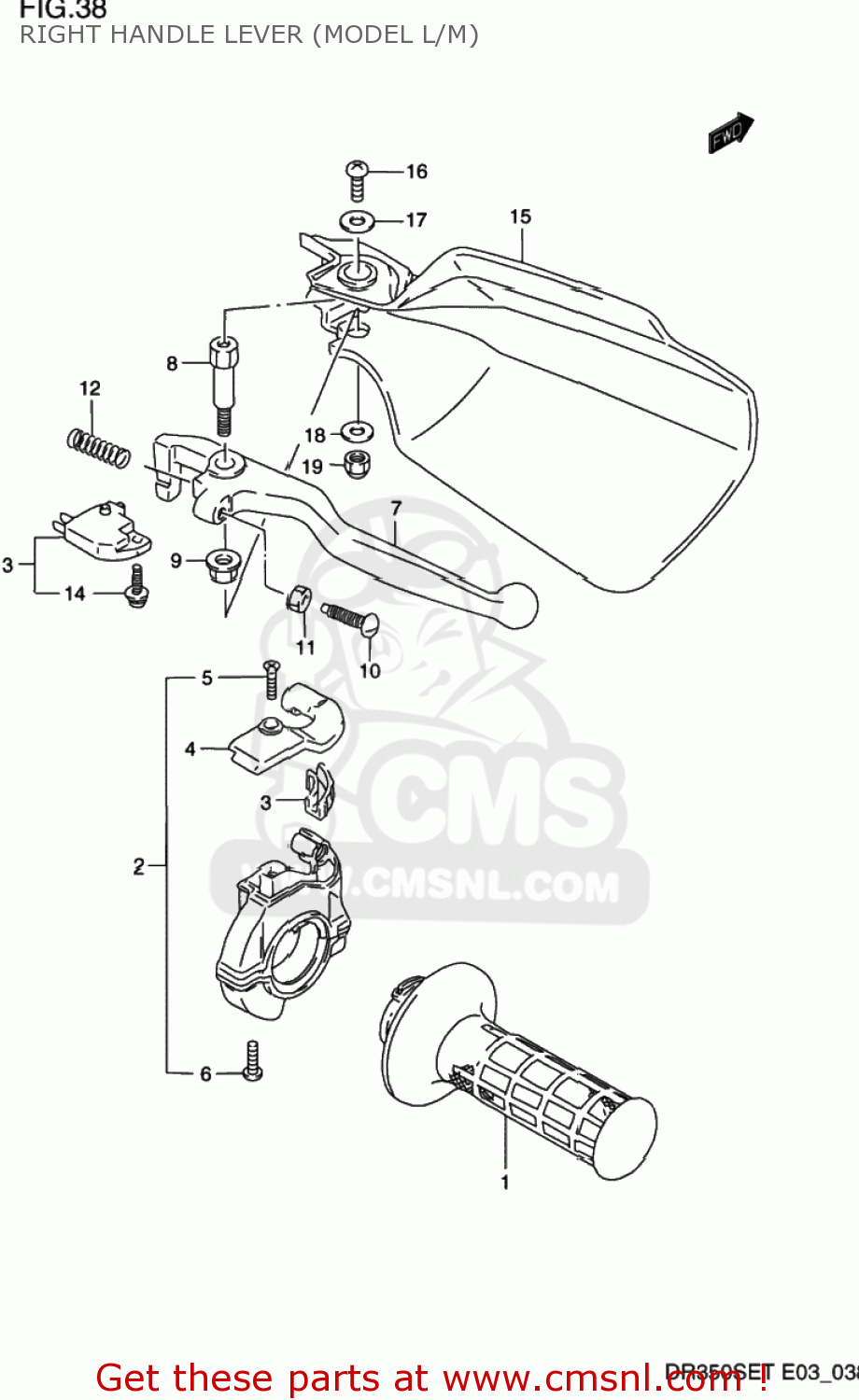

Right handle lever (model l/m) diagram DR350SE 1992 (N) USA (E03)
RIGHT HANDLE LEVER (MODEL L/M) DR350SE 1992 (N) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5711014D00
ref: 1
GRIP,THROTTLE
€ 25.50
2
5710028B00
ref: 2
57100-13601
CASE ASSEMBLY,THROTTLE
€ 34.00
3
5712213600
ref: 3
GUIDE PIECE,THROTTLE
€ 7.50
4
5712913601
ref: 4
COVER,THROTTLE CASE
€ 7.00
5
0213204105
ref: 5
02122-0410A
SCREW 4X10
€ 2.50
6
0211205164
ref: 6
SCREW
€ 2.00
7
5742103D00
ref: 7
LEVER,BRAKE
€ 14.50
8
5743105D00
ref: 8
BOLT,BRAKE LEVER PIVOT
€ 9.00
9
0831921068
ref: 9
08319-2106A
NUT 6MM
€ 2.00
10
5743114511
ref: 10
BOLT,ADJUST
€ 3.50
11
0831012055
ref: 11
08310-0005A
NUT ,5MM
€ 2.50
12
5731814502
ref: 12
SPRING,RETURN
€ 3.00
13
5746017C00
ref: 13
57460-17C01
SWITCH ASSEMBLY,STOP
€ 32.50
14
5746517C00
ref: 14
SCREW
€ 1.50
15
5734105D000NF
ref: 15
COVER,KNUCKLE,R
€ 28.00
16
0912505042
ref: 16
SCREW(5X10)
€ 2.50
17
0916005017
ref: 17
09160-05043
WASHER (5.5X16X1.2)
€ 2.50
18
0916006042
ref: 18
09160-06130
WASHER (6.5X17X1.6)
€ 2.00
19
0831921068
ref: 19
08319-2106A
NUT 6MM
€ 2.00
