CAM CHAIN

DR600S 1986 (G) (E01 E02 E04 E15 E16 E17 E18 E21 E22 E24 E25 E34

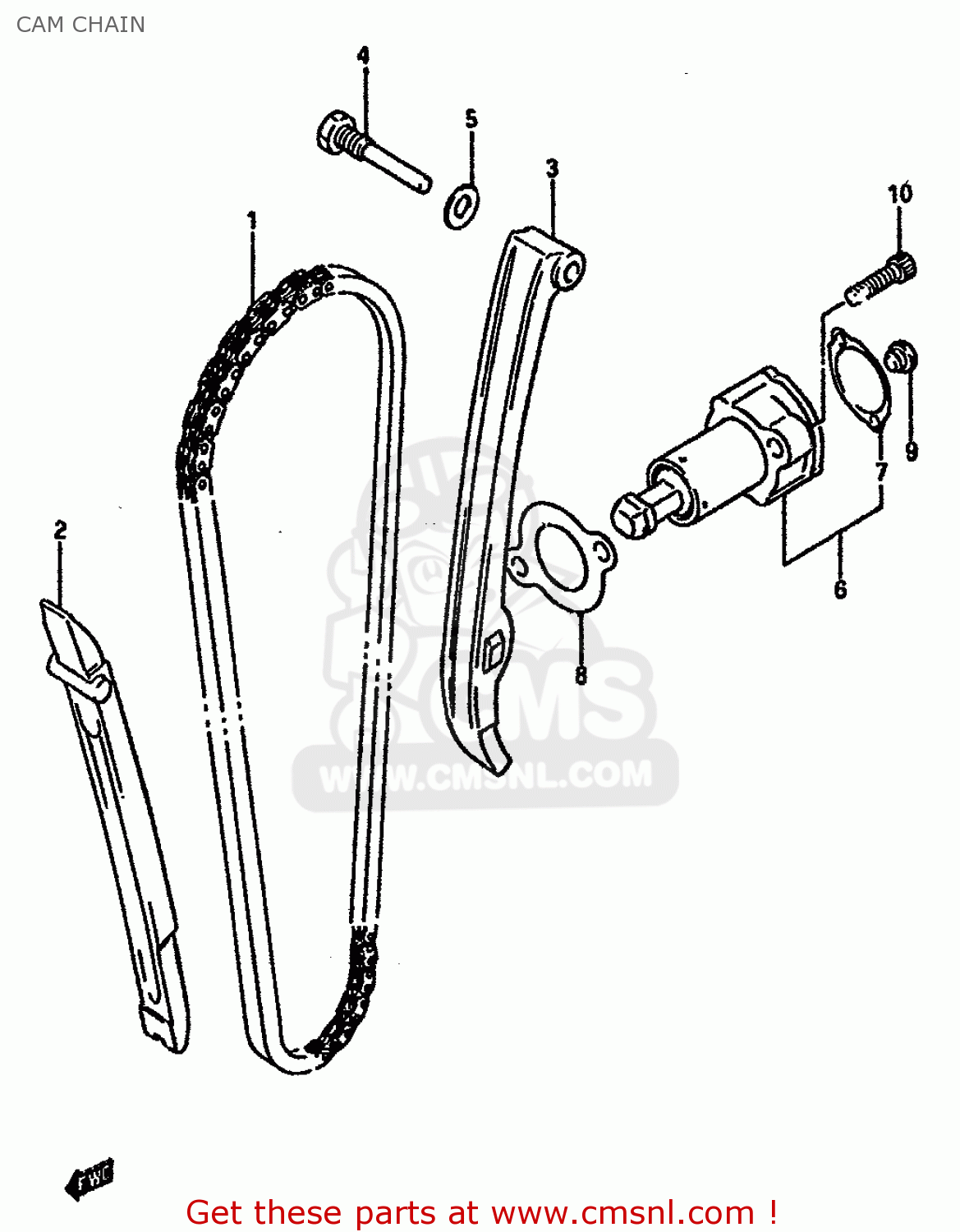

Cam chain diagram DR600S 1986 (G) (E01 E02 E04 E15 E16 E17 E18 E21 E22 E24 E25 E34

prices are in EUR

ref

part #

description

quantity

1276037400
ref: 1
124LE

CHAIN,CAMSHAFT DRIVE

€ 132.50

1277137400
ref: 2

GUIDE,CAM CHAIN

€ 39.50

1281137401
ref: 3

TENSIONER,CAM CHAIN

€ 41.50

1281232410
ref: 4

BOLT,CAM CHAIN TENSIONER

€ 3.50

0916808008
ref: 5

GASKET 8.2X14X1 (NAS)

€ 1.00

1283015500
ref: 6

ADJUSTER ASSEMBLY,TENSIONER

€ 91.00

7-1

1283838200
ref: 7-1

GASKET,ADJUSTER CAP (MCA)

€ 3.00

7-2

1283838200H17
ref: 7-2
E17

GASKET,ADJUSTER CAP (NAS)

€ 3.00

8-1

1283724A00
ref: 8-1

GASKET,TENSIONER ADJUSTER (NAS)

€ 3.50

8-2

1283724A00H17
ref: 8-2
E17

GASKET,TENSIONER ADJUSTER

€ 3.50

1283938200
ref: 9

PLUG,ADJUSTER

€ 2.00

0711006255
ref: 10

BOLT

€ 3.00
