Buy Suzuki DR Parts Online


KICK STARTER

DR600S 1986 (G) (E01 E02 E04 E15 E16 E17 E18 E21 E22 E24 E25 E34

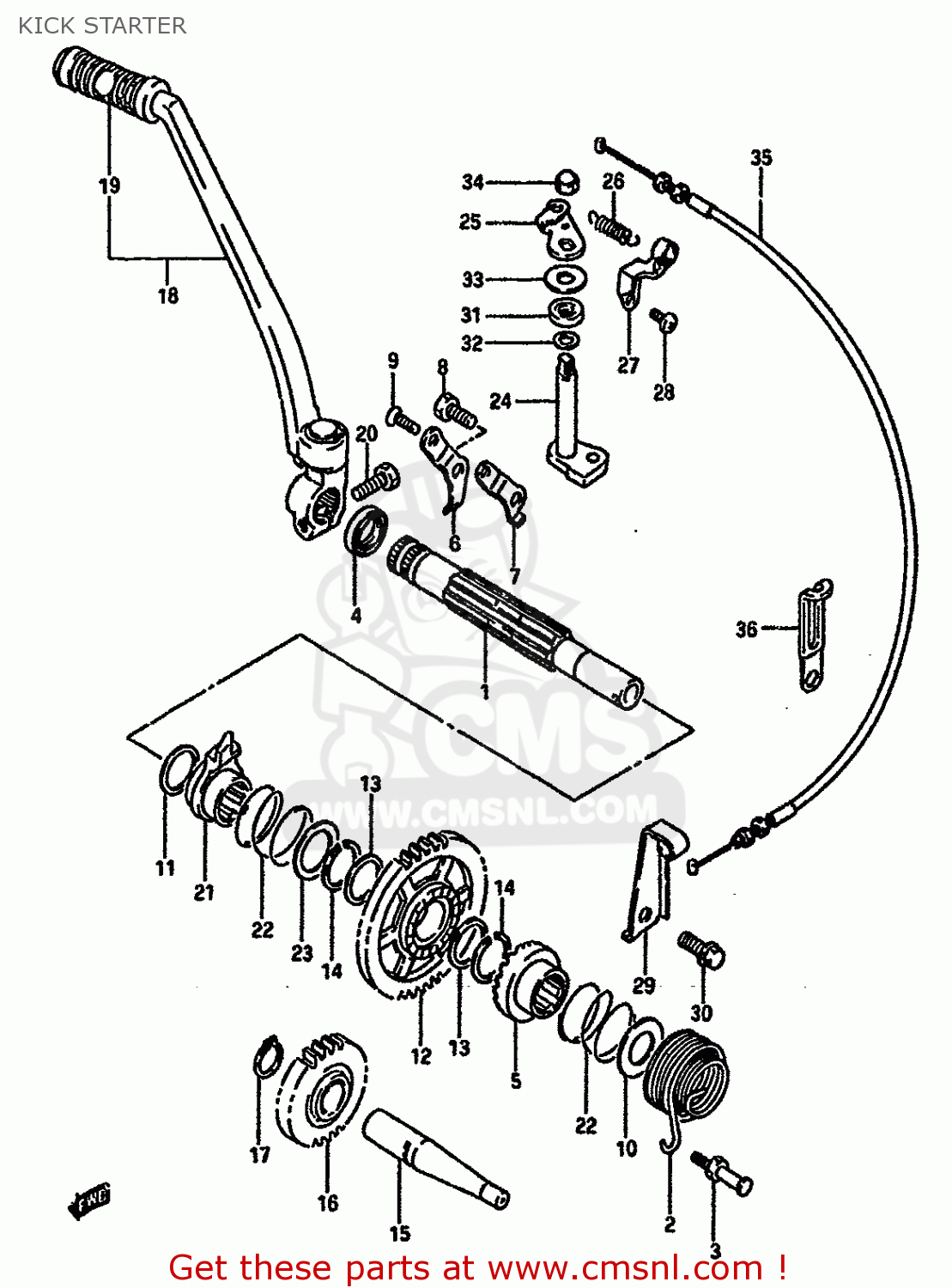

Kick starter diagram DR600S 1986 (G) (E01 E02 E04 E15 E16 E17 E18 E21 E22 E24 E25 E34

KICK STARTER DR600S 1986 (G) (E01 E02 E04 E15 E16 E17 E18 E21 E22 E24 E25 E34
KICK STARTER DR600S 1986 (G) (E01 E02 E04 E15 E16 E17 E18 E21 E22 E24 E25 E34
KICK STARTER DR600S 1986 (G) (E01 E02 E04 E15 E16 E17 E18 E21 E22 E24 E25 E34
prices are in EUR
ref
part #
description
quantity
1
2621114A01
ref: 1
SHAFT,KICK STARTER
€ 63.00
2
0944841003
ref: 2
SPRING
0944841003
€ 17.00
3
2623714500
ref: 3
BOLT,KICK SHAFT SPRING
€ 3.50
4
0928320044
ref: 4
SEAL,OIL(20X27X6)
0928320044
€ 8.00
5
2623138201
ref: 5
STARTER,KICK
€ 25.50
6
2623214A00
ref: 6
GUIDE,KICK STARTER
2623214A00
€ 8.00
7
2623314A01
ref: 7
STOPPER,KICK STARTER
2623314A01
€ 6.00
8
0110708206
ref: 8
BOLT,8X1.25X2
€ 2.00
9
0212206167
ref: 9
SCREW
0212206167
€ 2.00
10
0821117341
ref: 10
WASHER
0821117341
€ 2.00
11
0821120281
ref: 11
WASHER,THRUST
0821120281
€ 2.50
12
2624014A00
ref: 12
GEAR,KICK STARTER DRIVE
2624014A00
€ 52.50
13
0821122281
ref: 13
SHIM
0821122281
€ 4.00
14
0938022006
ref: 14
CIRCLIP
0938022006
€ 3.00
15
2622314A00
ref: 15
SHAFT,KICK STARTER IDLE
2622314A00
€ 16.50
16
2626037400
ref: 16
GEAR,KICK STARTER IDLE
2626037400
€ 36.00
17
0938017001
ref: 17
CIRCLIP
0938017001
€ 2.00
18
2630014A00
ref: 18
LEVER ASSEMBLY,KICK STARTER
€ 282.00
19
2635216401
ref: 19
RUBBER,KICK STARTER PEDAL
2635216401
€ 4.00
20
0910008194
ref: 20
BOLT 8X25
0910008194
€ 2.00
21
2681114A04
ref: 21
CAM,DECOMPRESSION
€ 35.50
22
0944032006
ref: 22
SPRING
0944032006
€ 1.50
23
0821122341
ref: 23
WASHER
0821122341
€ 3.00
24
2682014A05
ref: 24
SHAFT,DECOMP CAM FOLLOWER
2682014A05
€ 167.50
25
2682414A03
ref: 25
ARM,DECOMPRESSION SHAFT
2682414A03
€ 6.50
26
0944306061
ref: 26
SPRING
0944306061
€ 2.50
27
2684114A01
ref: 27
HOLDER,DECOMPRESSION CABLE NO
2684114A01
€ 6.50
28
0211206106
ref: 28
SCREW
€ 1.50
29-1
2684214A01
ref: 29-1
~E.NO.106412,TO 2684
HOLDER,DECOMPRESSION CABLE NO
2684214A01
€ 6.00
29-2
2684214A02
ref: 29-2
E.NO.106413~
HOLDER,DECOMP CABLE NO.2
2684214A02
€ 6.00
30
0151708165
ref: 30
BOLT, LOWER
0151708165
€ 3.00
31
0928210007
ref: 31
OIL SEAL
0928210007
€ 7.50
32
0821110151
ref: 32
WASHER
0821110151
€ 2.00
33
0916010020
ref: 33
WASHER(10.5X24X1)
0916010020
€ 2.00
34
0831311085
ref: 34
NUT,M8X1.25X12
€ 2.00
35
2683014A05
ref: 35
E.NO.108278~,SEE NOT
CABLE,KICK STARTER DECOMP
2683014A05
€ 19.00
36
0940406401
ref: 36
E.NO.108278~
CLAMP L:35
0940406401
€ 2.50
