REAR SHOCK ABSORBER

DR600SU 1988 (J) GERMANY (E22)

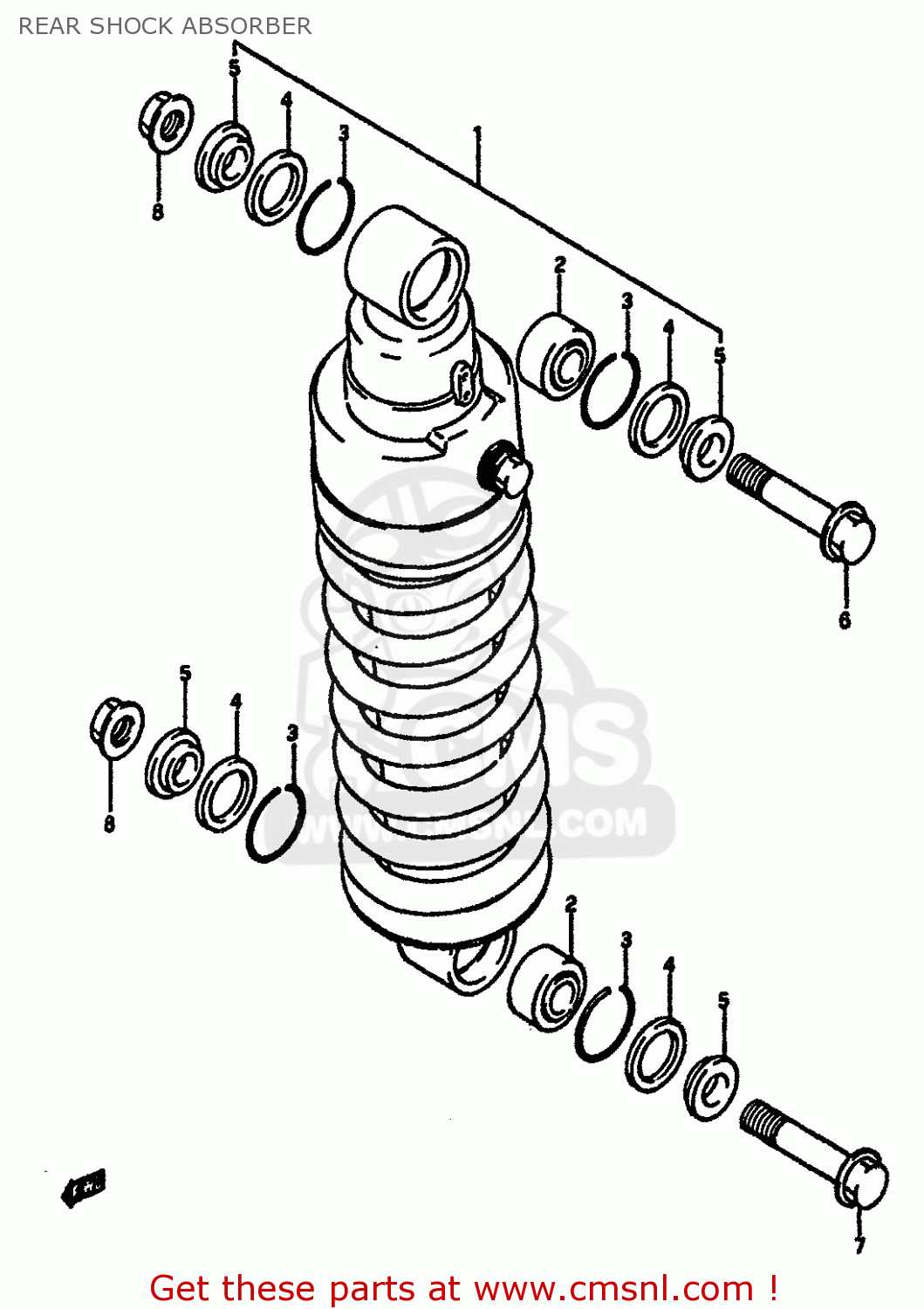

Rear shock absorber diagram DR600SU 1988 (J) GERMANY (E22)

prices are in EUR

ref

part #

description

quantity

1-1

6210014A00019
ref: 1-1
MODEL F

ABSORBER ASSEMBLY,REAR SHOCK

€ 724.00

1-2

6210014A0019F
ref: 1-2
MODEL F

ABSORBER ASSY,REAR SHOCK (BLUE)

€ 724.00

1-3

6210014A02019
ref: 1-3
MODEL G/H/J/K

ABSORBER ASSEMBLY,REAR SHOCK

€ 724.00

1-4

6210014A0219F
ref: 1-4
MODEL G

ABSORBER ASSY, REAR SHOCK (BLUE)

€ 724.00

1-5

6210014A0234S
ref: 1-5
MODEL H/J/K

ABSORBER ASSY, REAR SHOCK (BLUE)

€ 724.00

6217543400
ref: 2

BEARING,REAR SHOCK ABSORBER

€ 66.00

6227714200
ref: 3

RING

€ 1.50

4-1

6222643410
ref: 4-1
MODEL F

SEAL,DUST

€ 7.50

4-2

6222614520
ref: 4-2
MODEL G/H/J/K

SEAL,DUST RR SHOCK ABSORBER

€ 12.50

5-1

6268443401
ref: 5-1
MODEL F

SPACER

€ 7.00

5-2

6268414520
ref: 5-2
MODEL G/H/J/K

COLLAR

€ 7.00

0910310040
ref: 6

BOLT(10X54)

€ 5.50

0910310030
ref: 7

BOLT(10X52)

€ 8.50

0831931107
ref: 8

NUT

€ 3.00

REAR SHOCK ABSORBER

all assemblies
