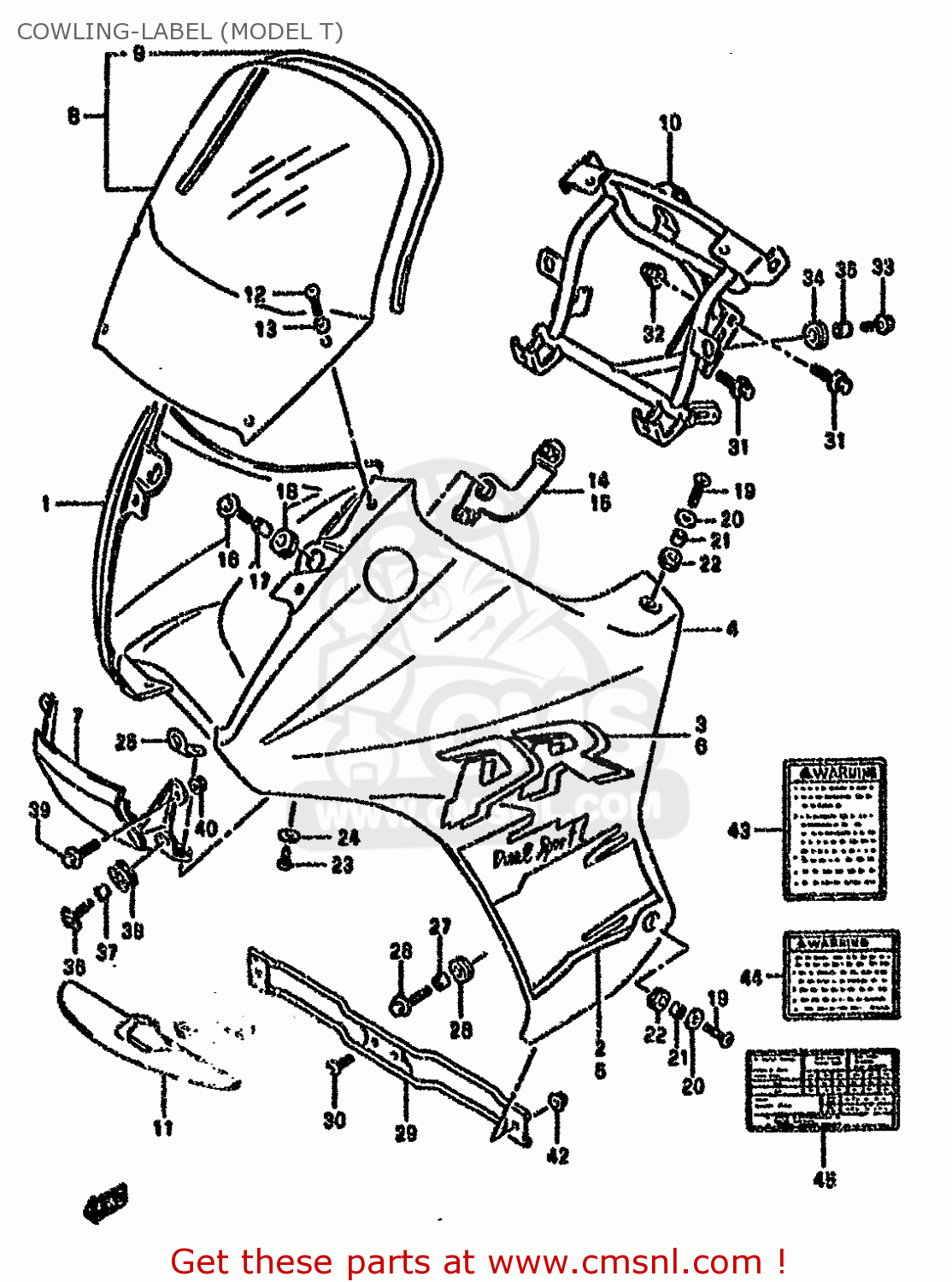

COWLING-LABEL (MODEL T)

ref

part #

description

quantity

1-1

9440113D00Y98
ref: 1-1

COVER,COWL SIDE RH (GREEN)

€ 268.00

1-2

9440113D001HU
ref: 1-2

COVER ASSY,COW

€ 283.50

1-3

9440113D10Y98
ref: 1-3
E18

COVER,COWL SIDE RH (GREEN)

€ 157.00

1-4

9440113D101HU
ref: 1-4
E18

COVER,COWL SIDE RH (PURPLE)

€ 157.00

2

6868513D00F0D
ref: 2

TAPE,COWL SIDE,R

€ 38.50

3

6868113D00F0E
ref: 3

EMBLEM,COWLING SIDE

€ 26.50

4-1

9440213D00Y98
ref: 4-1

COVER ASSY,COWL SIDE,L

€ 282.00

4-2

9440213D001HU
ref: 4-2

COVER ASSY,COWL SIDE,L

€ 275.00

4-3

9440213D10Y98
ref: 4-3
E18

COVER,COWL SIDE LH (GREEN)

€ 283.50

4-4

9440213D101HU
ref: 4-4
E18

COVER,COWL SIDE LH (PURPLE)

€ 283.50

5

6869513D00F0D
ref: 5

TAPE,COWL SIDE,L

€ 38.50

6

6868113D00F0E
ref: 6

EMBLEM,COWLING SIDE

€ 26.50

7-1

9442112D00Y98
ref: 7-1

COVER,COWL CENTER (GREEN)

€ 31.50

7-2

9442112D001HU
ref: 7-2

COVER,COWLING CTR

€ 0.00

8

9461012D01
ref: 8

WINDSCREEN

€ 135.50

9

9463133C01
ref: 9
L:700-600

MOLDING WINDSCREEN

€ 10.00

10

9451012D21
ref: 10

BRACE,COWLING

€ 170.50

11

9445112D00
ref: 11

COVER,COWLING FR LWR

€ 17.00

12

0913905022
ref: 12

SCREW

€ 2.50

13

0916105010
ref: 13

WASHER(5.2X11X1)

€ 2.00

14

9462012D00
ref: 14

BRACE,SCREEN,R

€ 7.50

15

9463012D00
ref: 15

BRACE,SCREEN,L

€ 10.00

16

0913606102
ref: 16

SCREW

€ 2.50

17

0918006167
ref: 17

SPACER (6,8X10X9.4)

€ 2.50

18

0932010029
ref: 18

CUSHION

€ 13.50

19

0913906028
ref: 19

SCREW(6X20)

€ 3.50

20

0916006056
ref: 20

WASHER(6.5X18X1)

€ 2.00

21

0918006114
ref: 21

SPACER (6.1X9X10)

€ 3.00

22

0932009016
ref: 22

CUSHION

€ 2.50

23

0912506075
ref: 23

SCREW (6X18)

€ 2.50

24

0916006036
ref: 24

WASHER(6.5X18X1.5)

€ 1.50

25

9454012D00
ref: 25

BRACKET,COWLING FR LWR

€ 6.00

26

0913606113
ref: 26

SCREW(6X25)

€ 2.00

27

0918006114
ref: 27

SPACER (6.1X9X10)

€ 3.00

28

0932008047
ref: 28

CUSHION

€ 4.00

29

9455012D01
ref: 29

BRACKET,COWLING LWR

€ 25.50

30

0214206123
ref: 30

SCREW 6X12

€ 2.00

31

0911808113
ref: 31

BOLT

€ 3.50

32

0831620083
ref: 32

NUT

€ 1.50

33

0911606167
ref: 33

BOLT(6X20)

€ 2.00

34

0932008047
ref: 34

CUSHION

€ 4.00

35

0918006114
ref: 35

SPACER (6.1X9X10)

€ 3.00

36

0913606102
ref: 36

SCREW

€ 2.50

37

0918006167
ref: 37

SPACER (6,8X10X9.4)

€ 2.50

38

0932010029
ref: 38

CUSHION

€ 13.50

39

0911605011
ref: 39

SCREW,HEADLAMP (5X20)

€ 1.50

40

0831620053
ref: 40

NUT

€ 2.00

41

0916006057
ref: 41

WASHER

€ 2.00

42

0831931065
ref: 42

NUT

€ 2.50

43-1

6861248B00
ref: 43-1
E34

LABEL (WARNING SCREEN)

€ 6.50

43-2

6861248B10
ref: 43-2
E4,E34,E37

LABEL (WARNING SCREEN)

€ 6.50

43-3

6861248B20
ref: 43-3
E18,E22

LABEL (WARNING,SCREEN)

€ 6.50

44-1

6831933E20
ref: 44-1
E18,E22,E34

LABEL,WARNING

€ 8.00

44-2

6831933E30
ref: 44-2
E4,E34,E37

LABEL,WARNING

€ 8.50

44-3

6831933E00
ref: 44-3
E34

LABEL (WARNING SAFETY),E

€ 8.00

44-4

6831933E50
ref: 44-4
E34

LABEL,WARNING

€ 8.00

44-5

6831933E40
ref: 44-5
E34

LABEL,WARNING

€ 8.00

44-6

6831933E70
ref: 44-6
E34

LABEL,WARNING

€ 5.50

44-7

6831933E80
ref: 44-7
E37

LABEL, WARNING SAFETY (DOTUGUESE)

€ 4.00

45-1

6833212D00
ref: 45-1
E4,E18,E34,E37

LABEL,TIRE AIR PRESSURE

€ 0.00

45-2

6833212D10
ref: 45-2
E22

LABEL, TIRE AIR PRESSURE

€ 0.00

46

9901112D66DGS
ref: 46
DRAWING NOT SHOWN

MANUAL,OWNER'S

€ 0.00

46-1

9901112D65022
ref: 46-1
E4,E18,E22,E34

MANUAL,OWNER'S

€ 16.00

46-2

9901112D65028
ref: 46-2
E34,E37 DRAWING NOT

MANUAL,OWNER'S

€ 20.50

46-2

9901112D64028
ref: 46-2
E21,E53 DRAWING NOT

MANUAL,OWNER'S

€ 0.00

44-5

6831915D51
ref: 44-5
E53

LABEL, WARNING SAFETY (SPANISH)

€ 8.00

45-1

8693273060
ref: 45-1
E24

LABEL,FUEL CAUTION

€ 4.00

45-2

6862317D00
ref: 45-2
E2

LABEL,CAUTION

€ 4.00

46

1196782000
ref: 46
E2

LABEL,ASBESTOS WARNING

€ 2.00

47-1

6833212D00
ref: 47-1

LABEL,TIRE AIR PRESSURE

€ 0.00

47-2

6833212D10
ref: 47-2
E22 DRAWING NOT SHOW

LABEL, TIRE AIR PRESSURE

€ 0.00

48-1

9901112D62022
ref: 48-1
E4,E21,E22,E25,E34

O.M. DR650RSE

€ 21.00

48-2

9901112D62028
ref: 48-2
E2,E15,E16,E17,E18 E

MANUEL,OWNER'S

€ 0.00

47-1

9901112D61022
ref: 47-1
E4,E18,E21,E22,E25,E

O.M. DR650RSE

€ 21.00

47-2

9901112D61028
ref: 47-2
E2,E15,E16,E17,E24,E

MANUAL,OWNER'S

€ 20.00

all assemblies
