SPEED/TACHOMETER (MODEL S/T)

DR650RSE 1994 (R) (E04 E18 E21 E22 E34 E53)

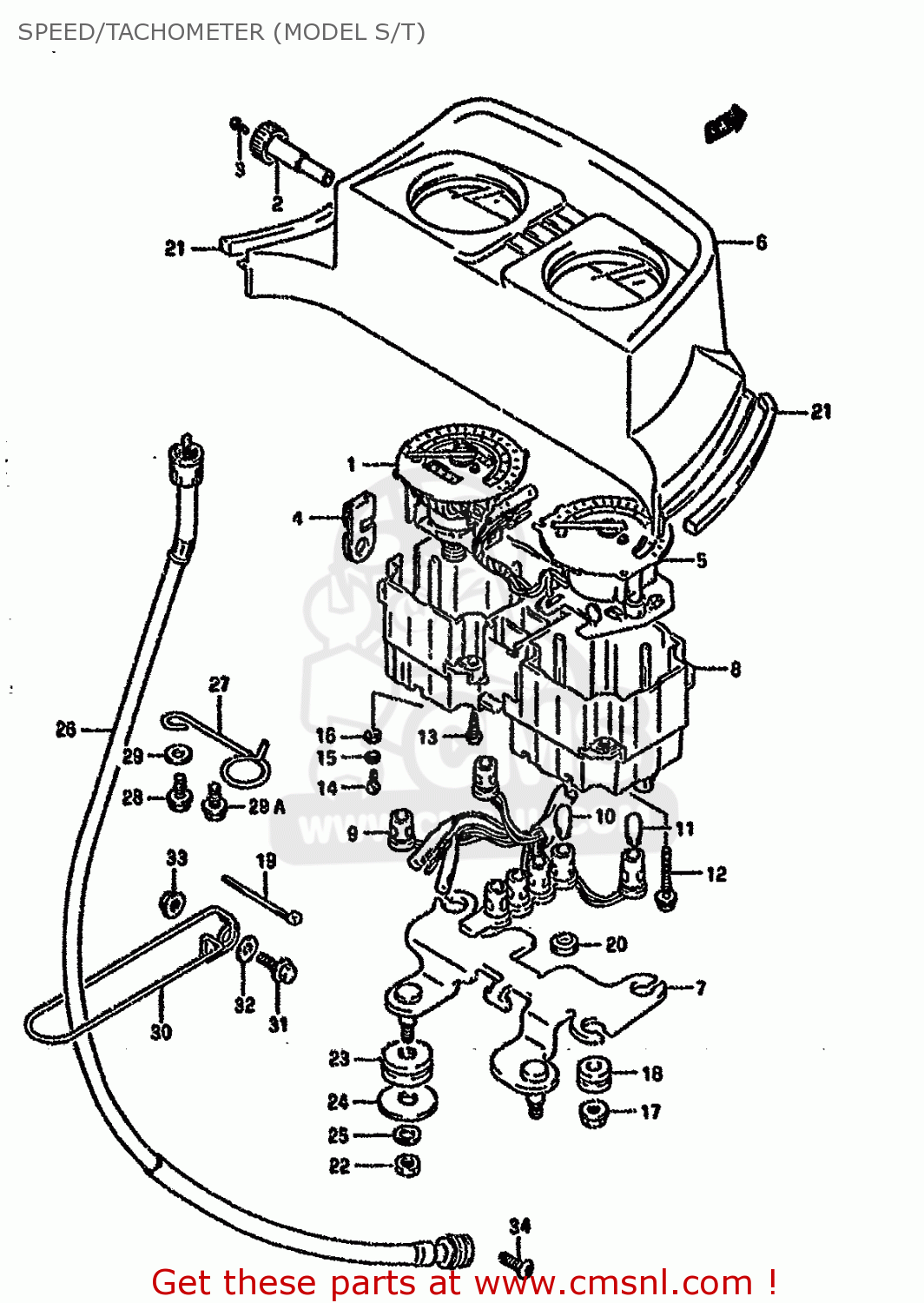

Speed/tachometer (model s/t) diagram DR650RSE 1994 (R) (E04 E18 E21 E22 E34 E53)

SPEED/TACHOMETER (MODEL S/T) DR650RSE 1994 (R) (E04 E18 E21 E22 E34 E53)
SPEED/TACHOMETER (MODEL S/T) DR650RSE 1994 (R) (E04 E18 E21 E22 E34 E53)
SPEED/TACHOMETER (MODEL S/T) DR650RSE 1994 (R) (E04 E18 E21 E22 E34 E53)
prices are in EUR
ref
part #
description
quantity
1
3412012D10
ref: 1
SPEEDOMETER (KILO)
3412012D10
€ 349.00
2
3412412D00
ref: 2
KNOB
3412412D00
€ 11.50
3
3418412D00
ref: 3
SCREW,TRIP KNOB
3418412D00
€ 2.00
4
3419614A00
ref: 4
CUSHION,METER
3419614A00
€ 11.50
5
3422012D30
ref: 5
TACHOMETER
3422012D30
€ 257.00
6
3415012D10
ref: 6
HOOD,METER
3415012D10
€ 60.50
7
3495012D00
ref: 7
BRACKET
€ 36.00
8
3411144B10
ref: 8
CASE,METER
3411144B10
€ 54.00
9
3417012D30
ref: 9
SOCKET,METER
€ 74.50
10
0947112100
ref: 10
BULB(12V1.7W,WB372,T7)
0947112100
€ 2.00
11
0947112085
ref: 11
BULB(12V3W,WB371,T7)
0947112085
€ 3.00
12
0211274253
ref: 12
SCREW
0211274253
€ 2.00
13
0311205123
ref: 13
SCREW
0311205123
€ 1.50
14
0211203103
ref: 14
SCREW
0211203103
€ 1.50
15
0832121033
ref: 15
WASHER,LOCK
0832121033
€ 1.50
16
0832201033
ref: 16
WASHER
0832201033
€ 1.50
17
3418514A00
ref: 17
NUT
€ 5.50
18
3499643410
ref: 18
CUSHION,METER
3499643410
€ 3.00
19
0940410417
ref: 19
CLAMP(L:97)
0940410417
€ 2.50
20
3419414A00
ref: 20
CAP
3419414A00
€ 8.00
21
3499712D01
ref: 21
CUSHION,SPEEDOMETER
€ 3.50
22
0831000063
ref: 22
NUT 6MM
0831000063
€ 2.00
23
0932008053
ref: 23
CUSHION
0932008053
€ 5.00
24
0916006074
ref: 24
WASHER (6.5X24X1.6)
€ 2.00
25
0832101063
ref: 25
LOCK WASHER
0832101063
€ 2.00
26
3491012D10
ref: 26
CABLE ASSY,SPEEDOMETER
3491012D10
€ 60.50
27
3493812D00
ref: 27
GUIDE,CABLE
€ 3.00
28
0155006103
ref: 28
MODEL S
BOLT
0155006103
€ 2.50
29
0832201063
ref: 29
MODEL S
WASHER
0832201063
€ 2.00
29A
0156006103
ref: 29A
MODEL T
BOLT
0156006103
€ 2.50
30
3493812D10
ref: 30
GUIDE,METER CABLE
3493812D10
€ 10.00
31
0155006203
ref: 31
BOLT
0155006203
€ 2.50
32
0916006066
ref: 32
WASHER(6.5X20X1.6)
0916006066
€ 2.00
33
0831610063
ref: 33
NUT
0831610063
€ 2.50
34
0211205163
ref: 34
SCREW
0211205163
€ 2.00
32-1
0916006020
ref: 32-1
MODEL M/N/P
WASHER
0916006020
€ 2.00
32-2
0916006066
ref: 32-2
MODEL R
WASHER(6.5X20X1.6)
0916006066
€ 2.00
33-1
0915906017
ref: 33-1
MODEL M/N/P
NUT
0915906017
€ 2.50
33-2
0831610063
ref: 33-2
MODEL R
NUT
0831610063
€ 2.50
34
0211205167
ref: 34
SCREW
0211205167
€ 2.50
