CYLINDER

DR650RSEU 1993 (P) GERMANY (E22)

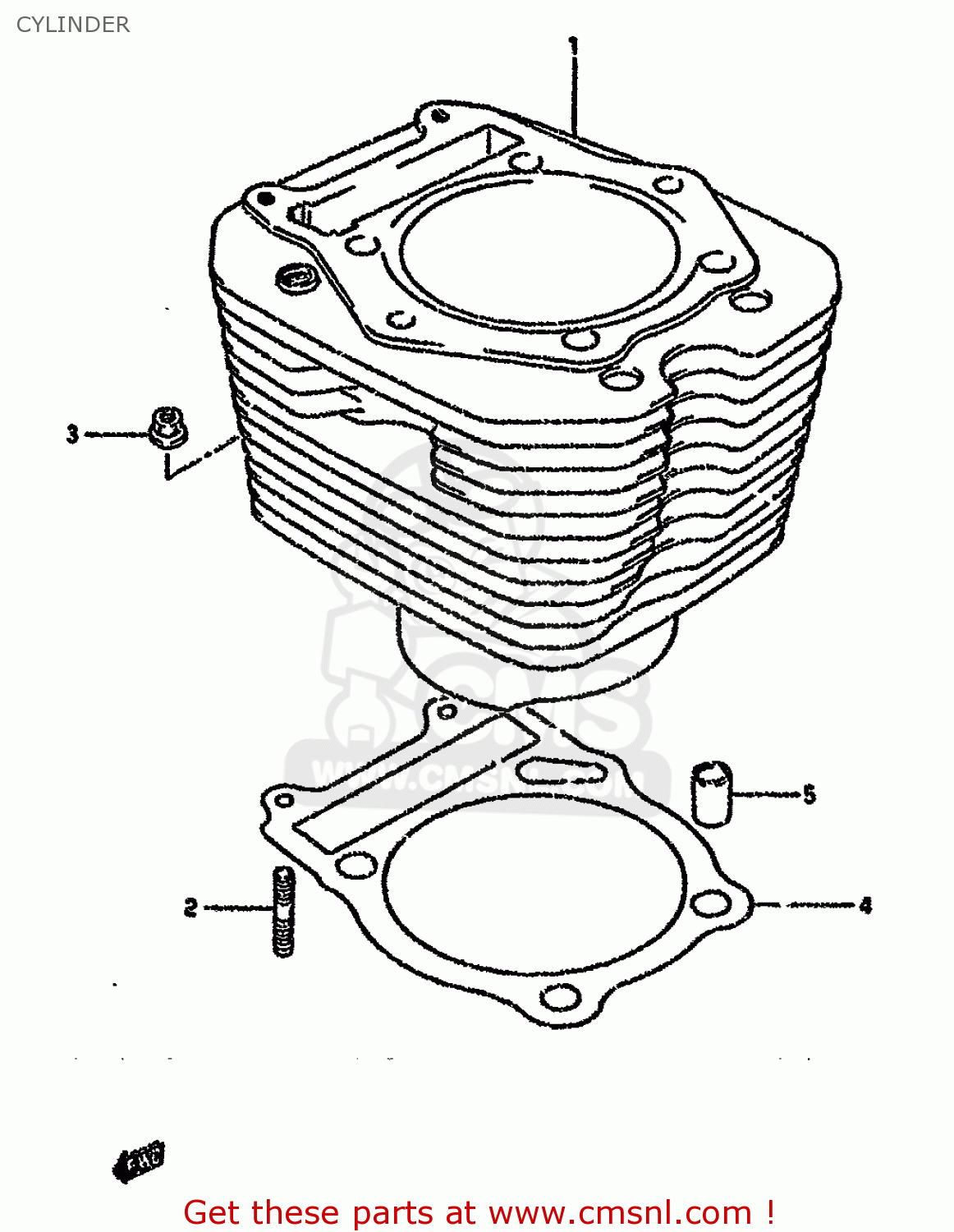

Cylinder diagram DR650RSEU 1993 (P) GERMANY (E22)

prices are in EUR

ref

part #

description

quantity

1-1

1121012D140F0
ref: 1-1
MODEL M/N/P

CYLINDER

€ 606.50

1-2

1121012D230F0
ref: 1-2
MODEL R/S/T

CYLINDER

€ 697.00

2-1

0142106205
ref: 2-1
MODEL M/N/P

STUD BOLT L:20

€ 2.50

2-2

0142106208
ref: 2-2
MODEL R/S/T

STUD 6X20

€ 2.50

3-1

0831616064
ref: 3-1
MODEL M/N/P

NUT 6MM

€ 2.50

3-2

0831610067
ref: 3-2
MODEL R/S/T

NUT

€ 2.00

1124114A03H17
ref: 4

GASKET,CYLINDER (NAS)

€ 27.00

0421113189
ref: 5
-09206-13001

PIN

€ 2.50
