DR650RSEU 1993 (P) GERMANY (E22)

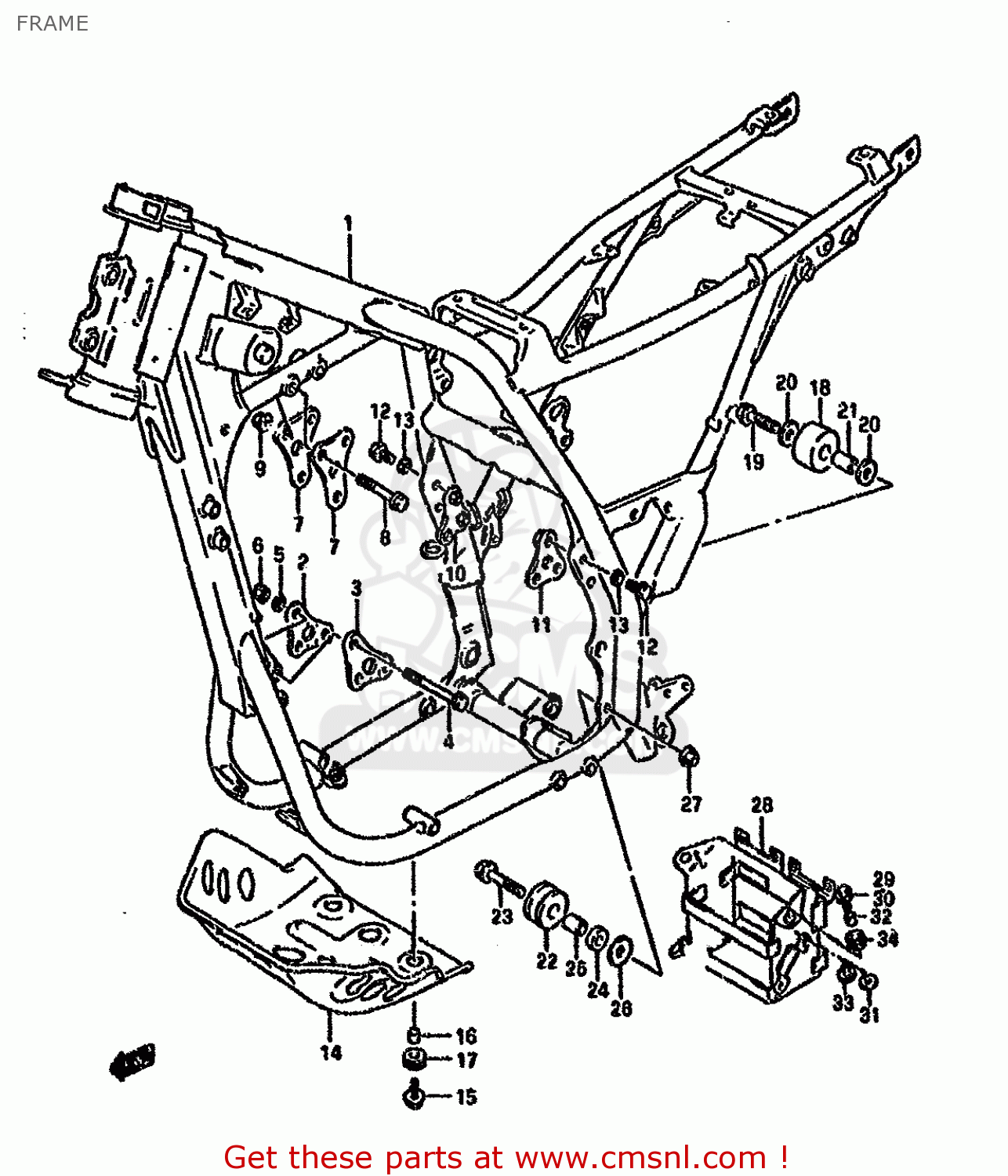

Frame diagram DR650RSEU 1993 (P) GERMANY (E22)
FRAME DR650RSEU 1993 (P) GERMANY (E22)
×
prices are in EUR
ref
part #
description
quantity
1-1
4110012D20ONF
ref: 1-1
MODEL M
FRAME (BLUE)
€ 0.00
1-2
4110012D2028W
ref: 1-2
MODEL M
FRAME (WHITE)
€ 1,219.50
1-3
4110012D20ONH
ref: 1-3
MODEL N
FRAME (RED)
€ 0.00
1-4
4110012D20019
ref: 1-4
MODEL N/P
FRAME (BLACK)
€ 1,934.00
1-5
4110012D221LT
ref: 1-5
MODEL N/P
FRAME (BLUE)
€ 1,934.00
1-6
4110012D22019
ref: 1-6
MODEL R/S
FRAME(BLACK)
€ 1,934.00
1-7
4110012D2224K
ref: 1-7
MODEL R/S/T
FRAME (CHARCOAL)
€ 1,934.00
2
4191112D00019
ref: 2
PLATE,ENG MTG FR,R
€ 9.50
3
4192112D00019
ref: 3
PLATE,ENG MTG FR,L
€ 9.00
4
0910308279
ref: 4
BOLT(8X72)
€ 4.50
5-1
0832131084
ref: 5-1
MODEL M/N/P
LOCK WASHER
€ 2.50
5-2
0832101083
ref: 5-2
MODEL R/S/T
LOCK WASHER
€ 2.50
6
0831921085
ref: 6
NUT
€ 1.50
7-1
4199112D00019
ref: 7-1
MODEL M/N
PLATE,ENGINE MOUNTING
€ 15.50
7-2
4199112D10019
ref: 7-2
MODEL P
PLATE,ENGINE MOUNTING
€ 15.50
7-3
4199112D10
ref: 7-3
MODEL R/S/T
PLATE,ENGINE MOUNTING,UPPER
€ 15.50
8
0910308289
ref: 8
BOLT(8X50)
€ 5.00
9
0831931085
ref: 9
NUT
€ 2.50
10
4194012D00019
ref: 10
PLATE,ENG MTG RR,R
€ 12.00
11
4195012D01019
ref: 11
PLATE,ENG MTG RR,L
€ 10.50
12
0910308266
ref: 12
BOLT(8X20)
€ 2.50
13-1
0832131084
ref: 13-1
MODEL M/N/P
LOCK WASHER
€ 2.50
13-2
0832101083
ref: 13-2
MODEL R/S/T
LOCK WASHER
€ 2.50
14
4251112D10
ref: 14
PROTECTOR,ENGINE
€ 279.00
15
0911806087
ref: 15
BOLT 6X20
€ 3.00
16
0918007005
ref: 16
SPACER (7X9X7)
€ 2.50
17
0932008021
ref: 17
CUSHION
€ 4.00
18
4391101B10
ref: 18
ROLLER,CHAIN CONTROL
€ 14.50
19
0910308083
ref: 19
BOLT(8X41)
€ 3.50
20
0916008021
ref: 20
WASHER (8.2X24X1.6)
€ 2.00
21
0918008136
ref: 21
SPACER (8.6X13.8X28)
€ 9.00
22
4391135B00
ref: 22
ROLLER,CHAIN CONTROL
€ 14.50
23
0910308082
ref: 23
BOLT 8X50
€ 7.00
24
0918008141
ref: 24
SPACER(8.5X15X8.5)
€ 3.50
25
0918008119
ref: 25
SPACER(8.6X12X25.5)
€ 6.50
26
0821108201
ref: 26
WASHER
€ 2.00
27
0831931085
ref: 27
NUT
€ 2.50
28
4154012D20
ref: 28
HOLDER,BATTERY
€ 46.50
29-1
0911606056
ref: 29-1
MODEL M/N/P/R/S
BOLT
€ 2.00
29-2
0911606115
ref: 29-2
MODEL T
BOLT(6X20)
€ 2.00
30-1
0911606047
ref: 30-1
MODEL M/N/P
BOLT(6X25)
€ 2.00
30-2
0911606093
ref: 30-2
MODEL R/S/T
BOLT(6X25)
€ 2.00
31
0916006027
ref: 31
~F.NO.101817 E22:~F.
WASHER (6.5X20X1.2)
€ 2.00
32-1
0918006038
ref: 32-1
~F.NO.101817 E22:~F.
SPACER(6.1X9X7.5)
€ 2.00
32-2
0918006038
ref: 32-2
F.NO.101818~E22:F.NO
SPACER(6.1X9X7.5)
€ 2.00
33-1
4157019C00
ref: 33-1
F.NO.101818~E22:F.NO
PLATE,BATTERY HOLDER
€ 3.50
33-2
4157047D00
ref: 33-2
MODEL T
SPACER COMP,BATTERY
€ 3.00
34
0932008021
ref: 34
CUSHION
€ 4.00
