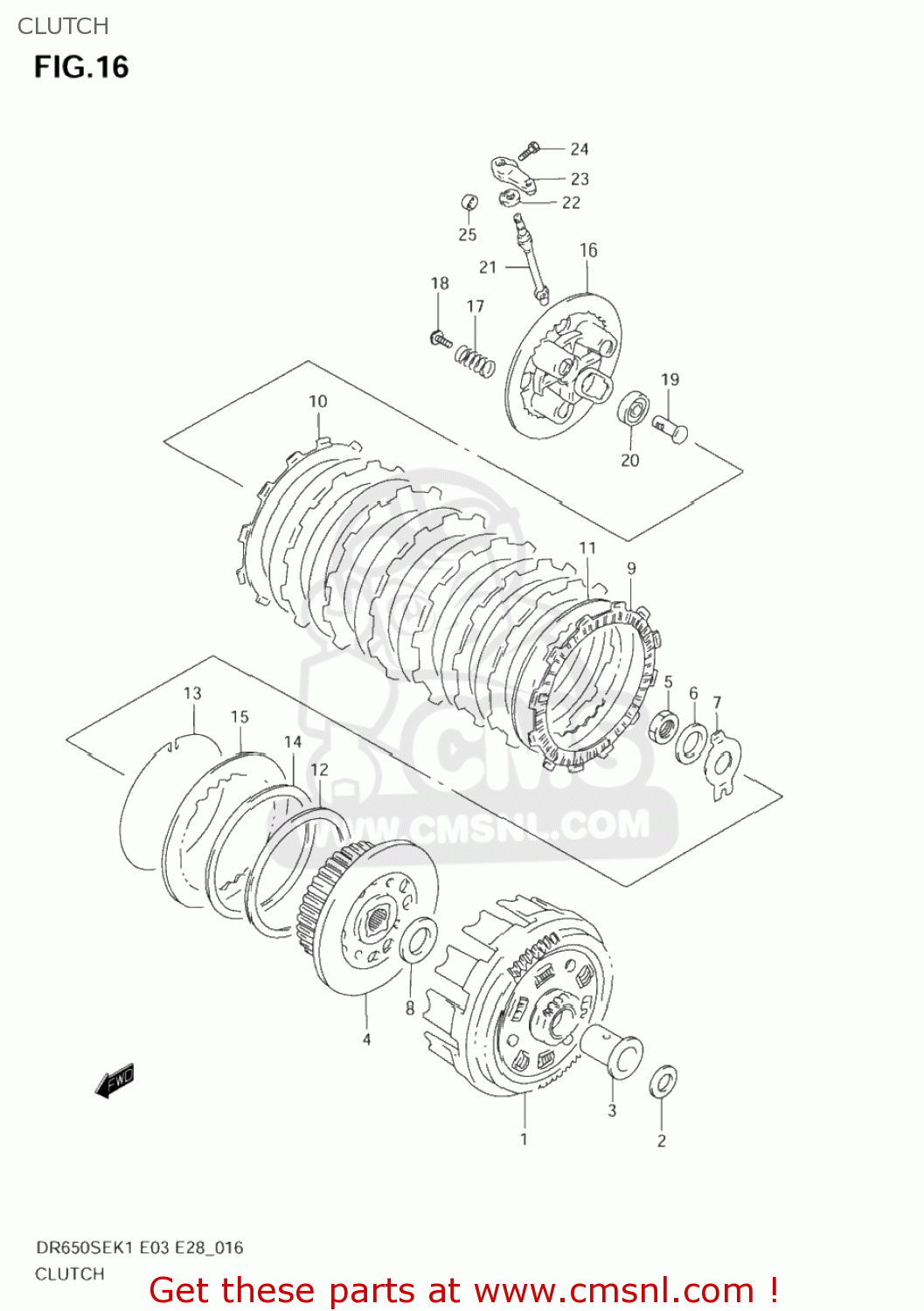

CLUTCH

ref

part #

description

quantity

1

2120044B13
ref: 1
21200-44B21

GEAR ASSEMBLY,PRIMARY DRIVE

€ 296.00

2

0916022032
ref: 2

WASHER(22X32X3)

€ 4.00

3

2125132E00
ref: 3

SPACER,PRIMARY DRIVEN GEAR

€ 18.00

4

2141044B00
ref: 4

HUB,CLUTCH SLEEVE

€ 95.50

5

0914020001
ref: 5

NUT

€ 3.50

6

0916420002
ref: 6

WASHER

€ 3.50

7

0916920005
ref: 7

WASHER

€ 2.50

8

0916022068
ref: 8

WASHER(22X44X2)

€ 9.00

9

2144131D00
ref: 9

PLATE,CLUTCH DRIVE (NAS)

€ 16.00

10

2144144B01
ref: 10

PLATE,CLUTCH DRIVE (NAS)

€ 13.50

11

2145144B00
ref: 11

PLATE,CLUTCH DRIVEN NO.1 (NAS)

€ 7.00

12

2147149100
ref: 12

SEAT,WAVE WASHER

€ 8.00

13

2148145100
ref: 13

RING,STOPPER

€ 5.00

14

0916400003
ref: 14

WASHER

€ 9.00

15

2145149200
ref: 15

PLATE,CLUTCH DRIVEN (NAS)

€ 6.00

16

2146231D00
ref: 16

DISC,CLUTCH PRESSURE

€ 38.50

17

0944020016
ref: 17

SPRING

€ 5.00

18

0911606168
ref: 18

BOLT(6X16)

€ 2.50

19

2316531D00
ref: 19

RACK,CLUTCH RELEASE

€ 17.00

20

0815062007
ref: 20

BEARING

€ 15.50

21

2326132E00
ref: 21

PINION,CLUTCH RELEASE

€ 39.00

22

0928510004
ref: 22

SEAL,OIL(10X17X5)

€ 3.50

23

2327131D00
ref: 23

ARM,CLUTCH RELEASE

€ 27.50

24

0150006163
ref: 24
01500-0616A

BOLT

€ 2.00

25

0926312024
ref: 25

BEARING(12X16X10)

€ 11.00
