TAIL LAMP
DR650SE 2005 (K5) USA (E03)

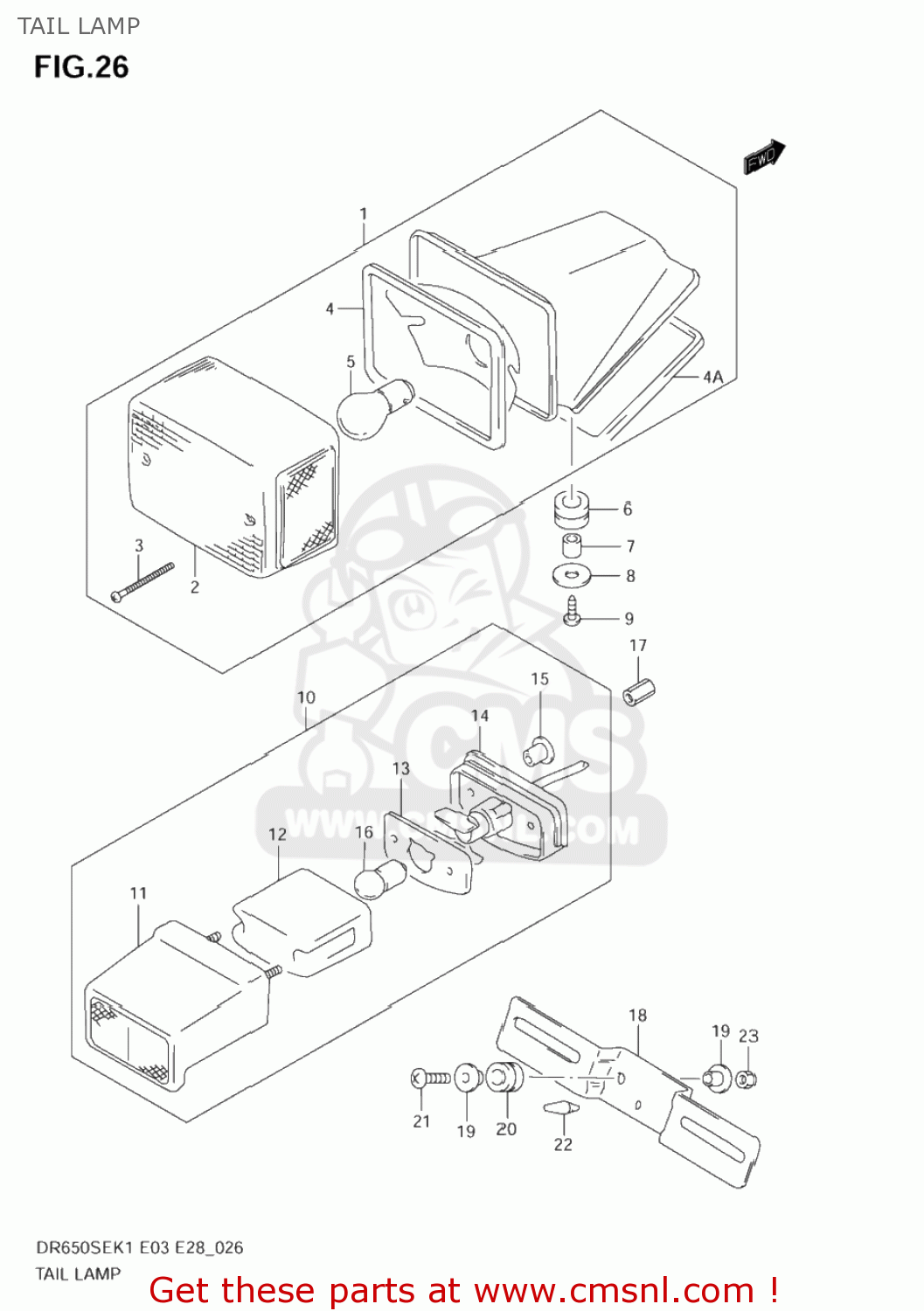

Tail lamp diagram DR650SE 2005 (K5) USA (E03)
TAIL LAMP DR650SE 2005 (K5) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3571032E30
ref: 1
LAMP ASSY,RR COMBINATION
€ 155.50
2
3571214D30
ref: 2
LENS,TAIL LAMP
€ 36.00
3
0912504501
ref: 3
SCREW(4X45)
€ 3.00
4
3571314D30
ref: 4
GASKET,LENS (NAS)
€ 5.00
4A
3571732E30
ref: 4A
GASKET (NAS)
€ 0.00
5
0947112083
ref: 5
09471-12128
BULB(12V21/5W)
€ 6.00
6
0932009016
ref: 6
CUSHION
€ 2.50
7
0918006248
ref: 7
SPACER(6.1X8X9.5)
€ 2.50
8
0916006088
ref: 8
WASHER(6.5X20X1.6)
€ 2.00
9
0214206253
ref: 9
02142-0625A
SCREW
€ 1.50
10
3591032E30
ref: 10
LAMP ASSY,LICENSE
€ 128.00
11
3591717C00
ref: 11
COVER,LICENSE
€ 0.00
12
3591238A30
ref: 12
LENS
€ 11.50
13
3591338A30
ref: 13
GASKET,LICENSE LAMP (NAS)
€ 2.00
14
3576124B31
ref: 14
CUSHION
€ 9.00
15
3576624B30
ref: 15
SPACER
€ 2.00
16
0947112140
ref: 16
09471-12058
BULB(12V5W,BF150-40160A)
€ 4.00
17
0914004006
ref: 17
NUT
€ 4.00
18
3592726E30
ref: 18
BRACKET,LICENSE PLATE
€ 8.00
19
0916906073
ref: 19
WASHER
€ 4.00
20
0932009016
ref: 20
CUSHION
€ 2.50
21
0214206253
ref: 21
02142-0625A
SCREW
€ 1.50
22
0932106023
ref: 22
CUSHION
€ 2.00
23
0831000063
ref: 23
08310-0006A
NUT 6MM
€ 2.00
