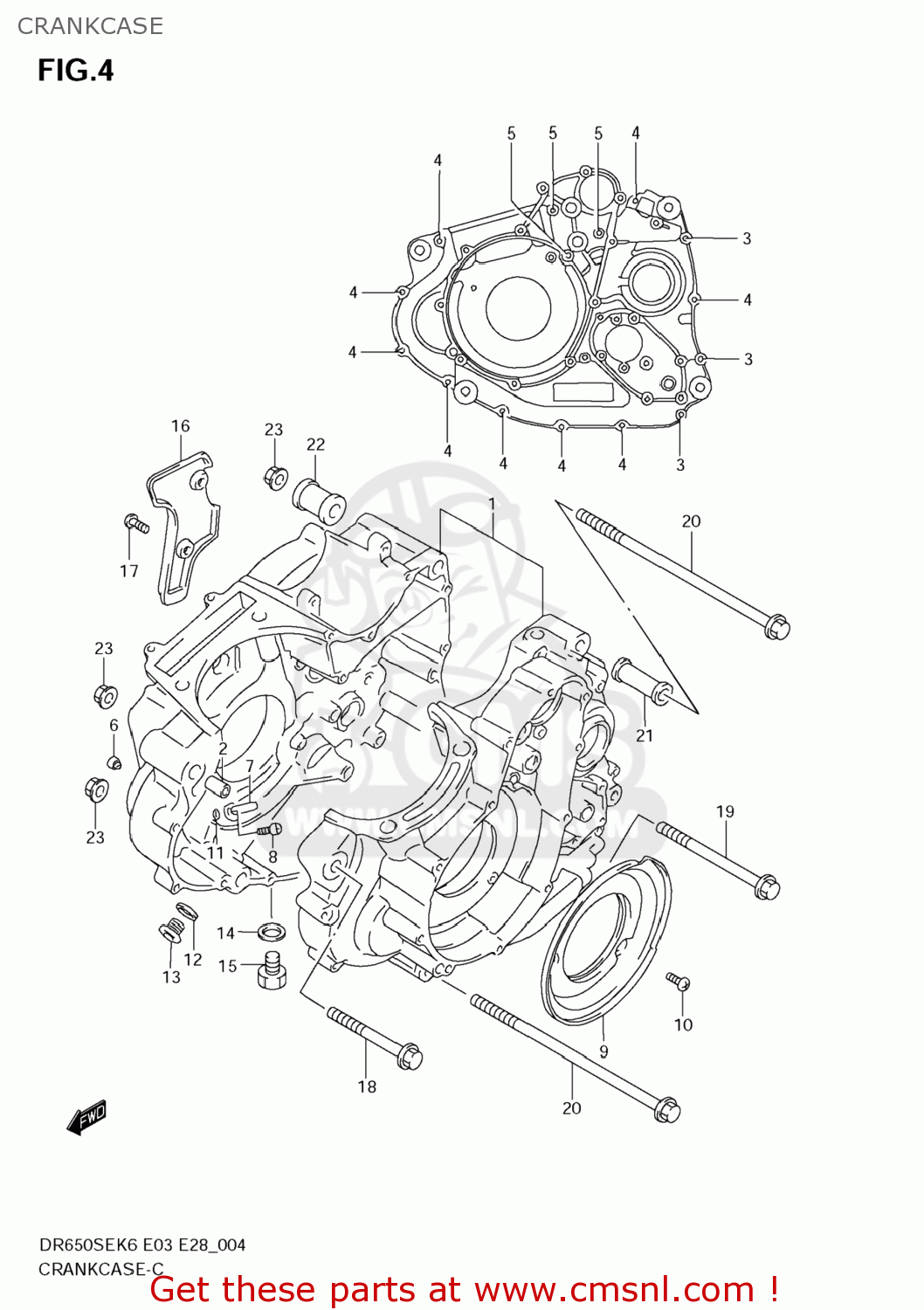

CRANKCASE

ref

part #

description

quantity

1-1

1130032880
ref: 1-1
11300-32881

CRANKCASE SET

€ 562.00

1-2

1130032881
ref: 1-2

CRANKCASE SET

€ 562.00

2

0920210006
ref: 2

PIN

€ 6.50

3

0910306261
ref: 3

BOLT(6X60)

€ 2.50

4

0910306215
ref: 4

BOLT(6X40)

€ 2.00

5-1

015470680B
ref: 5-1

BOLT

€ 3.50

5-2

015470680A
ref: 5-2

BOLT

€ 2.00

6

1118043410
ref: 6

JET,OIL GALLERY

€ 10.50

7

1139004F00
ref: 7

JET,PISTON COOLING

€ 14.50

8

0910606075
ref: 8

BOLT(6X12)

€ 2.50

9

1132332E00
ref: 9

SEPARATOR,CRANKCASE OIL

€ 8.50

10-1

021120612B
ref: 10-1

SCREW

€ 1.50

10-2

021120612A
ref: 10-2

SCREW

€ 1.50

11

0928004004
ref: 11

O RING(D:1.2,ID:4)

€ 2.00

12

0916814002
ref: 12
09168-14004

GASKET(13.8X18.8X4.8) (NAS)

€ 2.50

13

0924814012
ref: 13

PLUG,14X12

€ 5.00

14

0916814002
ref: 14
09168-14004

GASKET(13.8X18.8X4.8) (NAS)

€ 2.50

15

0924714026
ref: 15

PLUG(14X12)

€ 3.50

16

1131732E00
ref: 16

COVER,BREATHER

€ 9.00

17-1

021120612B
ref: 17-1

SCREW

€ 1.50

17-2

021120612A
ref: 17-2

SCREW

€ 1.50

18

0910310110
ref: 18

BOLT(10X100)

€ 6.50

19

0910310237
ref: 19

BOLT(10X130)

€ 5.50

20

0910310239
ref: 20

BOLT(10X235)

€ 12.00

21

1161045410
ref: 21

SPACER,ENGINE MOUNT(L:65)

€ 11.50

22

1161020C00
ref: 22

SPACER,ENGINE MOUNT(L27)

€ 10.00

23

0915910115
ref: 23

NUT

€ 4.00
