TURN SIGNAL LAMP
DR650SE 2006 (K6) USA (E03)

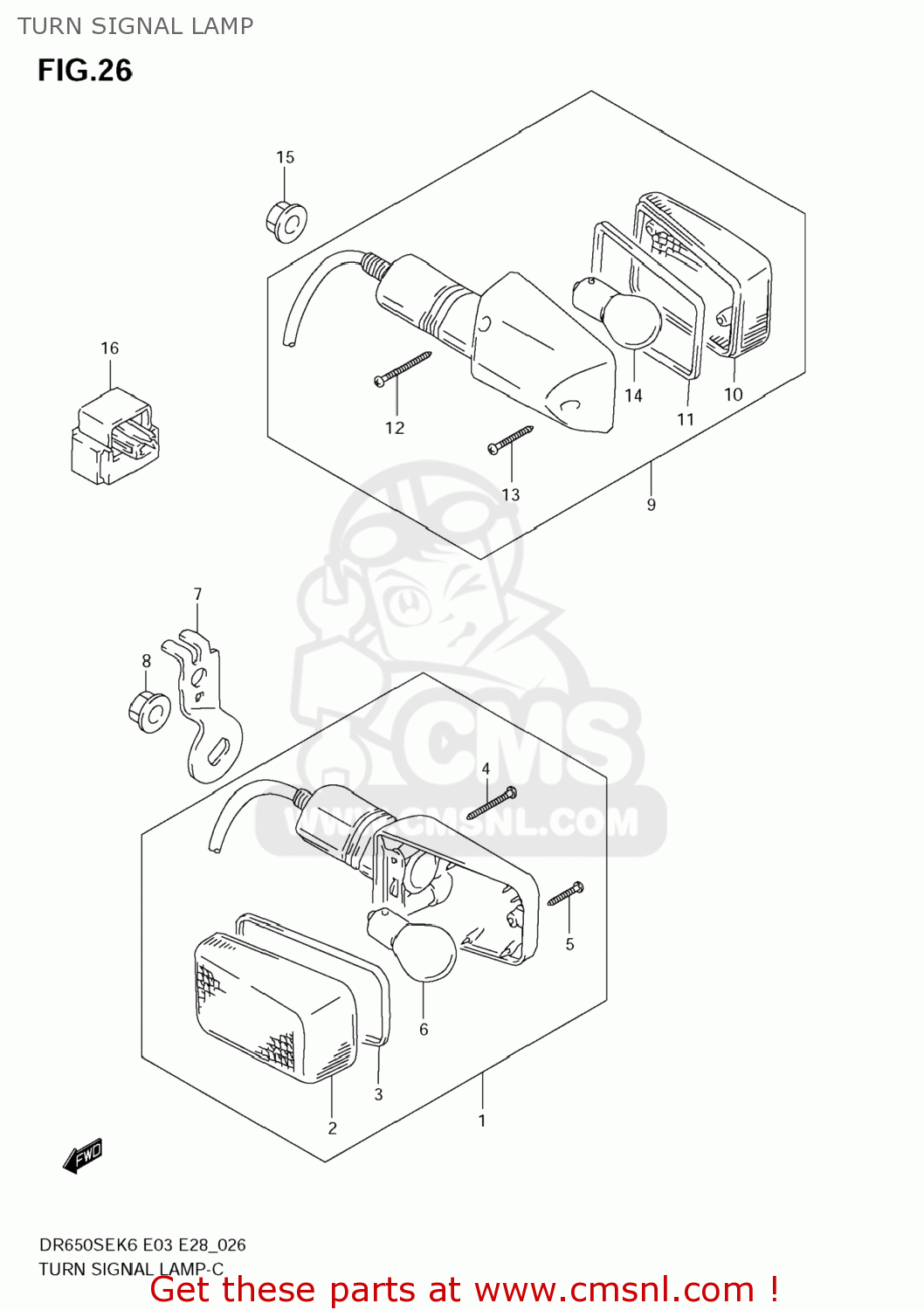

Turn signal lamp diagram DR650SE 2006 (K6) USA (E03)
TURN SIGNAL LAMP DR650SE 2006 (K6) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3560129E30
ref: 1
LAMP ASSY,FR TURN SIGNAL
€ 57.50
2
3561217C20
ref: 2
LENS
€ 6.50
3
3561327A00
ref: 3
GASKET (NAS)
€ 3.00
4
3562327A00
ref: 4
SCREW(3X30)
€ 1.50
5
3572540511
ref: 5
SCREW
€ 1.50
6
0947112045
ref: 6
BULB(12V21W)
€ 5.00
7-1
3567132E00
ref: 7-1
BRACKET,FR TURNSIGNAL,R
€ 6.50
7-2
3568132E00
ref: 7-2
BRACKET,FR TURNSIGNAL,L
€ 6.50
8
083161010B
ref: 8
NUT
€ 2.00
9
3560329E90
ref: 9
LAMP ASSY,RR TURNSIGNAL,R
€ 62.00
10
3565217C20
ref: 10
LENS
€ 6.50
11
3561327A00
ref: 11
GASKET (NAS)
€ 3.00
12
3562327A00
ref: 12
SCREW(3X30)
€ 1.50
13
3572540511
ref: 13
SCREW
€ 1.50
14
0947112045
ref: 14
BULB(12V21W)
€ 5.00
15
083161010B
ref: 15
NUT
€ 2.00
16
3861026E00
ref: 16
RELAY ASSY
€ 47.00
