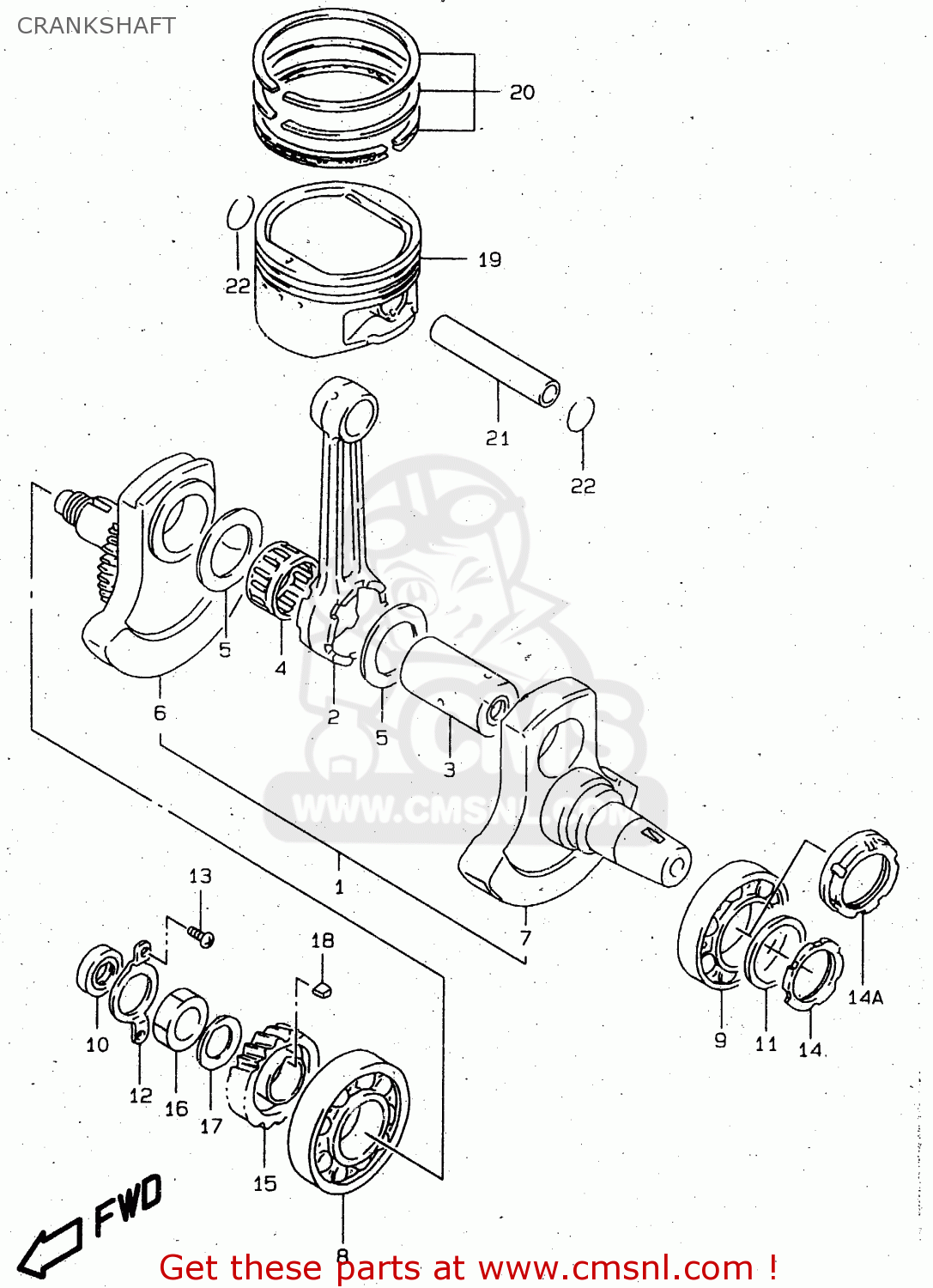

CRANKSHAFT

ref

part #

description

quantity

1

1200032820
ref: 1

CRANKSHAFT SET

€ 554.00

2

1216132E00
ref: 2

CONNECTING ROD

€ 105.00

3

1221132E00
ref: 3

PIN,CRANK

€ 51.00

4

09263370040C0
ref: 4

BEARING(37X47X25)

€ 30.00

5

0916037006
ref: 5

WASHER(37X55X1)

€ 8.50

6

1222132810
ref: 6

CRANKSHAFT SET,R

€ 394.50

7

1226132E00
ref: 7

CRANKSHAFT,L

€ 301.50

8

0926240008
ref: 8

BEARING(40X80X18)

€ 49.00

9

0926245011
ref: 9

BEARING(45X85X19)

€ 50.00

10

0928216002
ref: 10

SEAL,OIL(16X30X6)

€ 8.50

11

0918040003
ref: 11
MODEL T/V

SPACER (40X54X5.5)

€ 9.50

12

1254837400
ref: 12

RETAINER,CRANKSHAFT BEARING,R

€ 6.50

13

0211205083
ref: 13

SCREW

€ 2.00

14

1266444B00
ref: 14
MODEL T/V

NUT,BAL DRIVE SPRKT

€ 26.00

14A

1266404F00
ref: 14A
MODEL W/X

NUT,CRANKSHAFT BRG,L

€ 30.50

15

2111132E00
ref: 15

GEAR,PRIMARY DRIVE(NT:28)

€ 42.00

16

0914020008
ref: 16

NUT (20MM)

€ 4.00

17

0916420003
ref: 17

WASHER

€ 2.50

18

0834131059
ref: 18
MODEL T/V

KEY

€ 3.00

18

0942005007
ref: 18
MODEL W/X

KEY

€ 3.00

19

1211132E000F0
ref: 19

PISTON (100.00MM)

€ 64.50

20

1214032E10
ref: 20

RING SET,PISTON

€ 52.50

21

1215114A01
ref: 21

PIN,PISTON

€ 18.00

22

0938123003
ref: 22

CIRCLIP

€ 1.50
