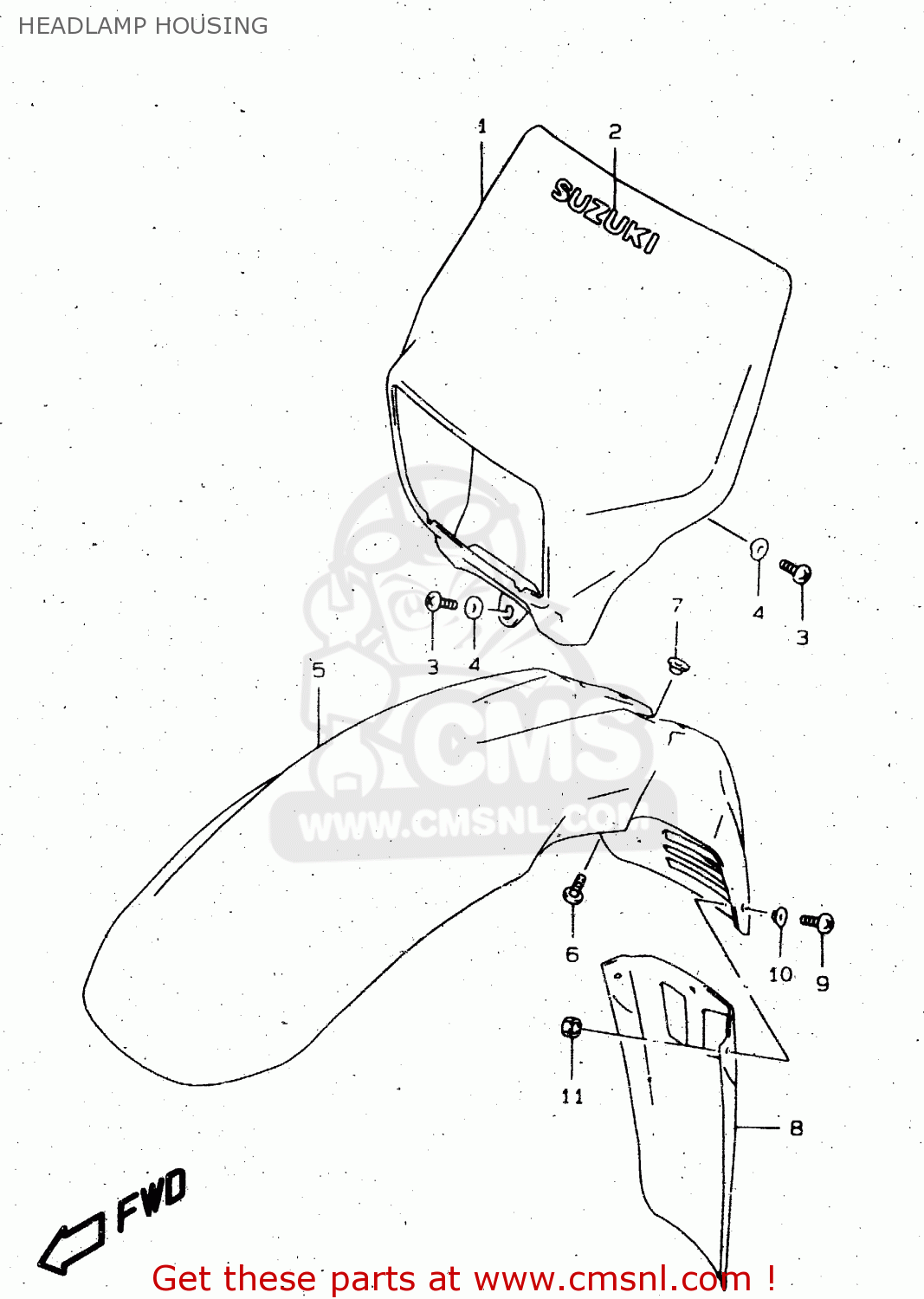

HEADLAMP HOUSING

ref

part #

description

quantity

1

5181132E0030H
ref: 1
FOR E3D, L9W

COVER,HEADLAMP

€ 78.50

1

5181132E00019
ref: 1
FOR 019

COVER,HEADLAMP

€ 83.00

2

6817144B00E9G
ref: 2
MODEL T/V FOR E3D

EMBLEM,SUZUKI

€ 7.00

2

6817144B0087N
ref: 2
MODEL T FOR 019

EMBLEM,SUZUKI

€ 7.00

2

6817144B00G3S
ref: 2
MODEL V FOR 019

EMBLEM (SUZUKI)

€ 7.00

2

6817144B00F6F
ref: 2
MODEL W FOR E3D

EMBLEM

€ 7.00

2

6817144B00J7A
ref: 2
MODEL W FOR 019

EMBLEM,SUZUKI

€ 7.50

2

6817144B00L5D
ref: 2
MODEL X FOR L9W

EMBLEM

€ 7.50

2

6817144B0087N
ref: 2
MODEL X FOR 019

EMBLEM,SUZUKI

€ 7.00

3

0214206123
ref: 3

SCREW 6X12

€ 2.00

4

0916906033
ref: 4

WASHER

€ 1.50

5

5311113E0030H
ref: 5
FOR E3D, L9W

FENDER,FR

€ 43.00

5

5311113E00019
ref: 5
FOR 019

FENDER,FR

€ 70.50

5

5311113E1030H
ref: 5
E17, E18, E22 FOR E3

FENDER,FR

€ 81.50

5

5311113E10019
ref: 5
E17, E18, E22 FOR 01

FENDER,FR

€ 81.50

6

0911606170
ref: 6

BOLT(6X16)

€ 3.00

7

0916906073
ref: 7

WASHER

€ 4.00

8

5331132E00
ref: 8
E17, E18, E22

MUDFLAP,FR FENDER

€ 17.50

9

0214205103
ref: 9
E17, E18, E22

SCREW

€ 2.50

10

0916005037
ref: 10
E17, E18, E22

WASHER(5.5X16X1.2)

€ 1.50

11

0914005006
ref: 11
E17, E18, E22

NUT

€ 2.00

all assemblies
