STARTER CLUTCH

DR800S 1995 (S) (E04 E22 E34 E37)

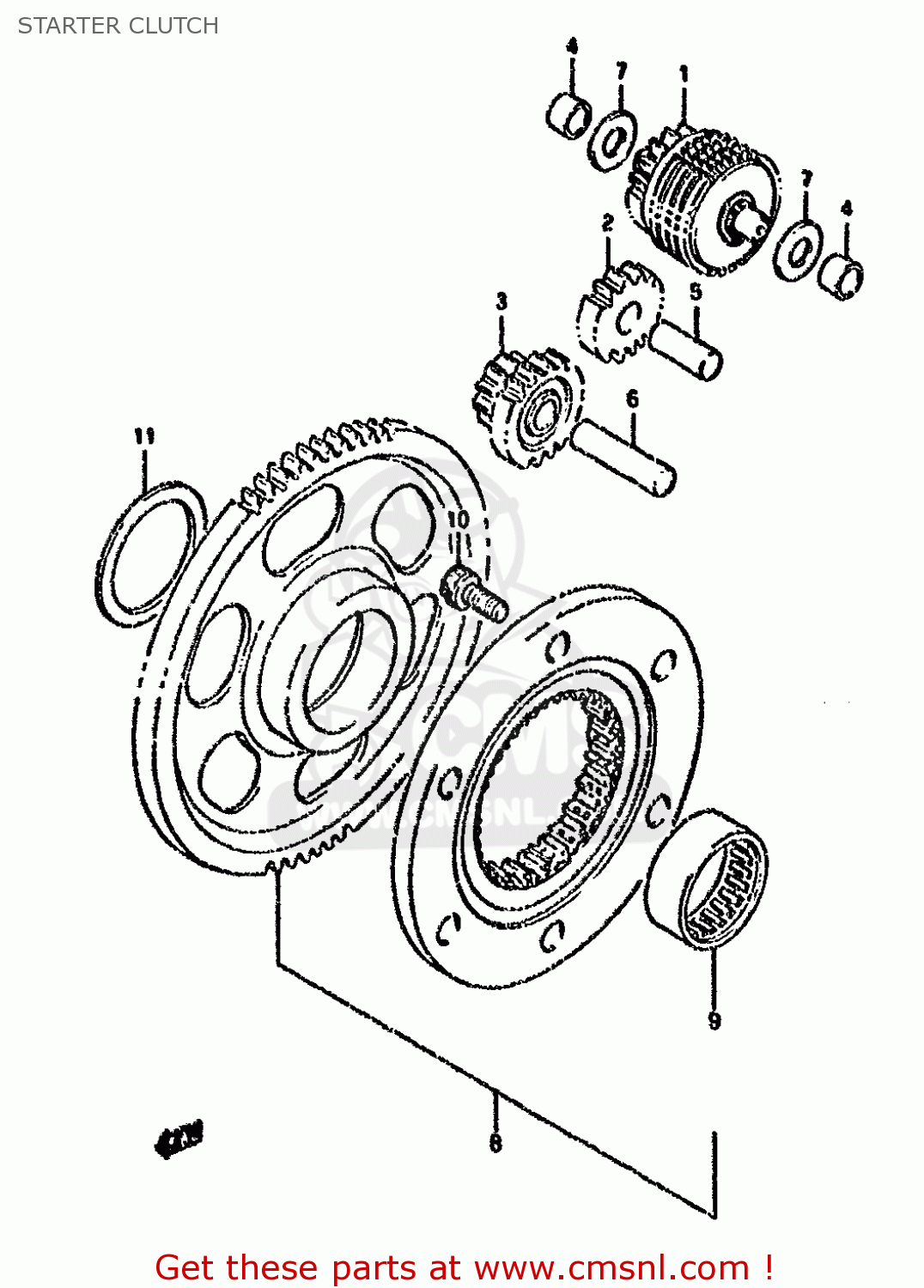

Starter clutch diagram DR800S 1995 (S) (E04 E22 E34 E37)

STARTER CLUTCH DR800S 1995 (S) (E04 E22 E34 E37)

STARTER CLUTCH DR800S 1995 (S) (E04 E22 E34 E37)

prices are in EUR

ref

part #

description

quantity

1

1260031D01
ref: 1

LIMITER ASSY,S

€ 182.00

2

1261231D00
ref: 2
NT:14

GEAR,STARTER IDLE NO.2

€ 34.50

3

1261331D00
ref: 3
NT:10/18

GEAR,STARTER IDLE NO.3

€ 58.50

4

1261831D01
ref: 4

BUSH,LIMITER GEAR SHAFT

€ 17.50

5

0920210006
ref: 5

PIN

€ 6.50

6

0920210010
ref: 6

PIN

€ 8.50

7

0821110221
ref: 7

WASHER

€ 2.50

8

1260044841
ref: 8

CLUTCH SET,STARTER

€ 337.50

9

0926335024
ref: 9

BEARING(35X43X18)

€ 31.50

10

0713008163
ref: 10
-09106-08043

BOLT

€ 3.00

11

0821140523
ref: 11

WASHER

€ 6.00
