WIRING HARNESS (MODEL T)
DR800S 1995 (S) (E04 E22 E34 E37)

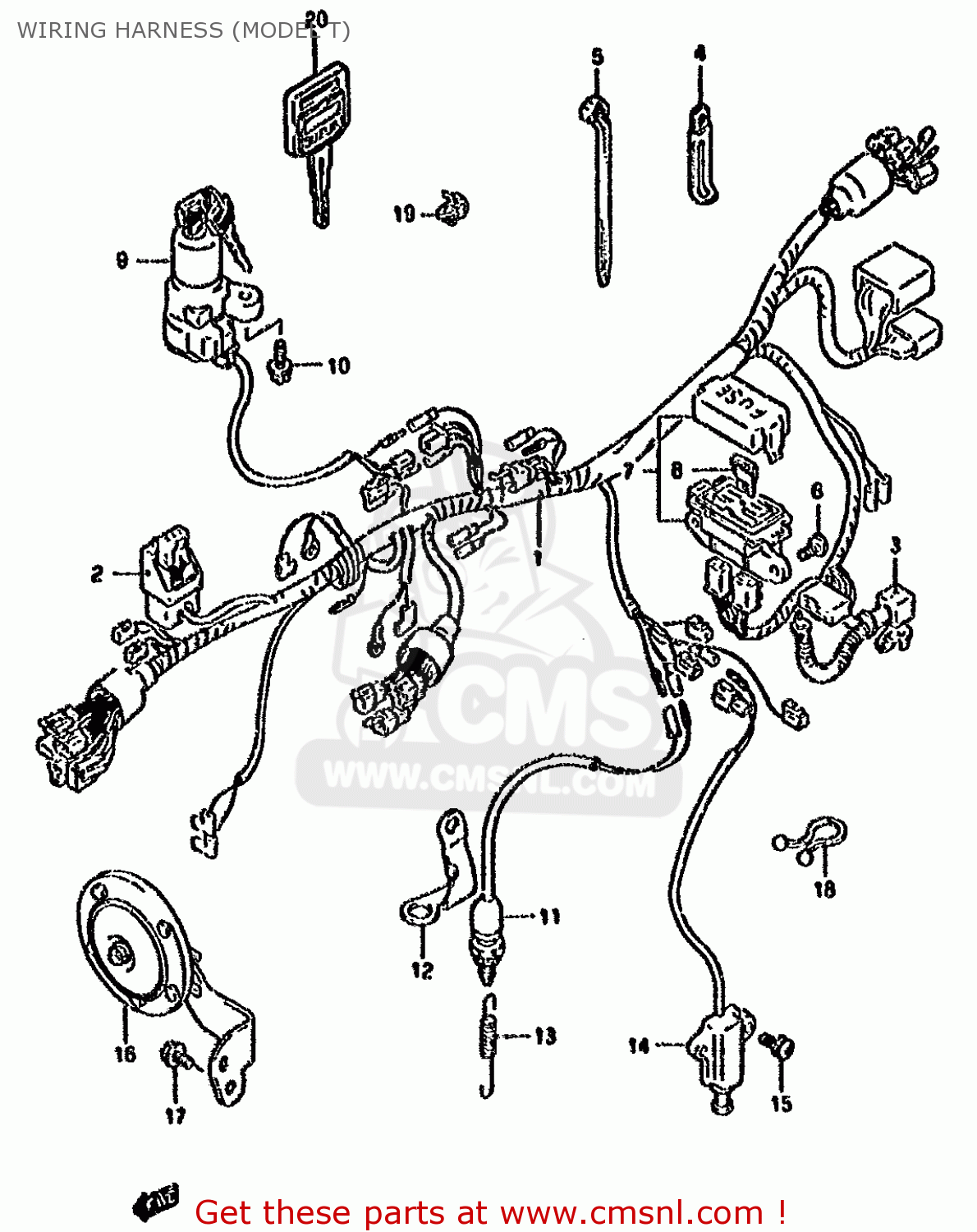

Wiring harness (model t) diagram DR800S 1995 (S) (E04 E22 E34 E37)
WIRING HARNESS (MODEL T) DR800S 1995 (S) (E04 E22 E34 E37)
×
prices are in EUR
ref
part #
description
quantity
1
3661031D50
ref: 1
HARNESS, WIRING
€ 386.00
2
3298044B00
ref: 2
COVER,DECOMPRESSION CONTROL UNIT
€ 5.50
3
3362435B00
ref: 3
CAP,BATTERY PLUS
€ 6.50
4-1
0940406431
ref: 4-1
CLAMP(L:65)
€ 2.50
4-2
0940406432
ref: 4-2
CLAMP(L:65)
€ 2.50
4-3
0940406426
ref: 4-3
CLAMP
€ 3.00
5-1
0940711401
ref: 5-1
CLAMP(L:95)
€ 2.50
5-2
0940712402
ref: 5-2
CLAMP(L:120)
€ 3.00
5-3
0940714403
ref: 5-3
CLAMP(L:125)
€ 2.50
5-4
0940725401
ref: 5-4
CLAMP(L:235)
€ 4.00
5-5
0940730401
ref: 5-5
CLAMP(L:300)
€ 4.50
6
0214206123
ref: 6
SCREW 6X12
€ 2.00
7
3674031D00
ref: 7
BOX ASSY,FUSE
€ 41.00
8-1
0948110101
ref: 8-1
FUSE(10A)
€ 2.50
8-2
0948120101
ref: 8-2
FUSE(20A)
€ 2.00
9
3710012D11
ref: 9
LOCK ASSY,STEERING
€ 128.00
10
0913906026
ref: 10
SCREW(6X18)
€ 2.50
11
3774031D00
ref: 11
SWITCH ASSY,STOP LAMP
€ 20.50
12
4325144B0024K
ref: 12
BRACKET,STOP LAMP SWITCH
€ 8.50
13
0944306012
ref: 13
SPRING
€ 3.00
14
3784044X50
ref: 14
SWITCH ASSY,SIDE STAND
€ 75.50
15
0211236203
ref: 15
SCREW
€ 2.00
16
3850031D00
ref: 16
HORN ASSY
€ 55.00
17
0155006123
ref: 17
BOLT
€ 2.50
18
0940800012
ref: 18
CLIP(ID:11.5)
€ 2.00
19
0940308405
ref: 19
CLAMP
€ 2.00
20
3714626D10
ref: 20
OPT
KEY,BLANK
€ 41.50
12-1
4325144B0028W
ref: 12-1
MODEL M/N/P-43251-44
BRACKET (WHITE)
€ 8.50
12-2
4325144B0024K
ref: 12-2
MODEL R
BRACKET,STOP LAMP SWITCH
€ 8.50
13
0944306012
ref: 13
SPRING
€ 3.00
14-1
3784044A11
ref: 14-1
MODEL M/N/P,-37840-4
SWITCH ASSEMBLY,SIDE STAND
€ 75.50
14-2
3784044A20
ref: 14-2
MODEL R
SWITCH ASSEMBLY,SIDE STAND
€ 75.50
15
0211236203
ref: 15
SCREW
€ 2.00
16-1
3850031D10
ref: 16-1
HORN ASSY
€ 64.00
16-2
3850031D00
ref: 16-2
E1,E4,E18,E21,E22,E2
HORN ASSY
€ 55.00
17-1
0151706125
ref: 17-1
MODEL M/N/P
BOLT 6X12
€ 2.50
17-2
0155006123
ref: 17-2
MODEL R
BOLT
€ 2.50
18
0940800012
ref: 18
CLIP(ID:11.5)
€ 2.00
19
0940800061
ref: 19
CLAMP
€ 2.00
20
3714626D10
ref: 20
OPT
KEY,BLANK
€ 41.50
