CRANKCASE COVER
DR800SU 1992 (N) GERMANY (E22)

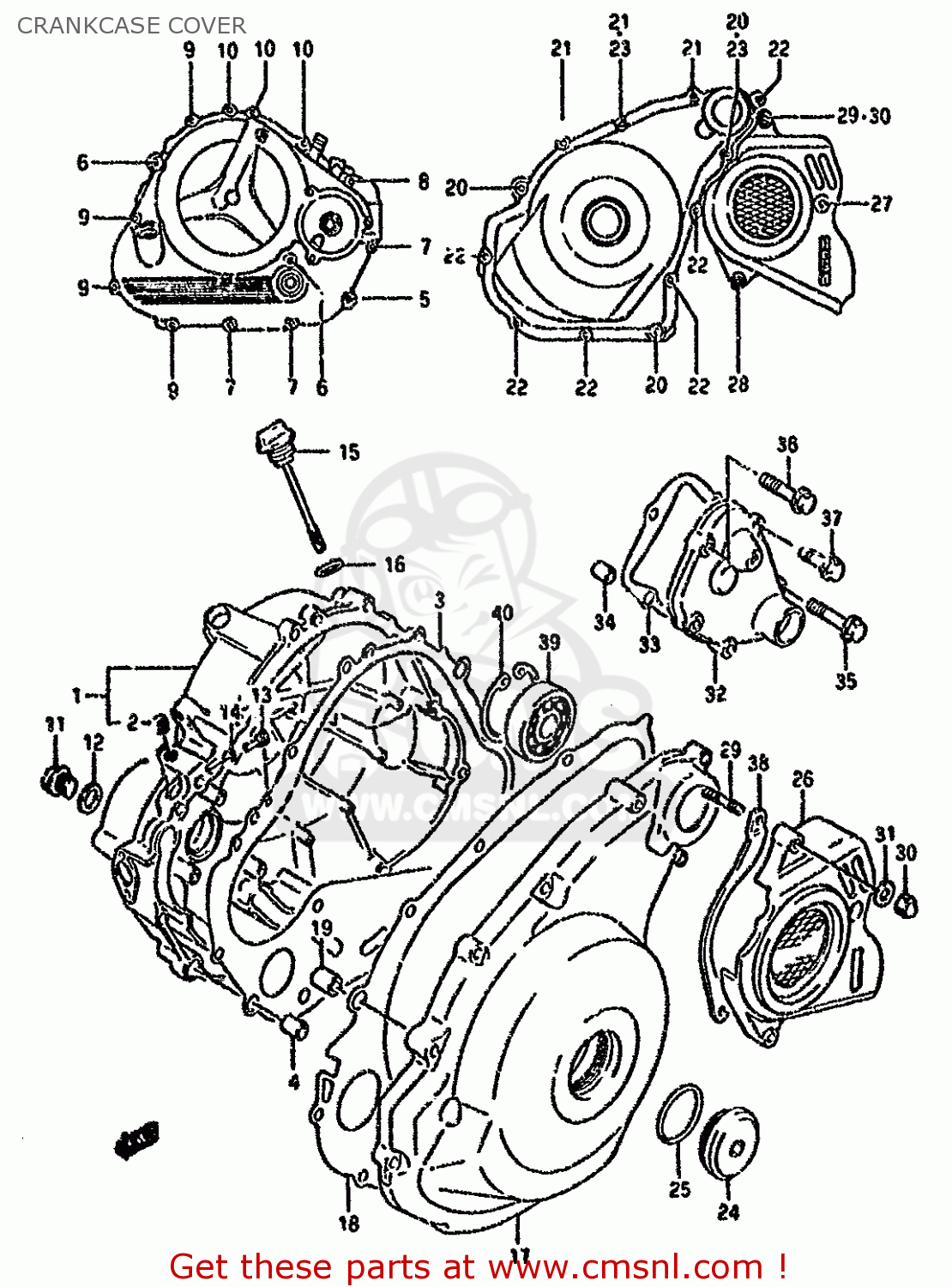

Crankcase cover diagram DR800SU 1992 (N) GERMANY (E22)
CRANKCASE COVER DR800SU 1992 (N) GERMANY (E22)
×
prices are in EUR
ref
part #
description
quantity
1
1134044B0220H
ref: 1
COVER,CLUTCH
€ 375.00
2-1
0924605001
ref: 2-1
MODEL M/N/P/R/S
PLUG
€ 3.50
2-2
0924605006
ref: 2-2
MODEL T
PLUG(1/8PT,H:5.5)
€ 3.50
3
1148244B10
ref: 3
GASKET,CLUTCH COVER (NAS)
€ 48.50
4
0421113189
ref: 4
-09206-13001
PIN
€ 2.50
5
0154706607
ref: 5
BOLT
€ 2.50
6
0154706507
ref: 6
BOLT
€ 2.50
7
0154706457
ref: 7
BOLT
€ 2.50
8
0154706407
ref: 8
BOLT
€ 2.50
9
0154706307
ref: 9
BOLT
€ 2.50
10
0154706257
ref: 10
BOLT
€ 2.50
11
0924714015
ref: 11
PLUG(14X12)
€ 2.50
12
0916814002
ref: 12
GASKET(13.8X18.8X4.8) (NAS)
€ 2.50
13
0949336003
ref: 13
JET
€ 9.00
14
0928004004
ref: 14
O RING(D:1.2,ID:4)
€ 2.00
15
1197044B30
ref: 15
GAUGE,OIL LEVEL
€ 19.50
16
0928017003
ref: 16
O RING(D:3.1,ID:16.8)
€ 2.00
17
1135144B1120H
ref: 17
COVER, MAGNETO
€ 149.50
18
1148344B11
ref: 18
GASKET,MAGNETO COVER (NAS)
€ 68.50
19
0421113189
ref: 19
-09206-13001
PIN
€ 2.50
20
0154706457
ref: 20
BOLT
€ 2.50
21
0154706357
ref: 21
BOLT
€ 2.50
22
0154706257
ref: 22
BOLT
€ 2.50
23-1
0916806023
ref: 23-1
MODEL M/N/P
GASKET(5.8X13X1.2) (NAS)
€ 2.00
23-2
0916806024
ref: 23-2
MODEL R/S/T
GASKET(5.8X11X1.2) (NAS)
€ 2.00
24
092593601620H
ref: 24
PLUG(SILVER)
€ 10.50
25
0928033004
ref: 25
O RING(D:3.1,ID:32.7)
€ 2.50
26
1136044B0020H
ref: 26
COVER,ENGINE SPROCKET
€ 51.50
27
0154706307
ref: 27
BOLT
€ 2.50
28
0154706257
ref: 28
BOLT
€ 2.50
29
0910806107
ref: 29
BOLT,STUD
€ 4.00
30
0831310067
ref: 30
NUT
€ 2.00
31
0832201067
ref: 31
WASHER
€ 2.00
32
1137144B0020H
ref: 32
COVER,GEAR SHIFT
€ 64.00
33
1148544B10
ref: 33
GASKET,GEAR SHIFT COVER (NAS)
€ 10.00
34
0421109129
ref: 34
PIN
€ 2.00
35-1
0154706307
ref: 35-1
MODEL M/N/P
BOLT
€ 2.50
35-2
0154706303
ref: 35-2
MODEL R/S/T
BOLT,G/S SWITC
€ 3.00
36-1
0154706257
ref: 36-1
MODEL M/N/P
BOLT
€ 2.50
36-2
0154706253
ref: 36-2
MODEL R/S/T
SCREW
€ 2.50
37-1
0154706167
ref: 37-1
MODEL M/N/P
BOLT
€ 2.00
37-2
0154706163
ref: 37-2
MODEL R/S/T
BOLT
€ 2.50
38
2764144B01
ref: 38
PLATE,FR CHAIN GUIDE
€ 5.50
39
0926212001
ref: 39
-08110-60010
BEARING(12X28X8)
€ 15.00
40
0833141286
ref: 40
CIRCLIP
€ 3.50
