SPEEDOMETER (MODEL S/T)
DR800SU 1992 (N) GERMANY (E22)

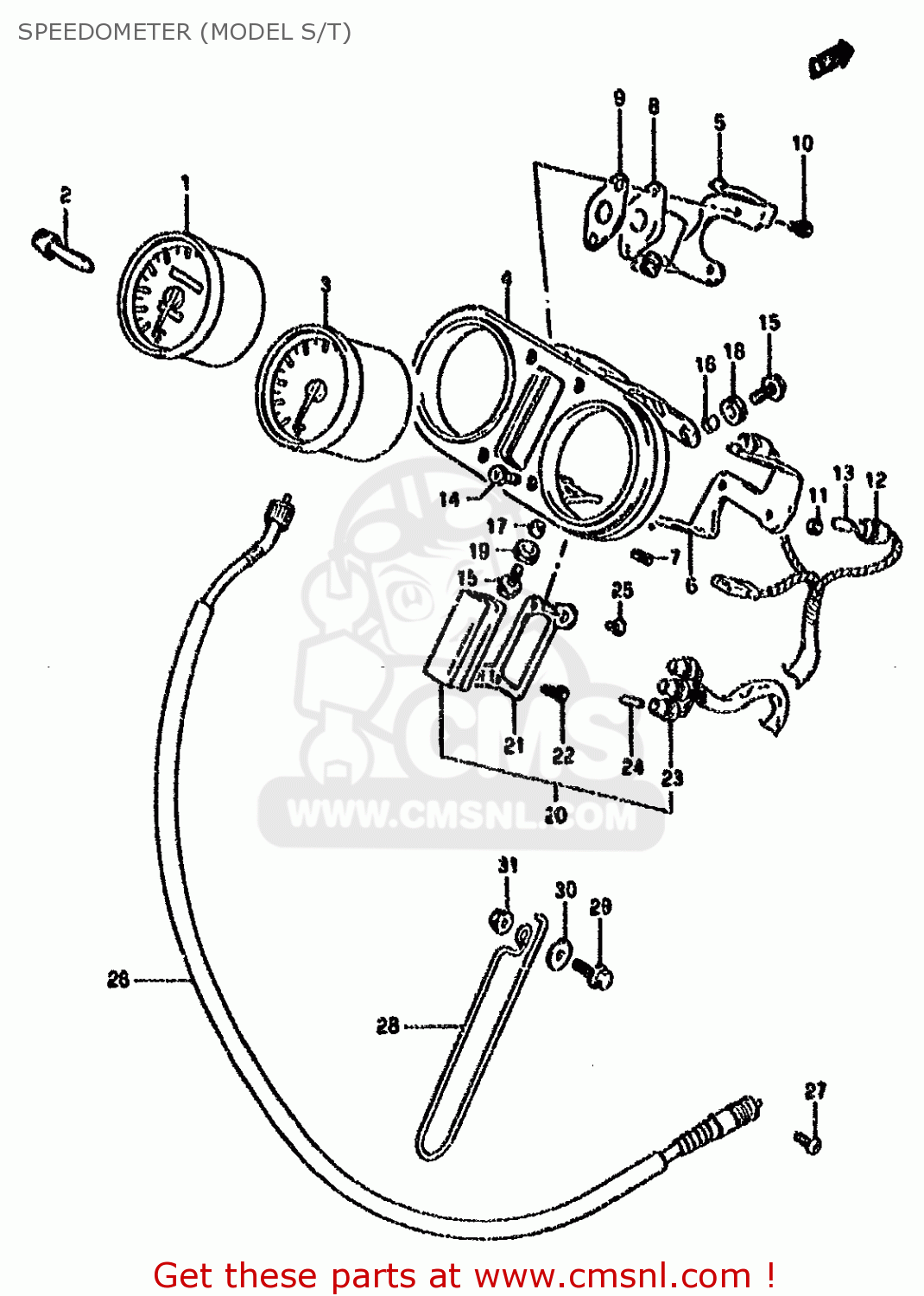

Speedometer (model s/t) diagram DR800SU 1992 (N) GERMANY (E22)
SPEEDOMETER (MODEL S/T) DR800SU 1992 (N) GERMANY (E22)
×
prices are in EUR
ref
part #
description
quantity
1
3411031D00
ref: 1
SPEEDOMETER(KILO)
€ 419.50
2
3412449400
ref: 2
KNOB,TRIP
€ 4.50
3
3421031D00
ref: 3
TACHOMETER
€ 430.50
4
3495031D00
ref: 4
PANEL, METER
€ 80.50
5
3411131D00
ref: 5
BRACKET,SPEEDOMETER
€ 43.00
6
3421131D00
ref: 6
BRACKET, TACHOMETER
€ 36.50
7
3419632C00
ref: 7
DAMPER
€ 4.50
8
3413148B10
ref: 8
GEAR BOX
€ 150.00
9
3413217C00
ref: 9
GASKET,METER GEAR BOX (NAS)
€ 5.50
10
0211234123
ref: 10
SCREW
€ 2.00
11
0831011045
ref: 11
NUT
€ 2.00
12
3417031D00
ref: 12
SOCKET
€ 22.00
13
0947112103
ref: 13
BULB(12V3W,T6.5)
€ 2.50
14
3419931D00
ref: 14
BOLT
€ 8.50
15
0911606143
ref: 15
BOLT 6X20
€ 2.00
16
0918006090
ref: 16
SPACER (6.4X9X10.5)
€ 2.00
17
0918006044
ref: 17
SPACER (6.1X8X9.5)
€ 2.50
18
0932008047
ref: 18
CUSHION
€ 4.00
19
0932009026
ref: 19
CUSHION
€ 4.00
20
3638031D00
ref: 20
BOX ASSY, PILOT LAMP
€ 91.00
21
3638331D00
ref: 21
BRACKET,PILOT BOX
€ 13.00
22
0321104103
ref: 22
SCREW, OUTER
€ 2.00
23
3639431D00
ref: 23
SOCKET
€ 24.00
24
0947112118
ref: 24
BULB(13.5V,2W,A7427)
€ 2.00
25
0211234063
ref: 25
SCREW
€ 1.50
26-1
3491031D00
ref: 26-1
MODEL S
CABLE ASSY,SPE
€ 79.50
26-2
3491031D01
ref: 26-2
MODEL T
CABLE ASSY,SPEEDOMETER
€ 79.50
27
0211205163
ref: 27
SCREW
€ 2.00
28
3493814D30
ref: 28
GUIDE,METER CABLE NO.2
€ 8.00
29-1
0155006203
ref: 29-1
MODEL S
BOLT
€ 2.50
29-2
0911606167
ref: 29-2
MODEL T
BOLT(6X20)
€ 2.00
30
0916006066
ref: 30
WASHER(6.5X20X1.6)
€ 2.00
31
0831610063
ref: 31
NUT
€ 2.50
30
3493814D30
ref: 30
GUIDE,METER CABLE NO.2
€ 8.00
31
0155006207
ref: 31
BOLT
€ 2.50
32
0916006066
ref: 32
-09160-06020
WASHER(6.5X20X1.6)
€ 2.00
33-1
0915906017
ref: 33-1
MODEL M/N/P
NUT
€ 2.50
33-2
0831610063
ref: 33-2
MODEL R
NUT
€ 2.50
