AIR CLEANER
DS100 1979 (N) USA (E03)

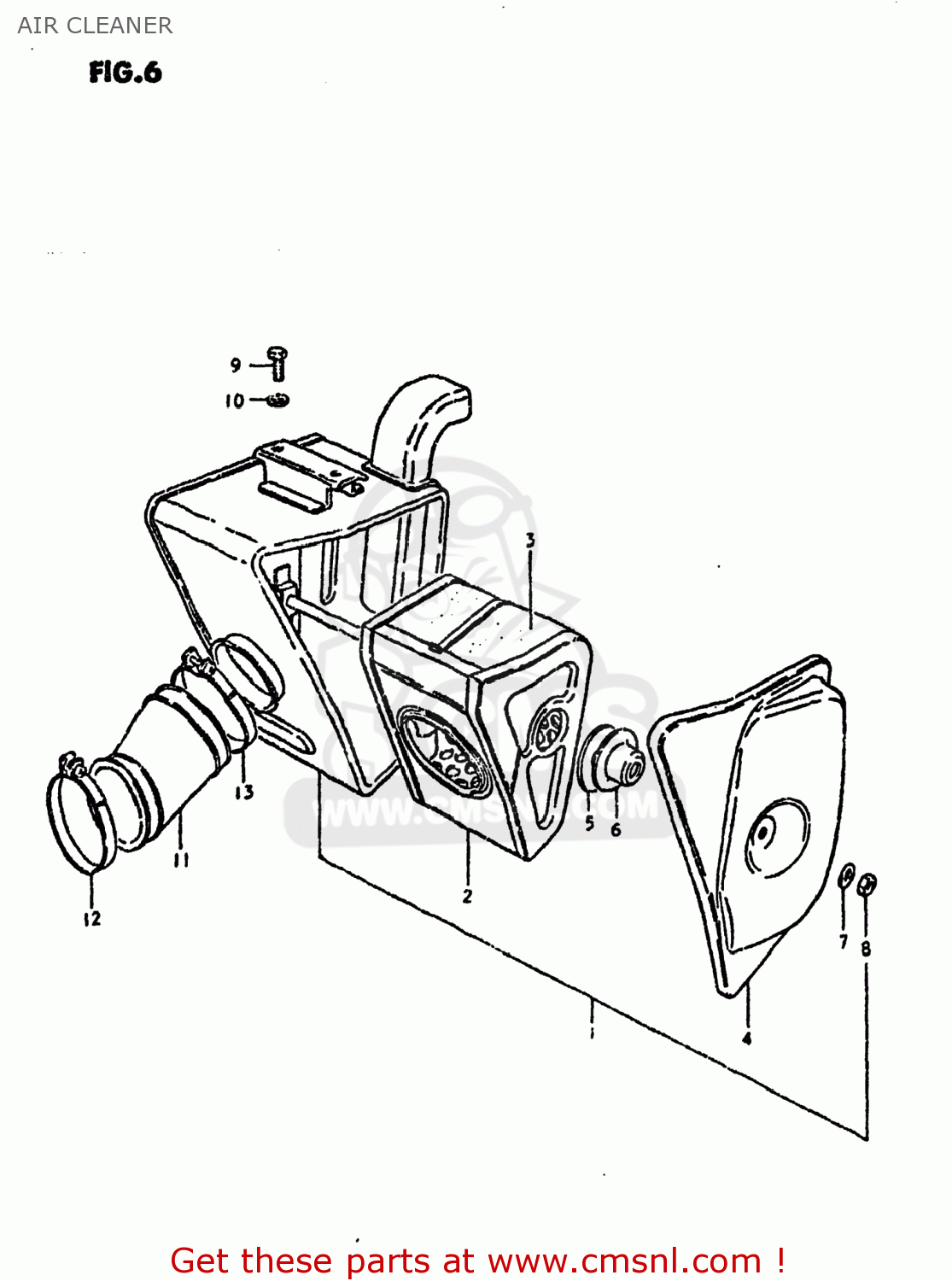

Air cleaner diagram DS100 1979 (N) USA (E03)
AIR CLEANER DS100 1979 (N) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
1370048010
ref: 1-1
13700-48511
CLEANER ASSEMBLY,AIR
€ 137.00
1-2
1370048510
ref: 1-2
13700-48511
CLEANER ASSEMBLY,AIR
€ 137.00
2
1378029310
ref: 2
FILTER ASSY,AIR CLEANER
€ 25.00
3
1378129310
ref: 3
FILTER
€ 5.50
4
1377129310
ref: 4
CAP
€ 12.00
5
1372828010
ref: 5
WASHER,AIR CLEANER ELEMENT
€ 2.00
6-1
1379129310
ref: 6-1
HOLDER,FILTER
€ 7.00
6-2
1379029310
ref: 6-2
SPACER
€ 7.00
7
0832221068
ref: 7
08322-01067
WASHER
€ 2.00
8
0831011068
ref: 8
08310-00067
NUT
€ 2.50
9
0110706128
ref: 9
01500-06127
BOLT
€ 2.00
10
0832221068
ref: 10
08322-01067
WASHER
€ 2.00
11
1388148000
ref: 11
HOSE,CARBURETOR AIR INLET
€ 15.00
12
0940252306
ref: 12
CLAMP
€ 6.00
13
0940260306
ref: 13
09402-60208
CLAMP
€ 4.50
