FRONT FORK (DS100C)
DS100 1979 (N) USA (E03)

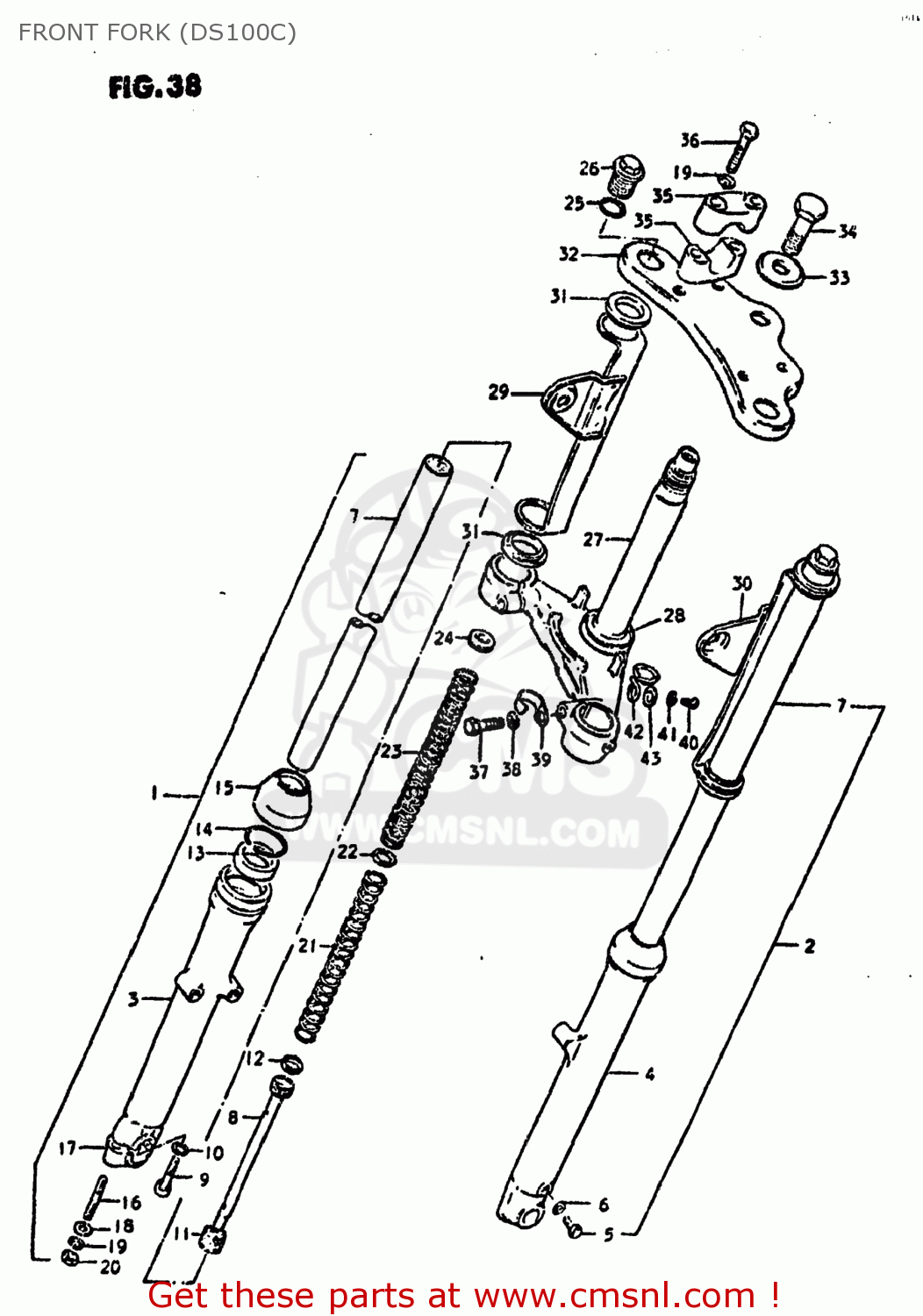

Front fork (ds100c) diagram DS100 1979 (N) USA (E03)
FRONT FORK (DS100C) DS100 1979 (N) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
0
5110048300291
ref: 0
DAMPER SET
€ 0.00
1
5110348300
ref: 1
DAMPER ASSEMBLY,RIGHT
€ 88.00
2
5110448300
ref: 2
DAMPER ASSEMBLY,LEFT
€ 70.50
3
5113148300291
ref: 3
TUBE,FORK,OUTER,RIGHT
€ 73.00
4
5114148300291
ref: 4
TUBE,FORK,LEFT,OUTER
€ 75.00
5
0910006011
ref: 5
BOLT(6X8)
€ 2.50
6
5118331030
ref: 6
GASKET,DRAIN,PLUG (NAS)
€ 4.00
7
5111048130
ref: 7
51110-48131
TUBE,FORK,INNER
€ 79.50
8
5114648130
ref: 8
PIPE,FORK SEAT
€ 21.00
9
5114748130
ref: 9
BOLT(8X27)
€ 3.50
10
5114831030
ref: 10
51148-36011
GASKET (NAS)
€ 4.00
11
5117746100
ref: 11
SPRING,REBOUND
€ 3.50
12
5119646100
ref: 12
RING,PISTON
€ 6.00
13
5115326130
ref: 13
51153-13200
OIL SEAL,FRONT FORK
€ 14.50
14
5115648130
ref: 14
RING,OIL SEAL STOPPER
€ 3.50
15
5117326130
ref: 15
51571-13200
DUST SEAL,FRONT FORK
€ 9.00
16
0142108258
ref: 16
01421-0825A
STUD 8X25
€ 2.50
17
5113248200291
ref: 17
HOLDER,AXLE(BLACK)
€ 9.50
18
0832221088
ref: 18
08322-01087
WASHER
€ 2.00
19
0832121088
ref: 19
08321-01087
LOCK WASHER
€ 2.00
20
0831012088
ref: 20
08310-00087
NUT
€ 2.00
21
5117148130
ref: 21
SPRING,FRONT FORK
€ 6.00
22
5119246100
ref: 22
JOINT,SPRING
€ 2.50
23
5118448130
ref: 23
SPRING,FRONT FORK
€ 7.00
24
5135348130
ref: 24
NUT,FORK SPRING,UPPER
€ 4.50
25
5118146190
ref: 25
09280-18004
O-RING,FORK INNER TUBE
€ 5.50
26
5135146190
ref: 26
CAP
€ 15.00
27
5141048130
ref: 27
51410-48131
STEM,STEERING
€ 107.50
28
5162133001
ref: 28
RACE,STEERING OUTER LWR
€ 10.00
29
5153048300291
ref: 29
BRACKET,HEADLAMP,RIGHT
€ 10.00
30
5154048300291
ref: 30
BRACKET,HEADLAMP,LEFT
€ 10.00
31
5155346100
ref: 31
CUSHION
€ 7.50
32
5131148300291
ref: 32
HEAD,STEERING STEM
€ 26.00
33
5135607030
ref: 33
51356-46030
WASHER
€ 5.00
34-1
5135246100
ref: 34-1
51352-46101
BOLT,STEERING STEM HEAD
€ 5.50
34-2
5135246101
ref: 34-2
BOLT
€ 5.50
35
5621127200291
ref: 35
HOLDER,HANDLE UPR
€ 13.50
36
0110708558
ref: 36
01500-08557
BOLT 8X55
€ 3.00
37
0110712358
ref: 37
BOLT
€ 3.50
38
0832121128
ref: 38
08321-01127
WASHER,LOCK 12
€ 2.50
39
5145536030
ref: 39
CLIP
€ 5.50
40
0211206128
ref: 40
02112-06127
SCREW 6X12
€ 2.00
41
0832121068
ref: 41
08321-01067
LOCK WASHER
€ 2.50
42
5145246100
ref: 42
CLIP
€ 3.00
43
0832221068
ref: 43
08322-01067
WASHER
€ 2.00
