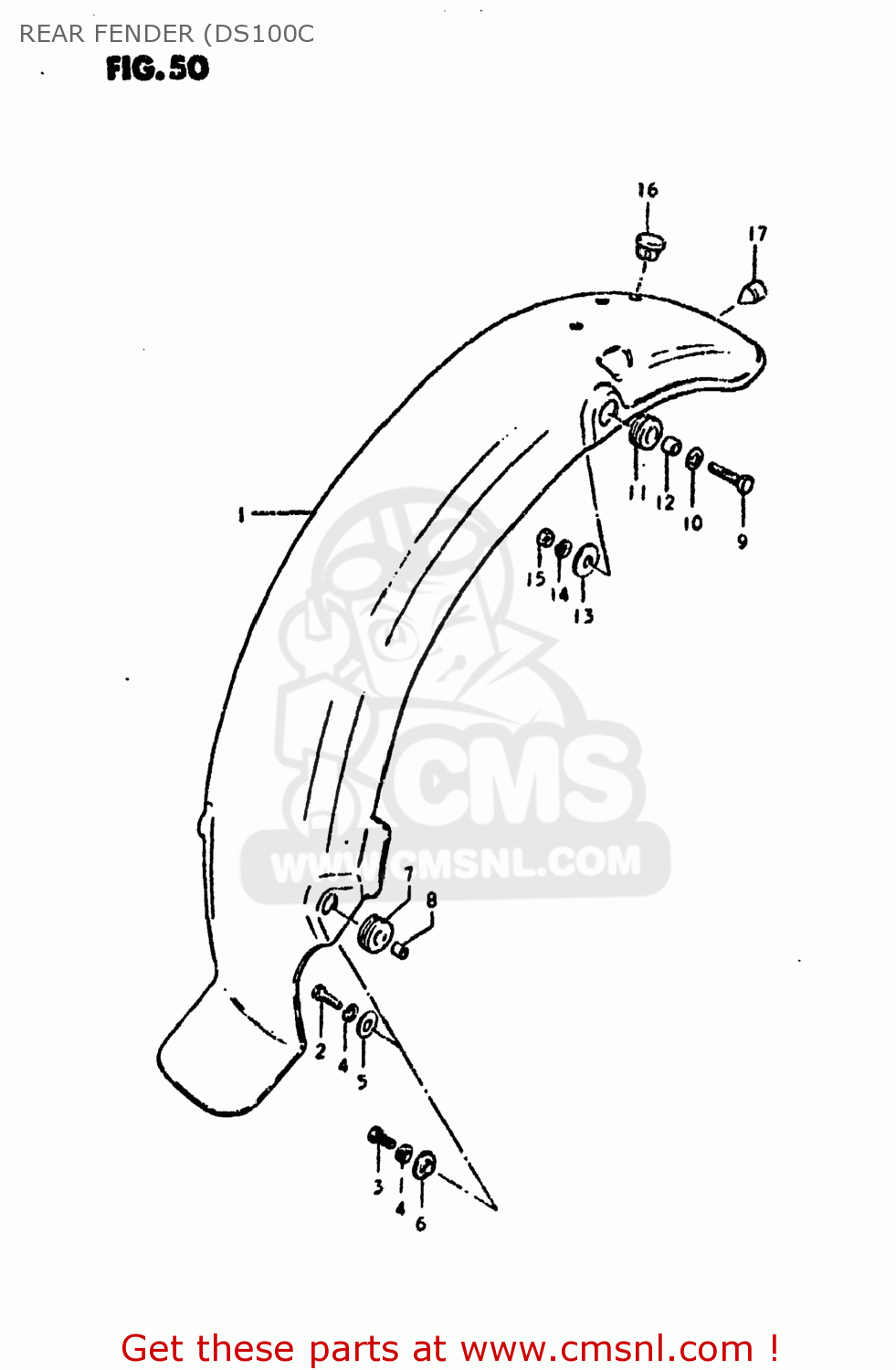

REAR FENDER (DS100C

ref

part #

description

quantity

1-1

631114820105M
ref: 1-1
63111-48602-13L

FENDER,REAR

€ 95.50

1-2

631114820205M
ref: 1-2
63111-48602-13L

FENDER,REAR

€ 95.50

1-3

631114820300B
ref: 1-3
63111-48602-13L

FENDER,REAR

€ 95.50

2

0110706208
ref: 2
01500-06207

BOLT

€ 2.00

3

0110706168
ref: 3
01500-06167

BOLT, UPPER

€ 3.00

4

0832121068
ref: 4
08321-01067

LOCK WASHER

€ 2.50

5

0916006027
ref: 5
09160-06077

WASHER (6.5X20X1.2)

€ 2.00

6

0916906010
ref: 6

WASHER

€ 3.00

7

0932008001
ref: 7

CUSHION

€ 3.50

8

0918006027
ref: 8
09180-06258

SPACER (6.3X9.1X6.7)

€ 3.00

9

0110708308
ref: 9
01500-08307

BOLT (8X30)

€ 2.50

10

0832211088
ref: 10
08322-01087

WASHER

€ 2.00

11

0932012011
ref: 11

CUSHION

€ 3.00

12

0918008021
ref: 12
09180-08188

SPACER (8.2X12X7.5)

€ 3.00

13

0916008032
ref: 13

WASHER(8.5X26X1.2)

€ 3.50

14

0832121088
ref: 14
08321-01087

LOCK WASHER

€ 2.00

15

0831012088
ref: 15
08310-00087

NUT

€ 2.00

16

0932108008
ref: 16

CUSHION

€ 2.50

17

0932106013
ref: 17

CUSHION

€ 2.50
