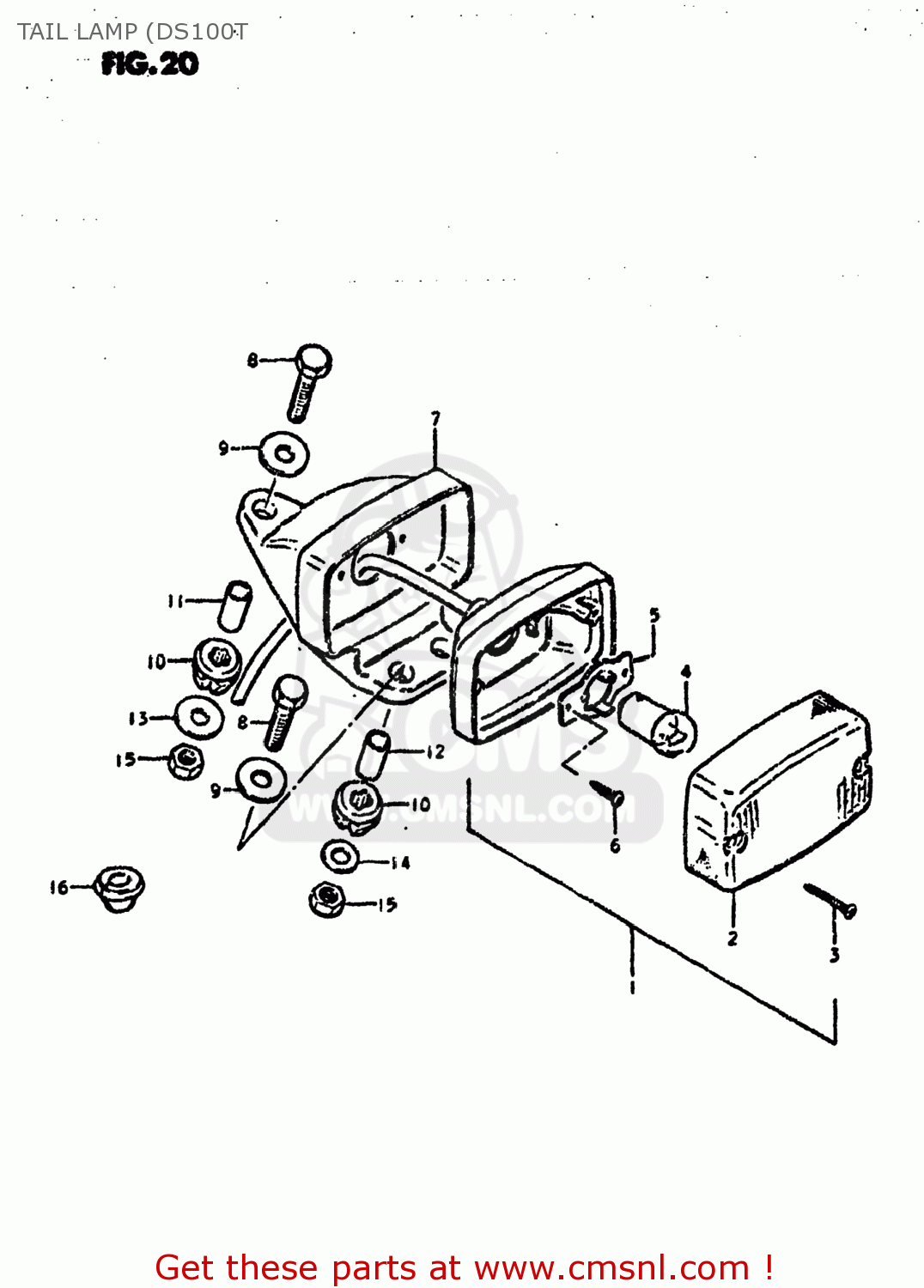

TAIL LAMP (DS100T

ref

part #

description

quantity

1

3572030410
ref: 1

LAMP UNIT,TAIL

€ 26.50

2

3571230410
ref: 2

LENS

€ 15.50

3

3562335300
ref: 3

SCREW

€ 2.00

4

0947106049
ref: 4

BULB(6V5W,TOKAI DENSO)

€ 3.50

5

3561635300
ref: 5

PLATE,TURN SIGNAL

€ 0.00

6

3562335600
ref: 6
03211-03166

SCREW

€ 1.50

7-1

3572630410
ref: 7-1
35726-30411

BRACKET,REAR COMBINATION LAMP

€ 27.50

7-2

3572630411
ref: 7-2

BRACKET

€ 27.50

8

0110706308
ref: 8
01500-06307

BOLT

€ 2.50

9

0916006027
ref: 9
09160-06077

WASHER (6.5X20X1.2)

€ 2.00

10

0932009010
ref: 10

CUSHION

€ 2.50

11-1

0918006072
ref: 11-1
09180-06271

SPACER

€ 2.00

11-2

0918006091
ref: 11-2
09180-06273

SPACER (6.4X9X21.5)

€ 5.50

12

0918006072
ref: 12
09180-06271

SPACER

€ 2.00

13-1

0916006027
ref: 13-1
09160-06077

WASHER (6.5X20X1.2)

€ 2.00

13-2

0916006060
ref: 13-2
09160-06077

WASHER

€ 2.00

14

0832221068
ref: 14
08322-01067

WASHER

€ 2.00

15

0831011068
ref: 15
08310-00067

NUT

€ 2.50

16

0930807004
ref: 16

GROMMET

€ 2.50
