FRONT FORK (DS185N)
DS185 1980 (T) USA (E03)

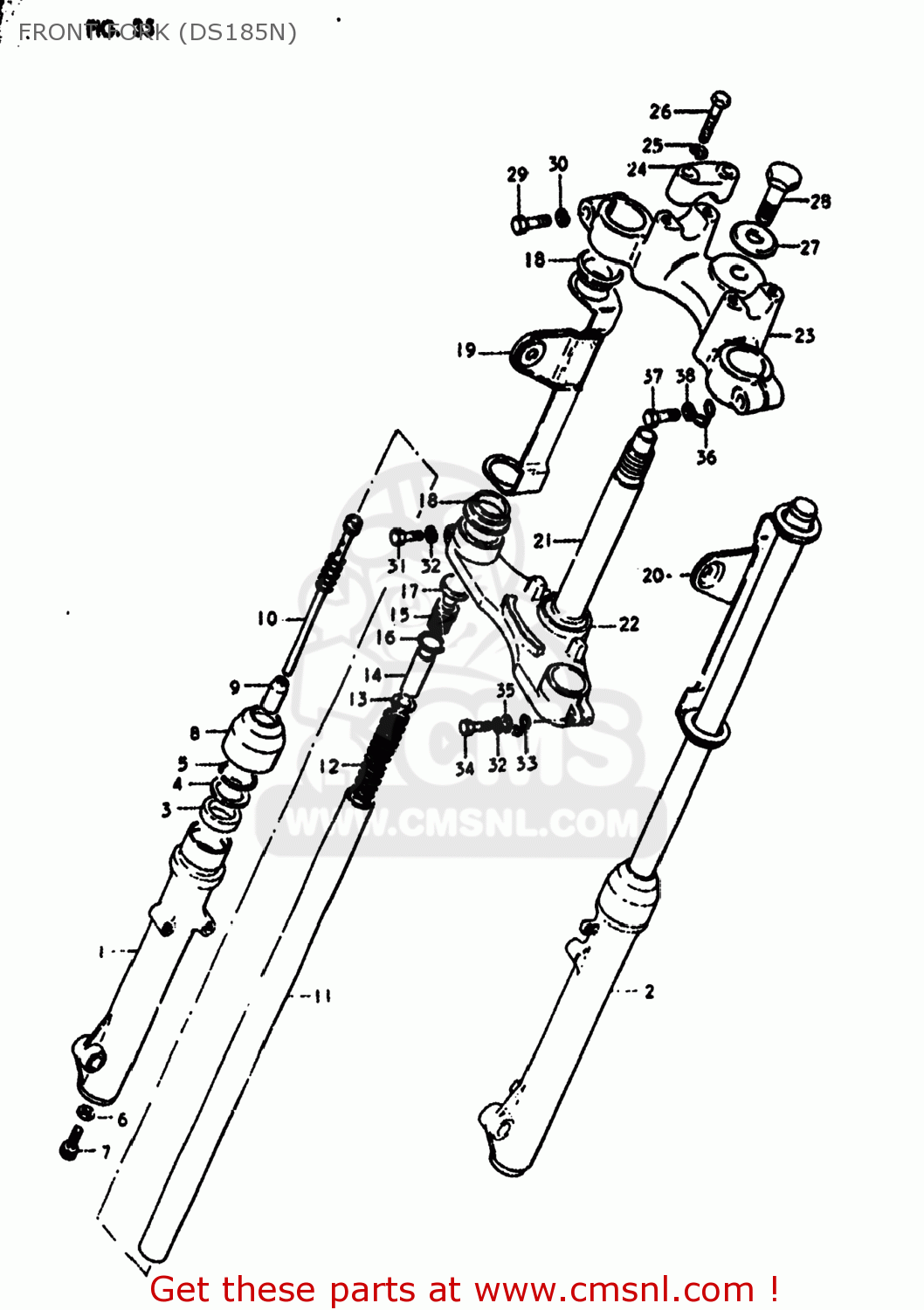

Front fork (ds185n) diagram DS185 1980 (T) USA (E03)
FRONT FORK (DS185N) DS185 1980 (T) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
0
5110029410291
ref: 0
DAMPER SET
€ 178.00
1
5113029410291
ref: 1
TUBE,FORK,OUTER,RIGHT
€ 41.50
2
5114029410291
ref: 2
TUBE,OUTER,LEFT
€ 44.00
3
5115311300
ref: 3
51153-05300
OIL SEAL,FRONT FORK
€ 9.00
4
5115841603
ref: 4
WASHER
€ 5.00
5
5115641603
ref: 5
RING,SNAP
€ 7.50
6
5114841310
ref: 6
GASKET (NAS)
€ 2.50
7
5114716510
ref: 7
BOLT,FORK CYLINDER(10X25)
€ 3.50
8
5117341603
ref: 8
SEAL,DUST
€ 6.00
9
5119536220
ref: 9
PIECE,OIL LOCK
€ 11.50
10
5114629330
ref: 10
CYLINDER,FRONT FORK
€ 26.00
11
5111029330
ref: 11
TUBE,FORK,INNER
€ 0.00
12
5117129330
ref: 12
SPRING
€ 0.00
13
5117218630
ref: 13
GUIDE,SPRING COVER
€ 5.50
14
5117629010
ref: 14
SPACER,SPRING
€ 0.00
15
5135129320
ref: 15
CAP
€ 13.50
16
5118125010
ref: 16
51181-29400
O-RING,FORK INNER TUBE
€ 2.50
17
5118929330
ref: 17
51189-29400
CAP,FRONT FORK
€ 7.00
18
5155311300
ref: 18
CUSHION,HEADLAMP BRACKET
€ 3.50
19
5153029410291
ref: 19
BRACKET,HEADLAMP HOUSING
€ 15.00
20
5154029410291
ref: 20
BRACKET,HEADLAMP,LEFT
€ 15.00
21
5141029330019
ref: 21
STEM,STEERING
€ 55.50
22
5162133001
ref: 22
RACE,STEERING OUTER LWR
€ 10.00
23
5131129330291
ref: 23
HEAD,STEERING STEM
€ 35.50
24
5621129320291
ref: 24
HOLDER,HANDLE(BLACK)
€ 12.00
25
0832121088
ref: 25
08321-01087
LOCK WASHER
€ 2.00
26
0110708358
ref: 26
01500-0835B
BOLT
€ 3.50
27
5135622012
ref: 27
WASHER,STEM HEAD(10.5X30X3.2)
€ 4.00
28
5135120010
ref: 28
51351-29400
BOLT,FORK INNER TUBE
€ 25.00
29
5145129400
ref: 29
51451-27431
BOLT,FORK INNER TUBE F
€ 4.50
30
0832121108
ref: 30
08321-01107
LOCK WASHER
€ 2.00
31
0110412408
ref: 31
01500-12403
BOLT
€ 3.00
32
0832121128
ref: 32
08321-01127
WASHER,LOCK 12
€ 2.50
33
5145530540
ref: 33
CLIP
€ 5.50
34
0110712458
ref: 34
01500-12457
BOLT 12X45
€ 5.50
35
0832211128
ref: 35
08322-01127
WASHER
€ 2.00
36
5145529330
ref: 36
CLIP
€ 5.50
37
0110710408
ref: 37
01500-10407
BOLT 10X40
€ 3.00
38
0916012006
ref: 38
09160-12089
WASHER
€ 2.00
